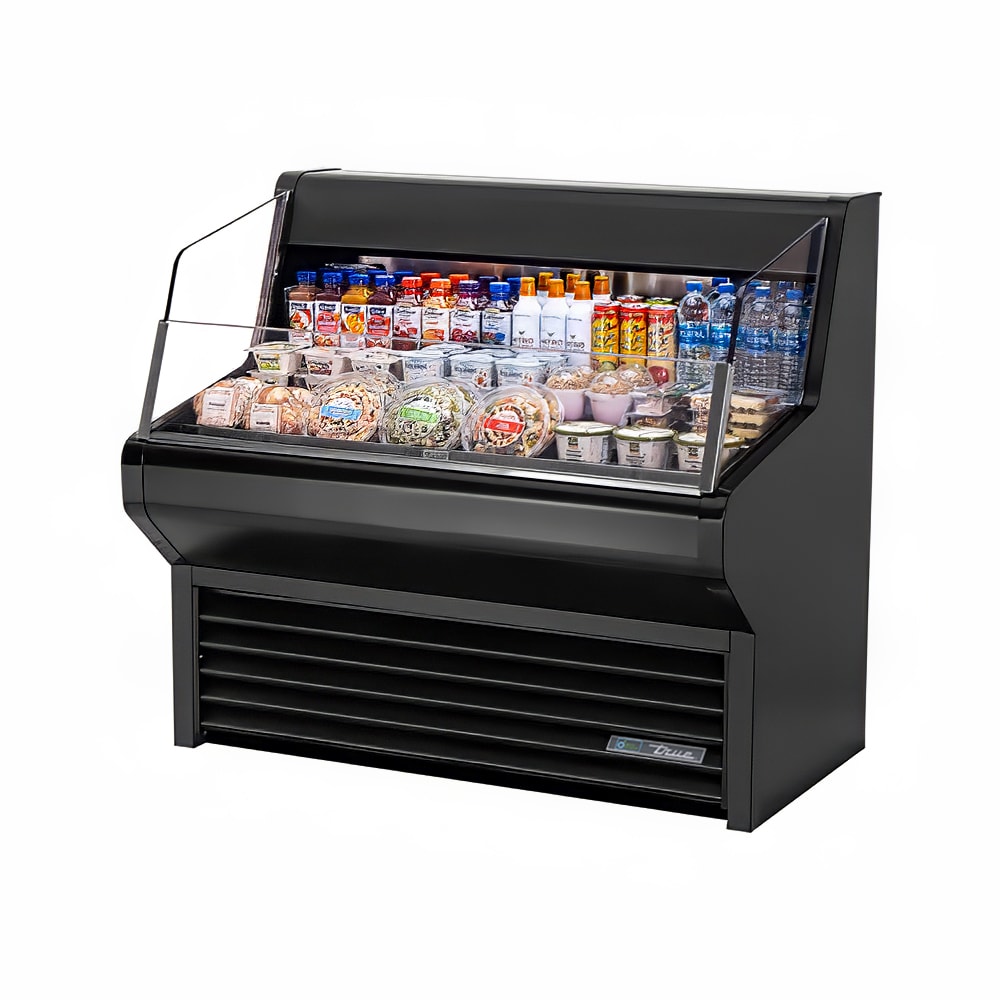

The True THAC-48 horizontal open air merchandiser has a white aluminum interior liner and a stainless steel floor with three tiers, allowing for a variety of display options. The black powder-coated steel exterior will not peel or chip and is durable for commercial applications. A polyurethane insulation called Ecomate is foamed in place to retain cold air. Fluorescent lighting brightens the interior and ensures products can be seen.
Without a door, products stay in the food safety zone thanks to an air curtain created by the evaporator fan motors' low-velocity, high-volume airflow. It creates a circle that runs over the products from the back to the front of the cabinet. When you grab products from the merchandiser, the air curtain disrupts but will recover temperature quickly thanks to the evaporator fan motors. Temperatures are held in a range from 35 to 40 degrees Fahrenheit and are maintained with R-134A refrigerant.
If the unit is installed near HVAC vents, fans, or doorways, the air curtain will be disrupted; the unit should also not be placed in direct sunlight. The True THAC-48 BLK horizontal open air merchandiser runs most efficiently when it is fully loaded with product. This refrigeration unit is designed to operate in an environment that does not exceed 75 degrees Fahrenheit ambient temperature or 55 percent relative humidity.
- Self-contained capillary tube system uses R-134A refrigerant to maintain cool temperatures
- Time-initiated, time-terminated cycle defrost system ensures the unit runs properly
- 35-40 degree F temperature range
- Cast-iron, self-lubricating evaporator fan motors and large blades provide a high-volume airflow, colder temperatures, and faster temperature recovery
- Refrigeration system slides out for easy maintenance and cleaning
- Condenser fan motors reverse during the defrost cycles to prevent debris from building up on the condenser coils
- 115 V/60 Hz/1 ph, 1⁄2 HP, 10.4 A, 6.5-ft. cord with a NEMA 5-15 plug
- Overall Dimensions: 481⁄8 in. W x 301⁄8 in. D x 433⁄8 in. H
- cULus and UL-EPH listed
- Black, non-peeling, powder-coated steel is durable
- White aluminum interior liner with stainless steel floor
- Ecomate, a polyurethane insulation, is foamed in place to retain cold air
- 3 display tiers for a variety of merchandising options
- Fluorescent lighting is safety shielded
- Runs most efficiently when fully loaded with products
- Air curtain will be compromised if installed near HVAC vents, fans, and doorways
- Designed to operate in environments where the relative humidity does not rise above 55 percent and ambient temperatures do not exceed 75 degrees F
Horizontal Air Curtain Merchandiser, 48"L, 43-3/8"H, (3) level tiered stainless steel floor, white steel exterior, white aluminum interior, deck pans, fluorescent interior lighting, leg levelers, self-contained refrigeration, 1/2 HP, 115v/60/1, 10.4 amps, 6.5' cord, NEMA 5-15P, MADE IN USA
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
True Refrigeration THAC-48 SpecificationsPDF Spec Sheet
|Also Known As||THAC48, THAC-48, TRUTHAC48, TRUE THAC-48, 890THAC48|
|Compressor Type||Self Contained|
|Number of Levels||3|
|Specialty Options||Glass Sides|
|Warranty||3 year parts & labor; 5 year compressor|
|Width (in) Range||41 - 60 in|
