True TDM-R-36-GE/GE-S-W 36 1/4" Full Service Bakery Case w/ Curved Glass - (4) Levels, 115v

A self-contained capillary tube system meters R290 hydrocarbon refrigerant to cool the True TDM-R-36-GE/GE-S-W full-service bakery case. Its high-capacity, factory-balanced refrigeration system operates at a set temperature range from 33 to 41 degrees Fahrenheit. Condenser fan motors reverse to prevent dirt from gathering on the condenser coil, and the condensing unit can be pulled out for servicing and cleaning.

The exterior of the True TDM-R-36-GE/GE-S-W full-service bakery case is made of stainless steel that resists rusting, denting, and scratching, and its white powder-coated, cold-rolled steel interior is insulated with foamed-in-place polyurethane to retain cool air. Adjustable, PVC-coated shelves can support 150 pounds each, and the case can hold two 18-inch by 26-inch pans, two 9-inch by 26-inch pans, and four 12-inch by 18-inch pans. The single-pane, curved front glass opens for access to product, while the two rear glass doors slide open and close.

Product Details

• Strong stainless steel exterior
• White powder-coated, cold-rolled steel interior resists corrosion
• Foamed-in-place polyurethane insulation retains cold air
• 3 adjustable, PVC-coated wire shelves support 150 lbs. each
• Holds (2) 18-in. x 26-in., (2) 9-in. x 26-in., and (4) 12-in. x 18-in. display pans
• Single-pane, curved glass front opens for product access
• Visibility enabled by single-pane glass side panels
• 2 rear glass, sliding doors
• Corrosion-resistant steel frame rail with leg levelers
• LED lighting brightens interior

Refrigeration System

• Capillary tube system is self-contained and uses R290 hydrocarbon refrigerant
• Temperature holding range: 33-41 degrees F
• Condensing unit can be pulled out for maintenance
• Reversing condenser fan motors prevent debris from settling on condenser coils

Dimensions & Utilities

• 36¹⁄₄ in. W x 39 in. D x 49¹⁄₈ in. H
• 10 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

From The Manufacturer

Display Merchandiser, refrigerated, 36-1/4"W, self-contained refrigeration, curved glass front, glass sides, (2) rear sliding glass doors, (3) tiered levels of adjustable white PVC coated wire shelves, LED interior lighting, stainless steel exterior, white powder coated interior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 10.0 amps, NEMA 5-15P, CE, cULus, UL EPH Classified

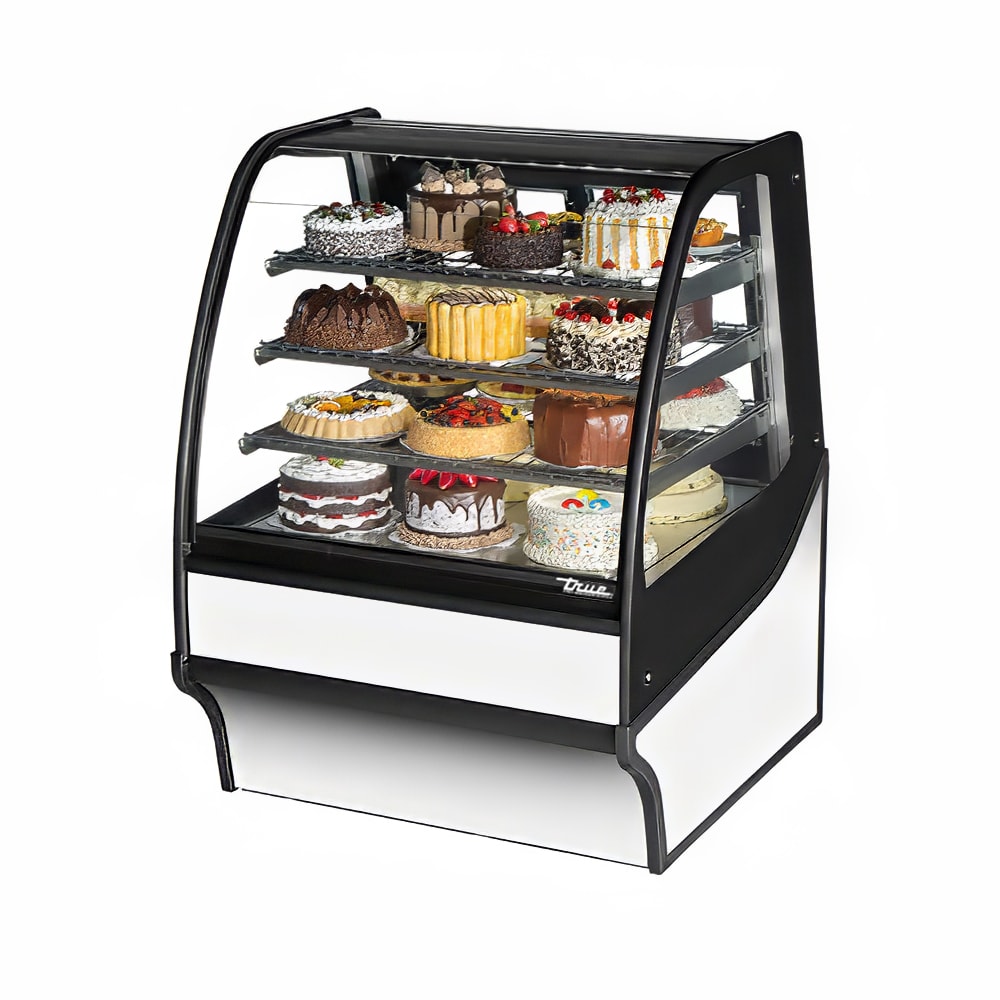

*Image may not depict product color, inclusions or accessories.

True Refrigeration TDM-R-36-GE/GE-S-W Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Access	Full Service
Color	Silver
Depth (in)	39
Design	Curved
Door Type	Sliding
Height (in)	49.13
Hertz	60
Number of Levels	4
Refrigeration Type	Refrigerated
Shelving Type	Wire
Warranty	6-year Parts; 5-year Labor; 7-year Compressor Parts
Width (in)	36.25
Refrigerant	R290 (Hydrocarbon)
Phase	1
Product	Bakery Display Cases
Product Type	Commercial Refrigeration
Weight	660.00
