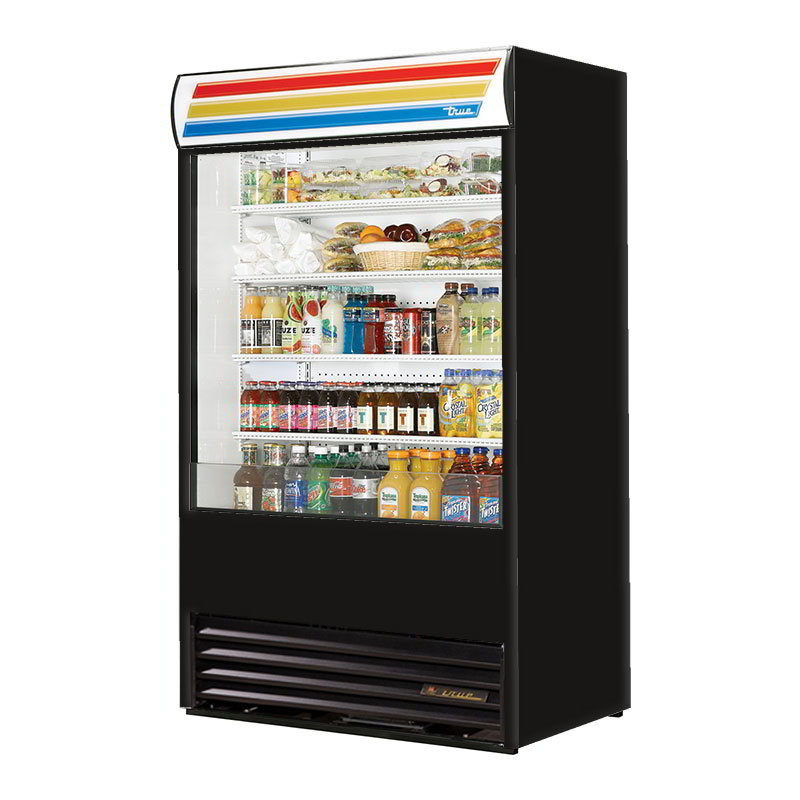

True TAC-48-LD 48" Vertical Open Air Cooler w/ (5) Levels, Black, 208 230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 598-TAC48BK • MPN: TAC-48-LD BLK
Ships Free

Typically ships within 4 - 8 business days

Need it quicker? Call us today! 800-541-8683
(0 reviews)Write a Review

Image may not depict product color, inclusions or accessories.

True Refrigeration TAC-48-LD Description

True Refrigeration

The True TAC-48-LD BLK open air merchandiser has a bottom-mounted refrigeration system that is easily accessible for cleaning and service. The defrost system on this unit is time initiated and time terminated to ensure it runs properly. The temperature ranges from 35 to 40 degrees Fahrenheit and is maintained by R-404A refrigerant. Self-lubricated evaporator fan motors create a curtain of air that runs over products to keep them cold. The products sit on four white shelves that are adjustable in increments of 12 an inch.

The black vinyl front and sides are durable, along with the aluminum back. The lower front panel on the cabinet is made from Plexiglas, which is sturdy, so products in the bottom can easily be seen. The black, powder-coated steel frame rail is durable and corrosion resistant. The interior is made from stainless steel for durability and ease of cleaning. The interior back wall is perforated for better air flow. The True TAC-48-LD BLK open air merchandiser has foamed-in-place polyurethane insulation to keep cold air in the cabinet and provide structure.

Product Details

  • 4 white shelves are adjustable in 12-in. increments to accommodate products' various heights
  • LED lights make products visible
  • Exterior sign panel lights up to grab customers' attention
  • Bottom-mounted refrigeration system is easily accessible for service
  • 35-40 degrees F temperature range
  • R-404A refrigerant maintains cool temperatures
  • Time-initiated and time-terminated defrost system
  • Cast iron, self-lubricating evaporator fan motors
  • Debris and dirt stays off the condenser coils because the reversing condenser fan motors change directions during the defrost off cycles
  • 208-230 V/60 Hz/1 ph, 1HP, 12 A, 6.5-ft. cord with a NEMA 6-20R plug
  • Overall Dimensions: 48 in. W x 3018 in. D x 8058 in. H
  • cULus, CE, and UL-EPH listed

Cabinet Construction

  • Black vinyl front and sides on the exterior with an aluminum back
  • Products are fully visible since the lower front panel is made from Plexiglas
  • Corrosion-resistant, black powder-coated steel frame rail is durable
  • Stainless steel floor and deck pans and white aluminum interior liner
  • Perforated interior back wall provides more efficient airflow
  • Cold air is kept in the cabinet with foamed-in-place polyurethane insulation

Recommended Operating Conditions

  • Designed for environments that do not exceed 75 degrees F ambient temperature or 55 percent relative humidity
  • Do not install near doorways, fans, or HVAC vents where the air curtain may be disrupted
  • Do not install in direct sunlight
  • Fully-loaded cabinet runs more efficiently
  • Merchandiser runs louder than many other merchandising units, so it may not be appropriate in applications where noise should be kept to a minimum

Vertical Air Curtain Merchandiser, 48"L, 80-5/8"H, (4) white PVC-coated shelves, vinyl exterior, white aluminum interior with stainless steel floor/deck pans, LED interior lighting, leg levelers, 1 HP, 208-230v/60/1-ph, 12.0 amps, NEMA 6-15P, 6.5' cord, cULus, CE, UL EPH Classified, MADE IN USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

True Refrigeration TAC-48-LD Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Color Black
Compressor Type Self Contained
Design Vertical
Height (in) 81
Number of Levels 5
Specialty Options LED Lighting
Specialty Options Lit Signage Area
Warranty 3 year parts & labor; 5 year compressor
Width (in) 48
Also Known As TAC-48
Width (in) Range 41 - 60 in
Phase 1
Hertz 60
Voltage 208/230
Product Type Refrigerators & Freezers
Product Open Air Cooler
Weight 540.00
True TAC-48-LD Certifications
  • UL
  • NSF
