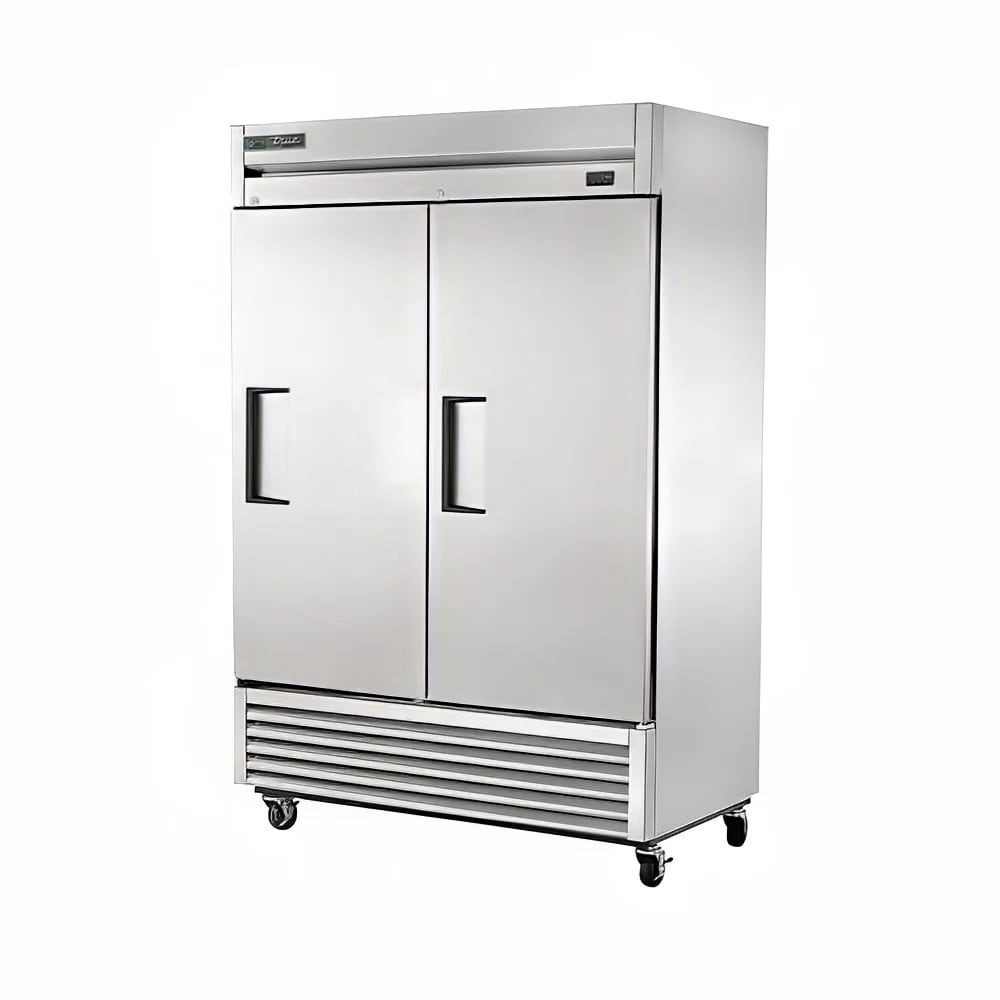

True T-49F-HC 54 1/8" T Series Two Section Reach In Freezer, (2) Right Hinge Solid Doors, 115v

Because the True T-49F-HC RR two-section reach-in freezer features a bottom-mounted condenser, it's simple to install in compatible locations and eases maintenance and cleaning. For containing cold-temperature products, such as ice cream or pre-packaged meals, this unit consistently maintains a temperature of -10 degrees Fahrenheit. Its capillary tube system uses R290 hydrocarbon refrigerant for environmentally friendly operation, and to reduce energy consumption and heat expenditure, the condenser's and evaporator's fan motors are electrically powered. A time-initiated defrost cycle reduces frost accumulation on integral internal parts and gears.

The True T-49F-HC RR two-section reach-in freezer flaunts a two-section, reach-in design that measures 54¹/₈ inches wide by 29¹/₂ inches deep by 83³/₈ inches high. The interior can fit six PVC-coated 24⁹/₁₆-inch-long by 22³/₈-inch-deep shelves that can be adjusted in ¹/₂-inch increments for flexibility in product it can support. To lock in cold air, two stainless steel doors fit the unit's structure, and their torsion-type closure system ensure a secure hold. Interior lighting keeps the cabinet well illuminated during stocking.

Product Details

• Part of the T Series
• Reach-in design with 2 sections
• 6 PVC-coated adjustable wire shelves divide interior
• 2 stainless steel doors
• Interior lighting highlight product
• Stainless steel front and aluminum sides
• Aluminum interior sides with stainless steel floors
• 4-in. castors

Refrigeration Details

• Bottom-mounted condensing unit
• Self-contained capillary tubing system using R290 hydrocarbon refrigerant
• Maintains -10-degree-F temperature
• Condenser and evaporator fan motors powered electronically
• Time-initiated, temperature-activated defrost system

Dimensions & Utilities

• Shelves: 24⁹/₁₆ in. L x 22³/₈ in. D
• Overall: 54¹/₈ in. W x 29¹/₂ in. D x 83³/₈ in. H
• 9.6 A, 1 HP
• 115 V/60 Hz/1 ph, with 9-ft. NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration T-49F-HC within the 48 contiguous states.

From The Manufacturer

Freezer, reach-in, two-section, -10°F, (2) stainless steel doors, (6) PVC coated adjustable wire shelves, interior lighting, stainless steel front, aluminum sides, aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1 HP, 115v/60/1-ph, 9.6 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration T-49F-HC Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.

Documents

Spec Sheet

Warranty

Installation Guide
