True T-23G 27" Single Section Reach-In Refrigerator, (1) Glass Door, 115v

KaTom #: 598-T23G • MPN: T-23G-LD

This item is no longer available

(0 reviews)Write a Review

Due to manufacturer requirements, to get the best possible price, just contact us and we will send it to you immediately.

True Refrigeration T-23G Description

The True T-23G-LD reach-in refrigerator has a double-pane thermal glass door that lets you easily see products without having to open the door. The LED interior lights help make products easier to see and are safety shielded to prevent damage. Three PVC-coated wire shelves hold these products and are adjustable in 12-inch increments to accommodate varying product sizes. Cold air is kept from leaking out of the cabinet with the magnetic door gaskets.

The temperature ranges from 33 to 38 degrees Fahrenheit and is maintained with R-134A refrigerant through the capillary tube system. When you open then close the door, the evaporator fan motor and blades create a unique airflow that quickly recovers the temperature inside the cabinet. The refrigeration system is easy to maintenance since it is mounted on the bottom of the True T-23G-LD reach-in refrigerator. This unit is perfect for kitchens that are hot since the system is close to the ground where the coolest air is.

Product Details

  • 3 PVC-coated shelves are adjustable in 12-in. increments
  • LED interior lights make seeing products easier
  • Evaporator is epoxy-coated to resist corrosion
  • Self-contained capillary tube system uses R-134A refrigerant that maintains cool temperatures
  • 33-38 degree F temperature range
  • Oversized and factory-balanced condenser, compressor, and evaporator ensure temperature stability
  • Cast-iron evaporator fan motor is sealed and self-lubricating
  • High-volume airflow creates faster temperature recovery
  • Refrigeration system is mounted on the bottom of the unit and is ideal for hot kitchens
  • 115 V/60 Hz/1 ph, 13 HP, 7.9 A, 9-ft. cord with a NEMA 5-15 plug

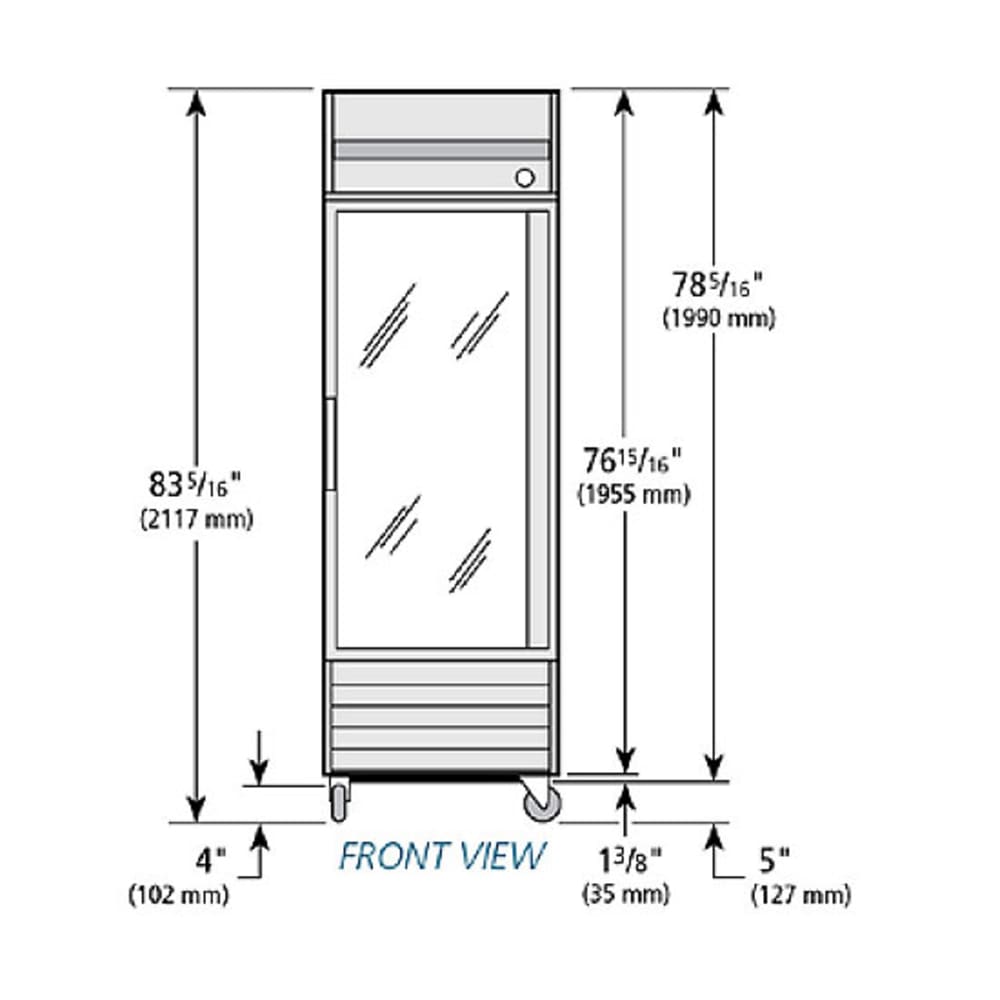

  • Overall Dimensions: 27 in. W x 2934 in. D x 7838 in. H
  • CE, cULus, and UL-EPH listed

Cabinet Construction

  • Stainless steel and aluminum exterior is corrosion resistant
  • Stainless steel interior floor has coved corners that make cleaning simple
  • Polyurethane insulation is foamed-in-place to retain cold air
  • Heavy duty steel frame rail is black powder-coated for durability
  • 4-in-dia. castors with locks
  • Thermal glass door makes it easy to see products without opening it
  • 15-in. extruded aluminum handle makes opening the door easier
  • Heavy duty hinges are lifetime guaranteed
  • Cold air leaks are prevented with the magnetic door gasket

In January 2015, True began shipping this product with a clear-coated aluminum interior and gray, PVC-coated shelves. The company will continue to offer white PVC-coated shelves to customers who need replacements for several years. For more information, call KaTom at 1-800-541-8683.

Refrigerator, Reach-in, one-section, glass door, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, (3) adjustable PVC-coated wire shelves, LED interior lighting, 4" castors, 1/3 HP, 115v/60/1, 7.9 amps, 9' cord, NEMA 5-15P, cULus, UL EPH Classified, CE, MADE IN USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

True Refrigeration T-23G Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Also Known As T23G, TRUT23G, 890T23G, 675-072, T23G, TRUE T-23G, T-23G, TM-24G, T-23G-LD
Compressor Location Bottom Mount
Cubic Feet 23
Door Type Glass
Evaporator Type Capillary Tube
Interior Material Aluminum
Sections 1
Supports Casters
Thermometer Type Dial
Voltage 115/60/1
Warranty 3 year parts & labor; 5 year compressor
Width (in) 27
Doors Half
Specialty Options Half Doors
Weight 295.00
True T-23G Certifications
  • UL
  • NSF
