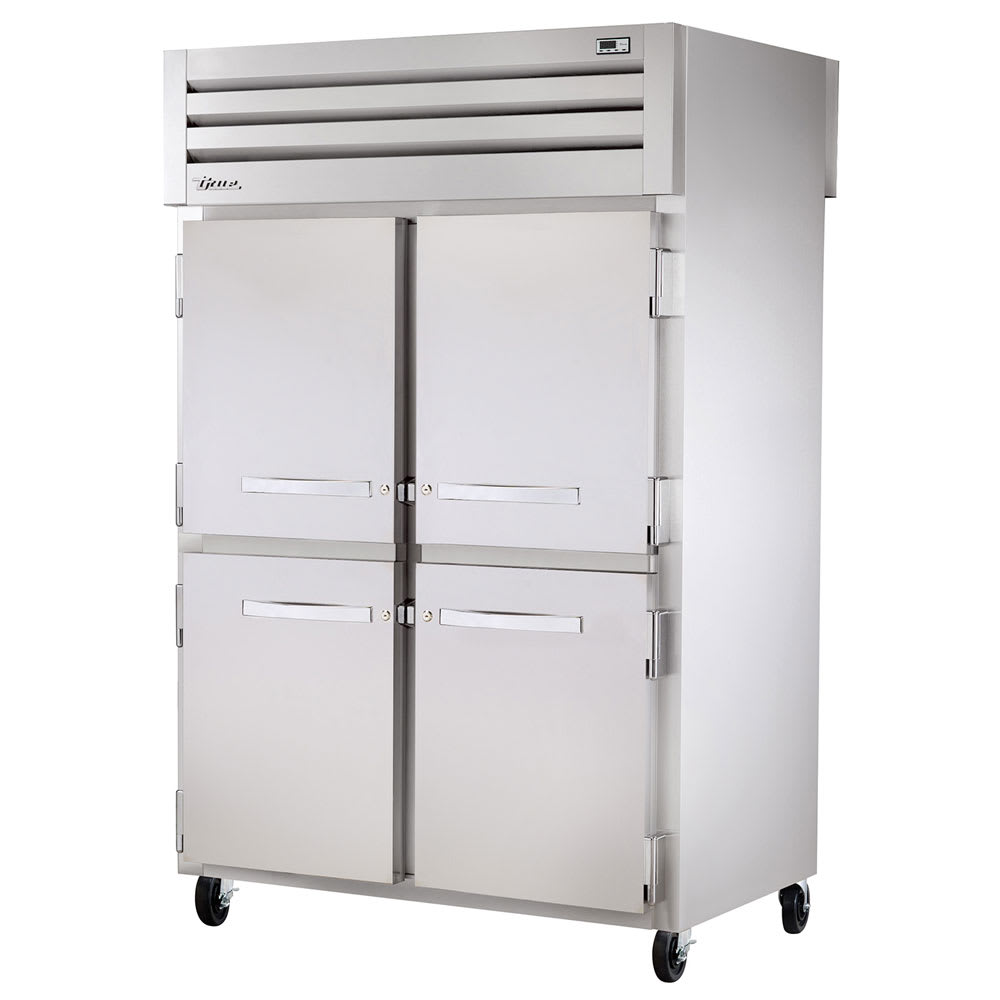

True STG2DT-4HS 52 5/8" SPEC SERIES® Two Section Commercial Combo Refrigerator Freezer - Solid Doors, Dual Temp, 115

The True STG2DT-4HS two-section refrigerator freezer's sides and interior back are aluminum, while the floor, ceiling, and doors are stainless steel. To retain temperatures, its walls are foamed with Ecomate, which is a polyurethane insulation. It has 5-inch-diameter castors with a locking front set for stability. Products can be stored on the three PVC-coated wire shelves, and the interior is brightly lit with LED lights. There are two external digital displays that show the internal temperatures for the refrigerator and freezer.

To consistently circulate air, this dual-temperature refrigerator freezer has electronically commutated condenser and evaporator fan motors. The refrigerator section is on the left, uses R134A refrigerant, and holds temperatures ranging between 33 and 38 degrees Fahrenheit. The freezer section is on the right, uses R404A refrigerant, and maintains -10 degrees Fahrenheit. The freezer has an automatic defrost cycle that starts at a set time and stops when a specific temperature is reached. Its refrigeration system is top mounted to keep away from dirt and debris.

This True STG2DT-4HS refrigerator freezer has four Dutch doors that are made of stainless steel and have magnetic gaskets that snap into the frame to prevent cold air from seeping out. Metal handles provide a sturdy grip when opening and bolt locks minimize theft. To prevent cold air from escaping, the doors close on their own, but can stay open at 120 degrees to help with loading and unloading. The doors stay attached to the cabinet with four cam lift hinges.

Product Details

• Exterior aluminum sides match the doors
• Interior back and side walls are aluminum while floor and ceiling are stainless steel
• Insulated with Ecomate, a polyurethane foam
• 5-in.-dia. castors with locking front set
• 3 PVC-coated wire shelves per section support product
• LED lighting brightens interior
• 2 exterior digital displays show temperatures for freezer and refrigerator

Refrigeration System

• Left refrigerator section temperature holding range: 33-38 degrees F
• Right freezer section operating temperature: -10 degrees F
• Refrigerator section uses R134A refrigerant
• Freezer section uses R404A refrigerant
• Evaporator and condenser fan motors are electronically commutated to reduce energy consumption and heat production while efficiently distributing air
• Freezer has an automatic defrost cycle that runs at a set time and stops when a certain temperature is reached
• Evaporator fan motor slows down during defrost cycle
• Mounted on top to keep evaporator away from food zone
• Epoxy-coated evaporator coil resists corrosion

4 Dutch Doors

• Constructed of stainless steel
• Magnetic gaskets are removable without tools and create an airtight seal
• Metal handles provide a comfortable grip
• Bolt-style locks prevent theft
• Close on their own
• Stay open past 120 degrees
• 4 cam lift hinges per section

Dimensions & Utilities

• 52⁵⁄₈ in. W x 35¹⁄₄ in. D x 84¹⁄₈ in. H
• 11.6 A, ¹⁄₂ HP freezer, ¹⁄₃ HP refrigerator
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug

*Free shipping on True Refrigeration STG2DT-4HS within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Refrigerator/Freezer, reach-in, two-section, (4) stainless steel half doors, locks, cam-lift hinges, digital temperature control, (6) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, R 1/3HP, F 1/2HP, 115v/60/1-ph, 11.6 amps, NEMA 5-20P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration STG2DT-4HS Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
