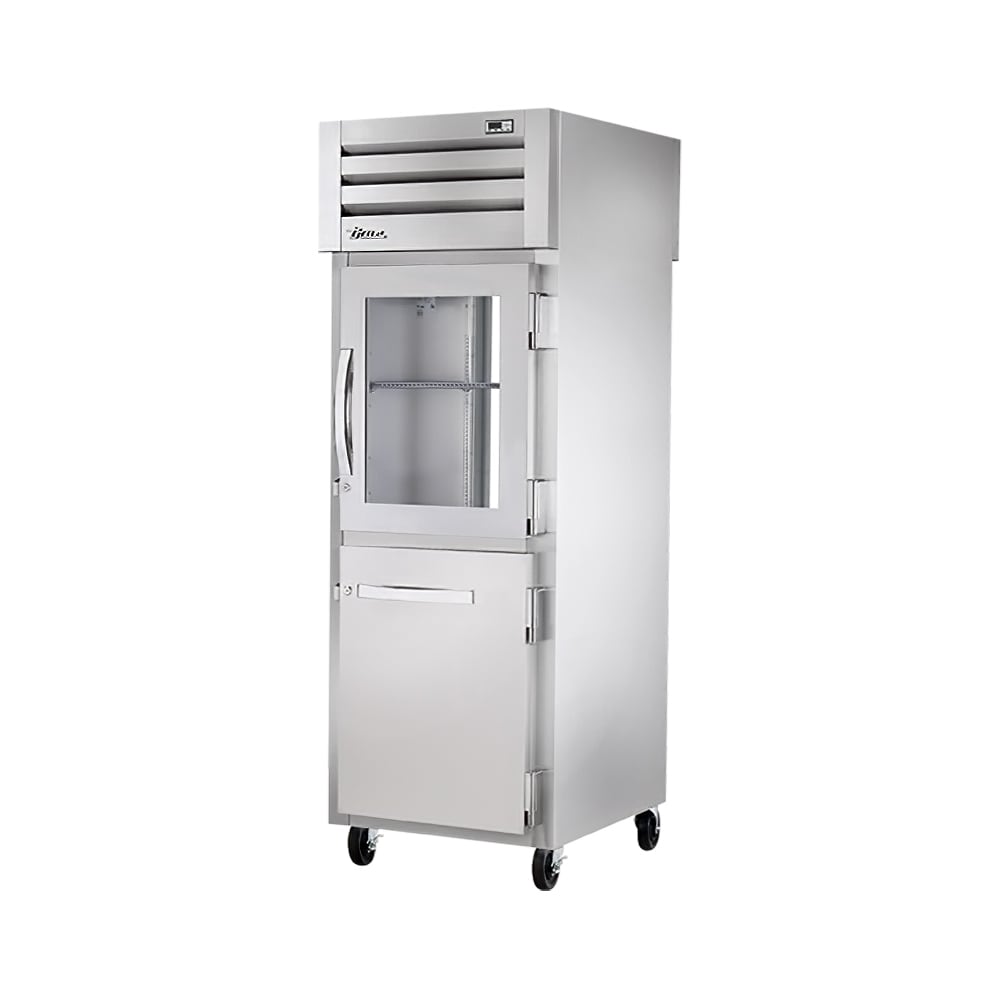

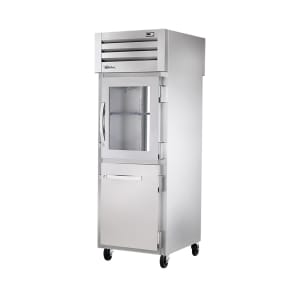

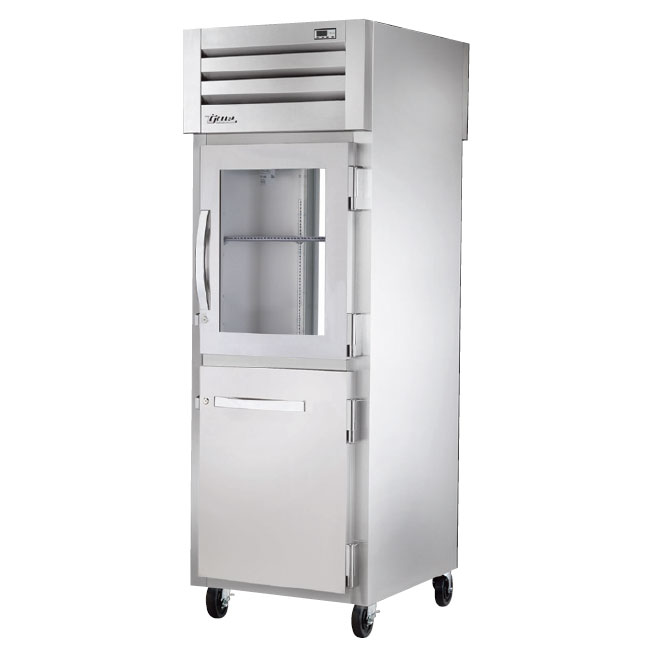

True STG1RPT-1HG/1HS-1G-HC 27 1/4" One Section Pass Thru Refrigerator, (2) Glass Doors, (1) Solid Door, Right Hinge, 115v

The True STG1RPT-1HG/1HS-1G-HC SPEC SERIES® one-section pass-thru refrigerator's front features a stainless steel half-door on the bottom and a thermal-insulated, double-pane half-door on top. A pass-thru design means the unit has doors on both the front and rear, with the rear full-size door constructed of thermal-insulated, double-pane glass. These doors stay open at a 120-degree angle, easing loading and unloading product. Its exterior is constructed of stainless steel on front with matching aluminum sides, while the interior has aluminum side walls and back with a stainless steel floor and ceiling. Polyurethane insulation is foamed in place to seal in cold air.

The True STG1RPT-1HG/1HS-1G-HC one-section pass-thru refrigerator is equipped with a top-mount refrigeration system. This system has a self-contained capillary tube system that uses R290 hydrocarbon refrigerant, which has zero ozone depletion potential. Evaporator and condenser fan motors push a more consistent airflow to produce less heat than other motors, and users can monitor the temperature using the external digital temperature display.

Engineered with self-cleaning, reversing technology, the compressor fan in this unit operates in reverse for 20 seconds when it starts up. This mechanism blows debris, dirt, and dust off the condenser coil to maintain cold and consistent storage temperatures while reducing energy consumption. Though it doesn’t replace routine preventative maintenance, this reversing technology improves refrigeration system efficiency and lengthens the lifespan of the unit.

Product Details

• Part of the SPEC SERIES
• Pass-thru construction
• Stainless steel front with aluminum sides
• Aluminum interior walls and back/li>
• Interior ceiling and floor constructed of stainless steel
• Polyurethane insulation traps cold air
• Double-pane, thermal-insulated glass door on front half-door and rear full door
• Bottom door constructed of durable stainless steel
• Doors stay open at 120 degrees
• Removable magnetic door gaskets seal doors to prevent cold air loss
• Bolt-style door lock reduces tampering with contents
• 3 PVC-coated wire shelves hold product
• LED interior lights illuminate product
• Digital temperature display on the unit exterior
• Evaporator is epoxy coated to eliminate corrosion

Refrigeration System

• Self-contained capillary tube system is top mounted
• Uses R290 hydrocarbon refrigerant
• Condenser and evaporator fan motors are electronically commutated to conserve energy
• Fan motor blows in reverse for 20 seconds upon start up to knock dust off condensing coil
• Evaporator is located out of the food zone for maximum capacity
• Temperature holding range: 33-38 degrees F

Dimensions & Utilities

• 27¹⁄₂ in. W x 39¹⁄₈ in. D x 84¹⁄₈ in. H
• 3.8 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration STG1RPT-1HG/1HS-1G-HC within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Refrigerator, pass-thru, one-section, (1) glass & (1) stainless steel half doors front, (1) glass door rear, locks, cam-lift hinges, digital temperature control, (3) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.8 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
