True STG1DTA-2HS-HC 27 1/2" SPEC SERIES® One Section Commercial Combo Refrigerator Freezer - Solid Doors, Dual Temp, 115

The True STG1DTA-2HS-HC refrigerator freezer's condenser is top mounted to increase storage space and maintain cooler temperatures than bottom-mounted refrigeration systems. It features two sections—a top-mounted freezer and refrigerated bottom—which have independent, self-contained capillary tube systems to distribute chill evenly. It uses R290 hydrocarbon refrigerant to minimize environmental impact, and for efficiently reducing energy consumption, the condenser and evaporator fans are electronically commutated. This evaporator is epoxy coated to withstand corrosion long term, and it's placed outside of the food zone to maximize storage space. An integral time-initiated and time-terminated defrost system automatically controls the development of ice buildup by delaying the evaporator fan in cyclical intervals.

To adequately chill produce and dairy products while freezing desserts, the bottom section generates temperatures between 33 and 38 degrees Fahrenheit, and the top cools to -10 degrees Fahrenheit; these temperatures can be monitored using the independent digital thermostats. Foamed-in-place polyurethane insulation lines the walls to maintain set temperatures and reduce energy consumption. Each section comes with three wire shelves finished with PVC coating to reduce corrosion risk. So staff can view the stored contents with ease, the interior is illuminated with LED lighting.

Designed to withstand rigorous use in busy kitchens, the True STG1DTA-2HS-HC refrigerator/freezer's doors, floor, and ceiling are constructed of stainless steel, and for enhanced corrosion resistance, the interior side walls and back are made of aluminum. Two solid doors are attached to the front with external cam-lift hinges, featuring heavy-duty metal handles and bolt-style door locks for after-hours security. These doors are self-closing to reduce thermal escape, and when extended access is required, they can be propped open at a 120-degree angle. One-piece door gaskets further seal in cold temperatures and can be removed for cleaning or replacement. Overall, this unit measures 27¹⁄₂ inches wide by 35¹⁄₄ inches deep by 84¹⁄₈ inches high. It's mounted on four plate castors to ease transportation as needed—two of these castors feature locking brakes to hold the unit in place.

Product Details

• Part of the SPEC SERIES
• 3 PVC-coated wire shelves in each section
• Freezer top with refrigerated bottom
• Stainless steel doors, floor, and ceiling with matching aluminum sides
• Interior walls and back made of aluminum
• Insulated with foamed-in-place polyurethane
• 2 positive-seal self-closing doors lock in cold
• 120-degree stay-open door feature
• 1-piece magnetic door gasket can be removed for cleaning
• Exterior-mounted cam lift door hinges
• Metal door handles
• Bolt-style door locks provide security after hours
• 2 digital temperature displays
• Shielded LED interior lighting
• 2 of (4) 5-in. diameter plate castors feature locks

Refrigeration System

• Top-mounted condenser
• 2 self-contained capillary tube systems
• Epoxy-coated evaporator located outside of food zone
• R290 hydrocarbon refrigerant
• Holding range: 33-38 degrees F
• Freezer temperature: -10 degrees F
• Condenser and evaporator fans are electronically communicated
• Time-initiated automatic defrost with evaporator fan motor delay

Dimensions and Utilities

• 27¹⁄₂ in. W x 35¹⁄₄ in. D x 84¹⁄₈ in. H
• ¹⁄₁₀ refrigerator HP
• ¹⁄₄ freezer HP
• 3.7 A
• 115 V/60 Hz/1 ph, with 9-ft. cord and NEMA 5-15P plug

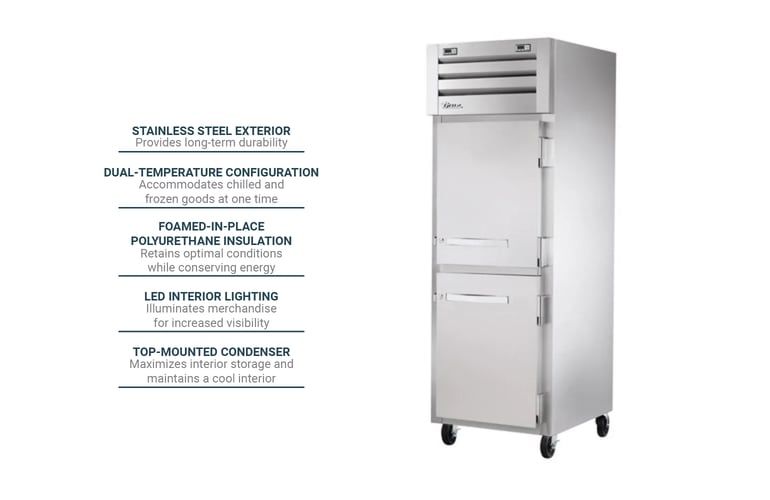

Product Features

*Free shipping on True Refrigeration STG1DTA-2HS-HC within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Refrigerator/Freezer, reach-in, one-section, (2) stainless steel half doors, locks, cam-lift hinges, digital temperature control, (3) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, R 1/10HP, F 1/4HP, 115v/60/1-ph, 3.7 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration STG1DTA-2HS-HC Specifications

Documents

Spec Sheet

Warranty
