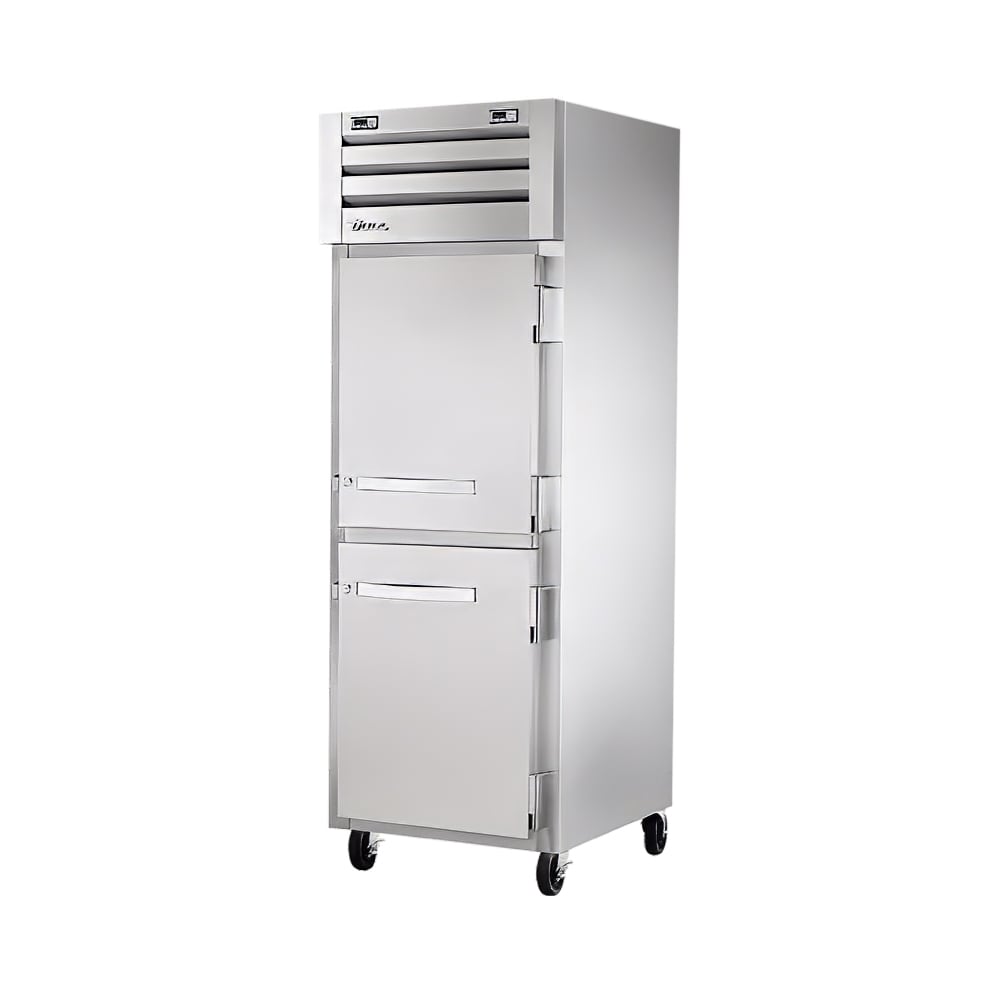

True STA1DTA-2HS-HC 27 1/2" SPEC SERIES® One Section Commercial Combo Refrigerator Freezer - Solid Doors, Dual Temp, 115

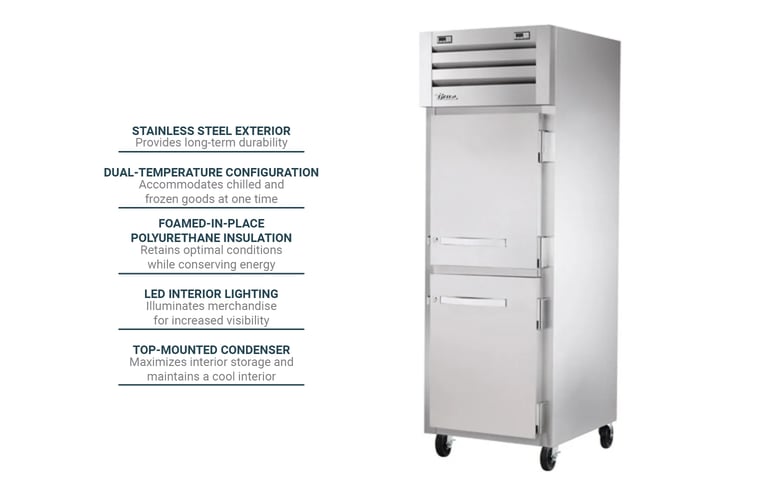

Designed for long-term durability, the True STA1DTA-2HS-HC refrigerator/freezer flaunts a stainless steel front, sides, floor, ceiling, and doors, while the interior side walls and back are constructed of aluminum. Its 27¹⁄₂-inch-wide by 35¹⁄₄-inch-deep by 84¹⁄₈-inch-high body is mounted on four castors for simple transportation; to hold it in place, two of the castors lock. The front is fitted with two solid, self-closing doors attached by external cam-lift hinges. Each door features a heavy-duty metal handle and can be propped open at a 120-degree angle to ease interior access for stocking or cleaning purposes, and they also have removable, one-piece door gaskets to create a tight seal to minimize thermal escape. Staff can secure the doors shut after hours using bolt-style door locks.

Great for storing chilled meat or produce and frozen desserts, this unit features a refrigerator bottom with a freezer top. Each section is designed with an independent digital temperature display, holding temperatures between 33 and 38 degrees Fahrenheit in the refrigerator and -10 degrees Fahrenheit in the freezer. The walls are lined with foamed-in-place polyurethane insulation to retain chill and conserve energy. For optimal organization, both compartments have three wire shelves that are chrome-plated for durability. Each compartment is illuminated with LED lighting to brighten the inside, enabling users to easily identify stored products.

For enhanced cooling and maximized interior storage, the True STA1DTA-2HS-HC refrigerator freezer is supplied with a top-mounted condenser. Both sections feature independent, self-contained capillary tube systems that distribute chill evenly, and to reduce environmental impact, it uses R290 hydrocarbon refrigerant. The evaporator and condenser fans are electronically commutated to increase airflow while conserving energy. To reduce corrosion risk, the evaporator is epoxy coated; its outside placement increases the capacity of the interior cavity. So frost-buildup is minimized, this unit is equipped with a time-initiated automatic defrost system, delaying the automatic evaporator fan during the defrost cycles.

Product Details

• Part of the SPEC SERIES®
• Holds 3 chrome-plated wire shelves per section
• Freezer top
• Refrigerator bottom
• Doors, front, sides, floor, and ceiling constructed of stainless steel
• Interior side walls and back constructed of aluminum
• Foamed-in-place polyurethane insulation
• 2 positive-seal self-closing doors
• 120-degree stay-open design
• Removable, 1-piece magnetic door gasket
• External cam lift door hinges
• Heavy-duty metal door handles
• Bolt-style door locks
• 2 independent digital temperature displays
• LED interior lighting featuring protective shield
• (4) 5-in. diameter plate castors, 2 with locks

Refrigeration System

• Top mounted
• 2 independent, self-contained capillary tube systems
• Epoxy-coated evaporator positioned out of food zone for increased storage
• R290 hydrocarbon refrigerant
• Refrigerator holding range: 33-38 degrees F
• Freezer temperature: -10 degrees F
• Electronically commutated evaporator and condenser fans conserve energy
• Time-initiated automatic defrost system
• Automatic evaporator fan motor delay during defrost cycle

Dimensions and Utilities

• 27¹⁄₂ in. W x 35¹⁄₄ in. D x 84¹⁄₈ in. H
• ¹⁄₁₀ refrigerator HP
• ¹⁄₄ freezer HP
• 3.7 A
• 115 V/60 Hz/1 ph, with 9-ft. cord and NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration STA1DTA-2HS-HC within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Refrigerator/Freezer, reach-in, one-section, (2) stainless steel half doors, locks, cam-lift hinges, digital temperature control, (3) chrome shelves, LED interior lights, stainless steel front & sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, R 1/10HP, F 1/4HP, 115v/60/1-ph, 3.7 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Electrical Components; 10-year Compressor
