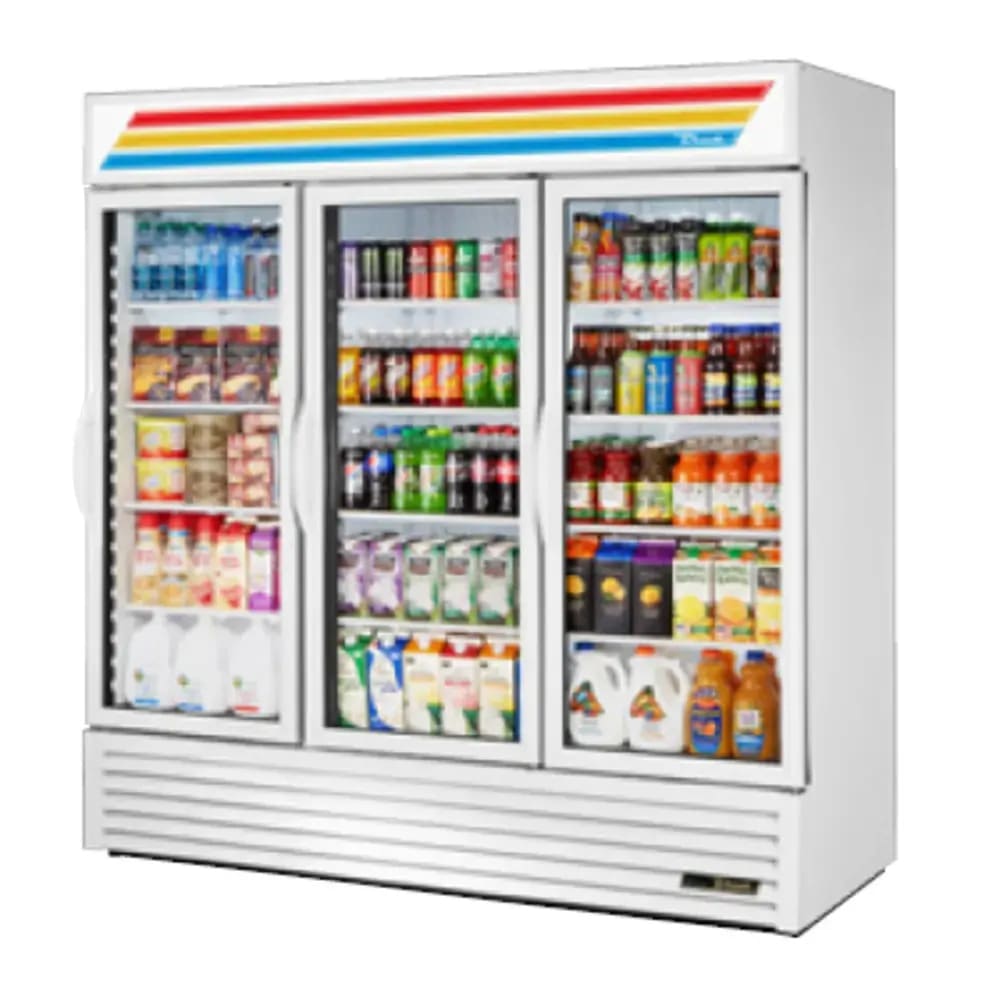

True GDM-72-HC~TSL01 78 1/8" GDM Series Three Section Glass Door Merchandiser - (3) Right Hinge Doors, White, 115v

Ideal for convenience stores, truck stops, and mini-markets, the True GDM-72-HC~TSL01 merchandiser flaunts three sections. Its exterior and frame are constructed of sturdy steel alloy, which is finished with a chip- and peel-resistant white powder coating. For enhanced durability and corrosion resistance, the interior is lined with white aluminum, while the floor is made of stainless steel. To minimize temperature fluctuation, this unit is insulated with foamed-in-place, high-density polyurethane; the floor is designed with a built-in drain that simplifies cleaning. Overall, this unit measures 78¹⁄₈ inches wide by 31¹⁄₄ inches deep by 78⁵/₈ inches high and is mounted on leg levelers for stability on uneven floors.

So staff can access the condenser and coil for cleaning and servicing, its self-contained refrigeration system is bottom mounted. To evenly distribute chill, this refrigerator operates with R290 hydrocarbon refrigerant and a network of capillary tubes; this system maintains temperatures within a 33 to 38-degree Fahrenheit range. For efficient air circulation, the unit operates with fast-moving, electronic-communicated evaporator and condenser fans that produce minimal heat to conserve energy. To protect the evaporator from moisture, it's epoxy coated.

The True GDM-72-HC~TSL01 merchandiser is fit with three, swing-type doors that are hinged on the right side. These doors are constructed of double-pane insulated glass for optimal visibility and chill retention. To minimize thermal leaks, the doors self-close and feature a positive seal, torsion-type closure system. Magnetic gaskets create a secure seal between the doors and the frame and can be removed for cleaning as needed. To match the exterior of the unit, the door frames are white, and to ease opening and closing, each features a 12-inch-long extruded handle. Great for high-volume storage, this refrigerator comes with (12) 24¹⁄₈-inch-long by 20³⁄₄-inch-deep wire shelves coated in PVC for simplified cleaning. These shelves can be raised and lowered between the aluminum shelf support pilasters, which are spaced out in ¹⁄₂-inch increments. Each shelf comes with four chrome-plated shelf clips. Because this unit's condenser is bottom mounted, its lowest shelf is simple to access and reduces the need for bending over. To further enhance merchandising displays, the interior of this unit is illuminated by LED lighting.

Product Details

• 3 sections
• Holds (12) 24¹⁄₈ in. x 20³⁄₄ in. PVC coated wire shelves that are adjustable in ¹⁄₂-in. increments
• 4 chrome-plated shelf clips per shelf
• Aluminum shelf support pilasters
• White powder-coated steel exterior resists peeling and chipping
• White aluminum interior features stainless steel floor
• Powder-coated, white welded frame rail resists corrosion
• Double-pane insulated, swing-type glass doors
• Right hinged
• Doors are self-closing with positive seal and torsion-type closure system
• Removable magnetic door gaskets
• 12-in. long extruded door handles
• Safety-shielded LED interior lighting
• No-stoop lower shelf
• Foamed-in-place, high-density polyurethane insulation
• Built-in clean-out drain in cabinet floor
• Leg levelers

Refrigeration System

• Self-contained, bottom-mounted condenser
• Capillary tube system
• R290 hydrocarbon refrigerant
• Temperature holding range: 33-38 degrees F
• Electronic evaporator and condenser fan motors conserve energy
• Accessible condenser coil
• Epoxy-coated evaporator

Dimensions and Utilities

• 78¹⁄₈ in. W x 31¹⁄₄ in. D x 78⁵/₈ in. H
• ¹⁄₂ HP
• 9.3 A
• 115 V/ 60 Hz/ 1 ph, with 9-ft. cord and NEMA 5-15P plug

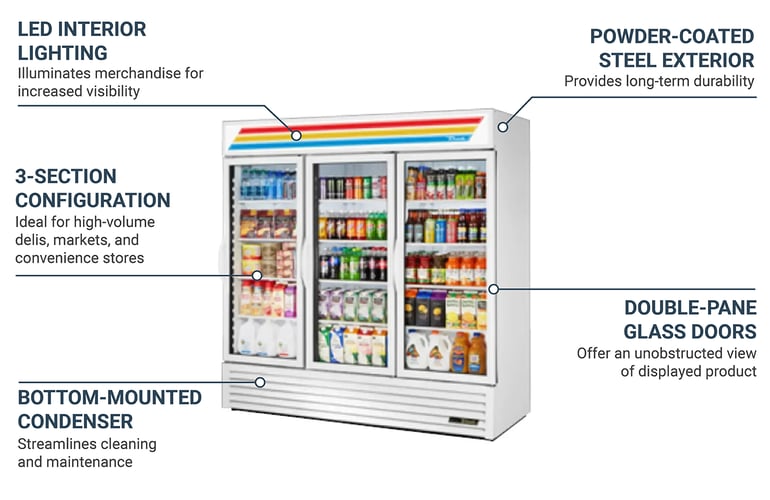

Product Features

*Free shipping on True Refrigeration GDM-72-HC~TSL01 within the 48 contiguous states.

From The Manufacturer

Refrigerated Merchandiser, three-section, True standard look version 01, (12) shelves, (3) double pane thermal insulated glass hinged doors, LED interior lights, powder coated steel exterior, white interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 9.3 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor Parts

True Refrigeration GDM-72-HC~TSL01 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
