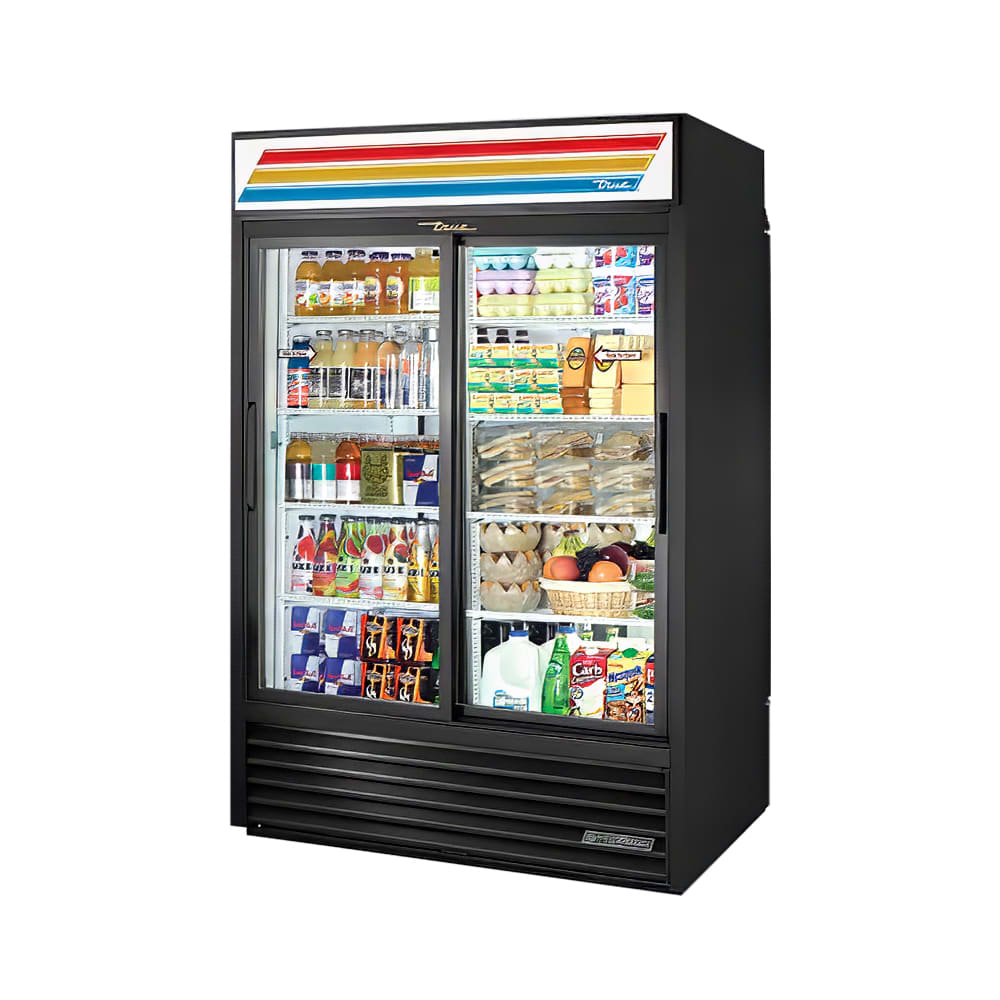

True GDM-47RL-HC-LD 54 1/8" GDM Series Two Section Pass Thru Glass Door Merchandiser - (2) Sliding Doors, Black, 115v

The True GDM-47RL-HC-LD pass-thru glass door merchandiser holds displayed items on eight adjustable wire shelves and a stainless steel floor. LED lights and a white interior liner enhance product visibility. Temperatures in the cabinet range from 33 to 38 degrees Fahrenheit with R290 hydrocarbon refrigerant, which is more eco-friendly than options that are traditionally used in these units. Since the refrigeration system is bottom mounted, it is highly accessible and elevates the floor to a comfortable level when users are reaching for products.

When the compressor is started, its fan motor reverses for 20 seconds to clean the condensing coil. This helps to remove dirt and dust from the coil, lengthening the unit's lifespan and increasing its efficiency. For optimal cooling, users should perform preventative maintenance alongside this feature.

With two front doors and two rear doors, the True GDM-47RL-HC-LD two-section glass door merchandiser functions as a pass-thru unit, enabling customers to access product while operators stock from the back. The front doors are made of glass to show off product, and they slide open for convenience. Both sets of doors are made to self-close and retain cold air. Its black exterior finish is resistant to peeling and chipping, fitting into most design schemes.

Product Details

• 8 PVC-coated wire shelves adjust in ¹⁄₂-in. increments to hold a variety of items
• LED lights shine on product
• White aluminum liner brightens the cabinet to enhance visibility
• Stainless steel interior floor facilitates cleaning
• Chip- and peel-resistant exterior has a black finish that blends into most settings
• Illuminated sign panel attracts customers
• Foamed-in-place polyurethane insulation creates cabinet structure

Bottom-mount Refrigeration System

• Temperature range: 33-38 degrees F
• Uses R290 hydrocarbon refrigerant
• Electronically commutated condenser and evaporator fan motors distribute a consistent amount of air
• Condensing fan motor blows in reverse for 20 seconds upon compressor start up to clean the condensing coil
• Location elevates the bottom of the unit to a comfortable height for grabbing products
• Condenser is accessible for maintenance

Pass-thru Door Design

• 2 Low-E, double-pane glass front doors slide open for convenient access to the cabinet
• 2 rear doors swing open for operators to stock product
• 12-in. front door handles
• Recessed rear door handles do not protrude into the aisle
• All doors self-close to keep cold air in the cabinet

Dimensions & Utilities

• Shelves: 24⁷⁄₁₆ in. W x 20⁹⁄₁₆ in. D
• Overall: 54¹⁄₈ in. W x 32¹⁄₂ in. D x 78⁵⁄₈ in. H
• 8.5 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration GDM-47RL-HC-LD within the 48 contiguous states.

From The Manufacturer

Refrigerated Merchandiser, pass thru, two-section, (8) shelves, (2) front Low-E thermal glass sliding doors, (2) rear solid doors, LED interior lights, powder coated steel exterior, white aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 8.5 amps, NEMA 5-15P, cULus, UL EPH Classified

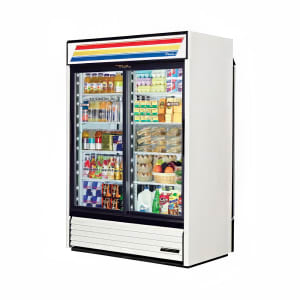

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor Parts

True Refrigeration GDM-47RL-HC-LD Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
