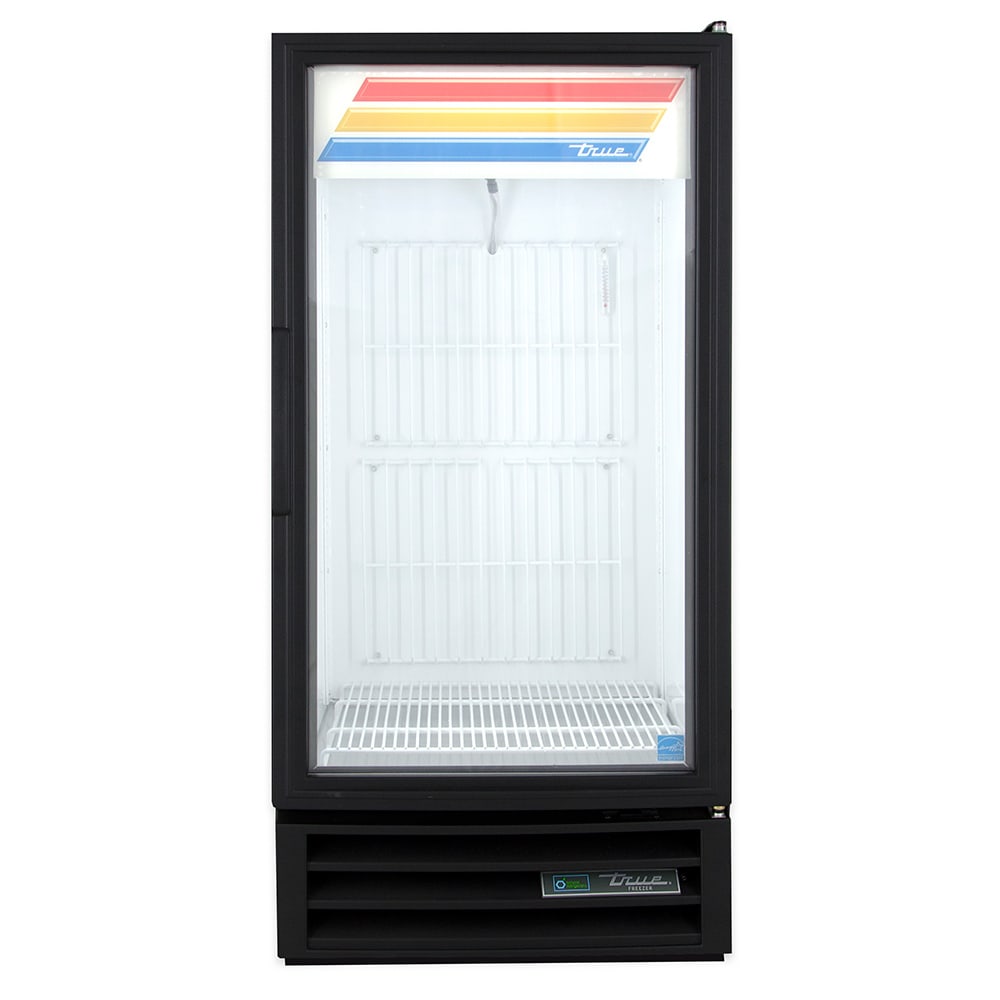

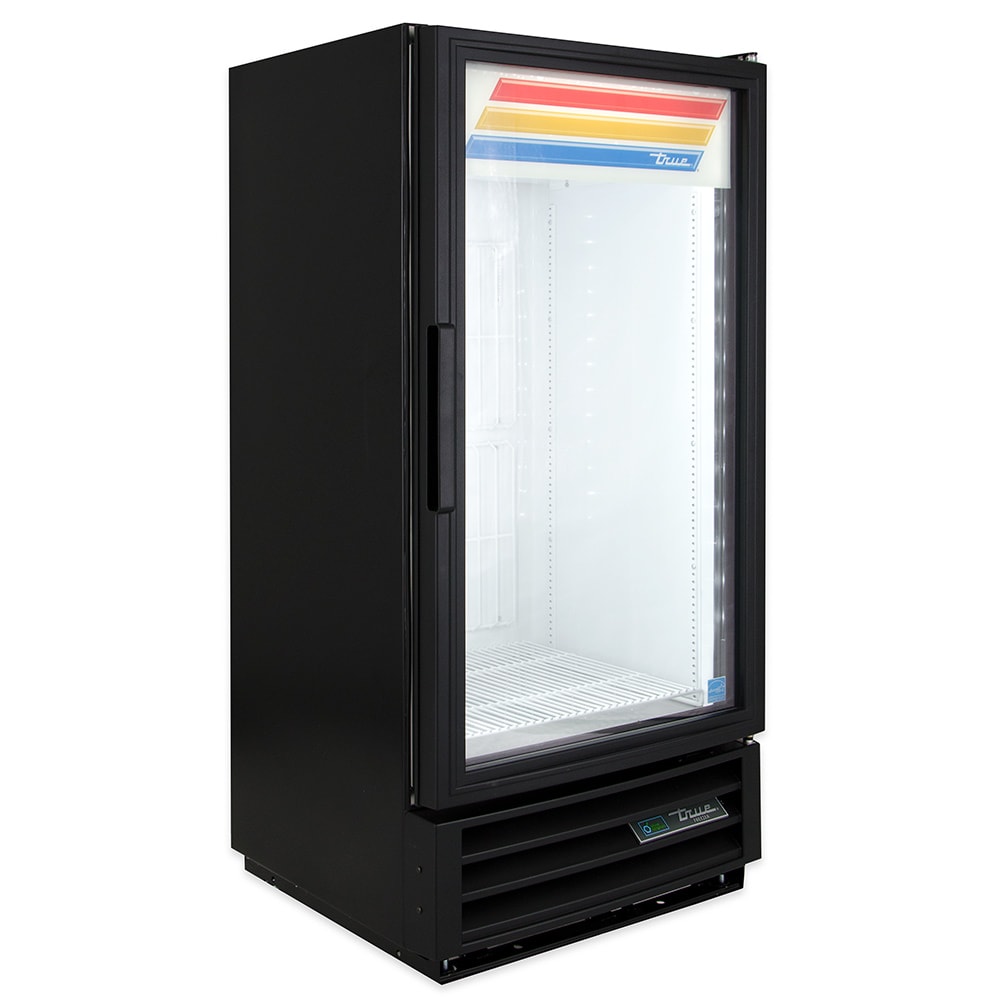

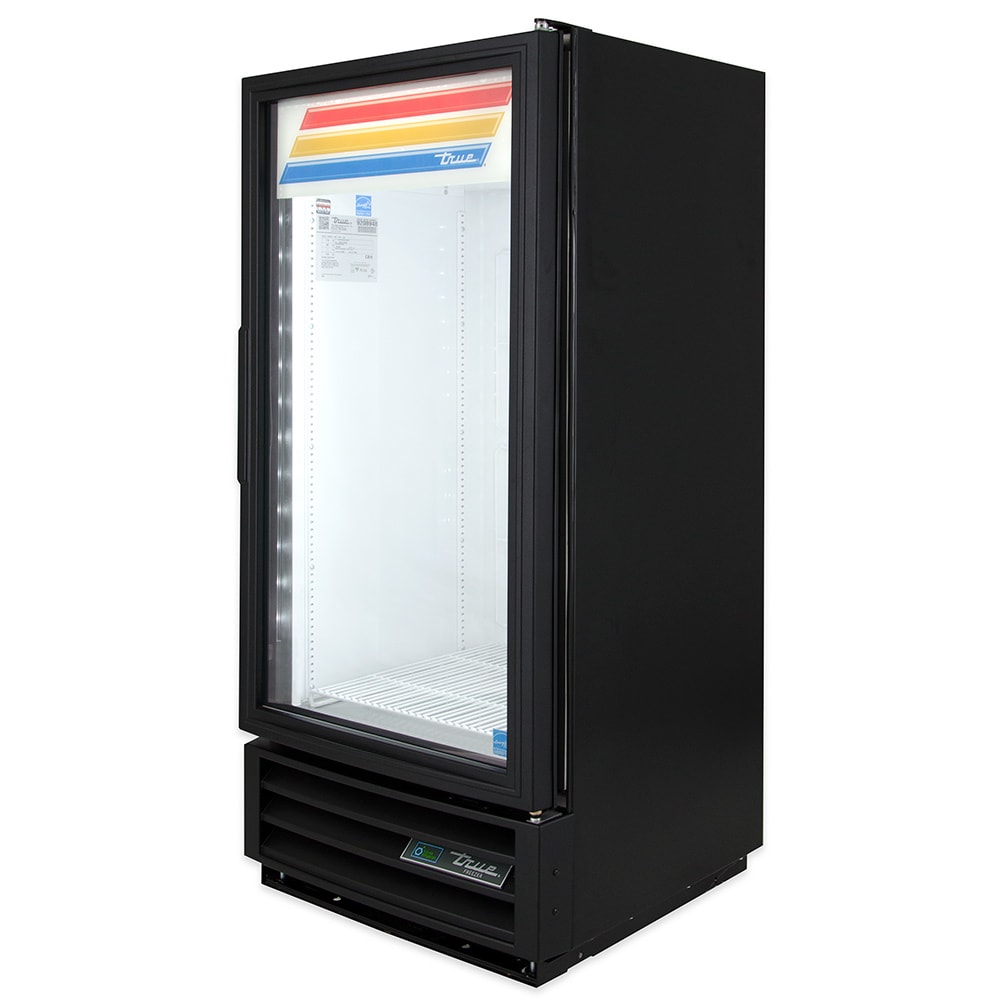

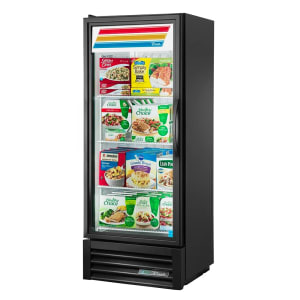

True GDM-10F-HC~TSL01 24" One Section Display Freezer w/ Swing Door - Bottom Mount Compressor, Black, 115v

The True GDM-10F-HC~TSL01 one-section display freezer has a permanent, black powder-coated exterior that avoids peeling or chipping. Its white aluminum liner brightens the cabinet interior, while safety-shielded LED interior lights enhance product visibility. A black powder-coated, heavy-duty steel frame rail is protected against corrosion and has leg levelers that help with uneven floor installation. Cold air stays inside the cabinet since it is insulated with polyurethane, which also provides the cabinet with structure.

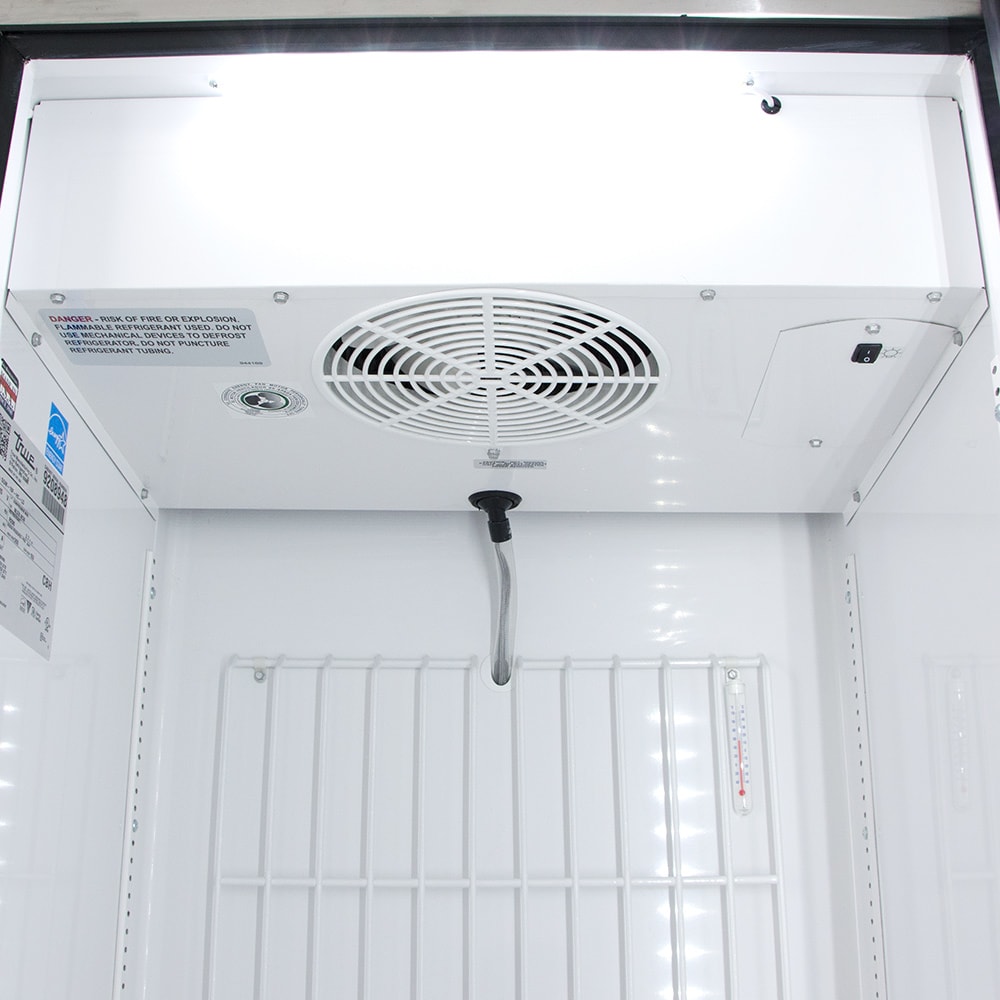

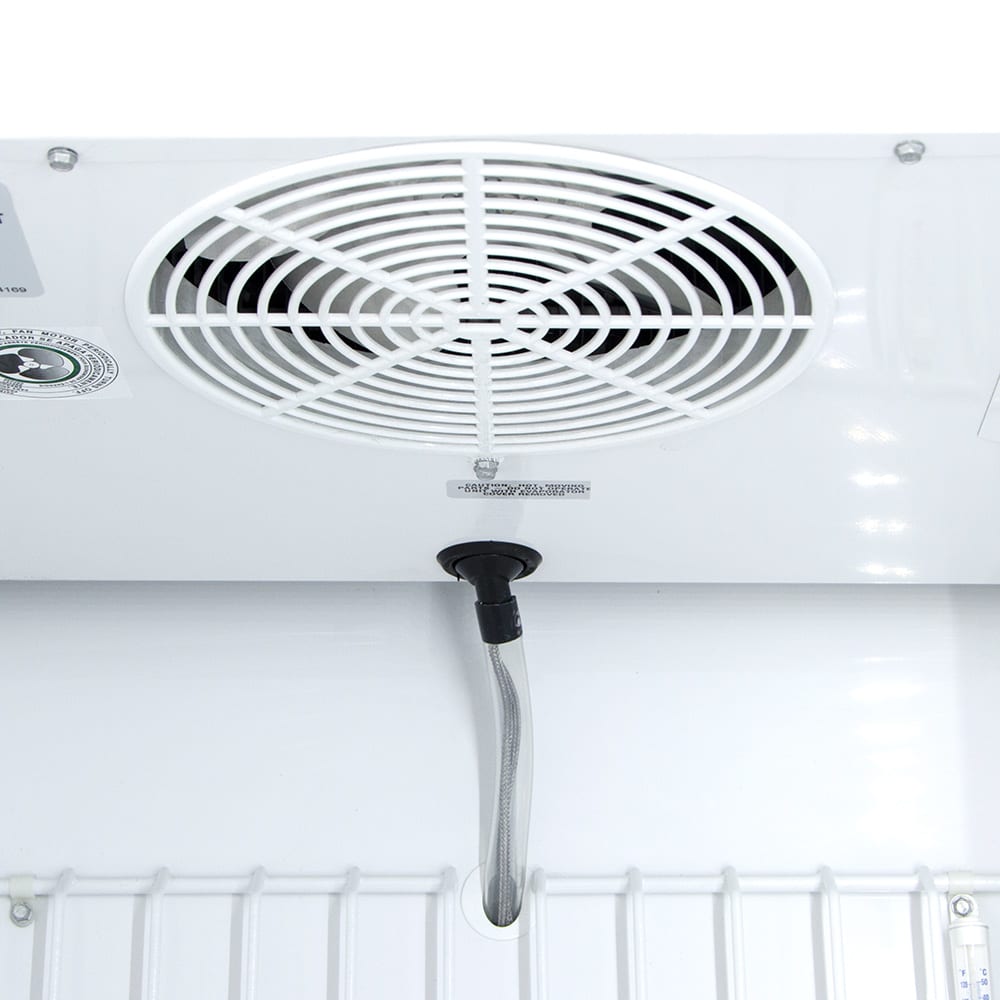

Environmentally friendly R290 refrigerant is used by the self-contained capillary tube system to keep temperatures cool. The refrigeration system maintains an even temperature of -10 degrees Fahrenheit, while evaporator and condenser fan motors move a high volume of air to provide cold holding temperatures and fast temperature recovery.

An automatic defrost system melts built-up ice to ensure the True GDM-10F-HC~TSL01 display freezer is running properly; the cycles start based on a timer and finish when the temperature is at an ideal level. Its bottom-mounted condensing unit is easy to maintain and creates a no-stoop shelf that slightly raises products for visibility. Blowing excess dust and dirt off the condenser coil, the compressor fan motors run in reverse mode for 20 seconds upon start up. This ensures the refrigeration system is operating efficiently without high energy consumption levels.

Product Details

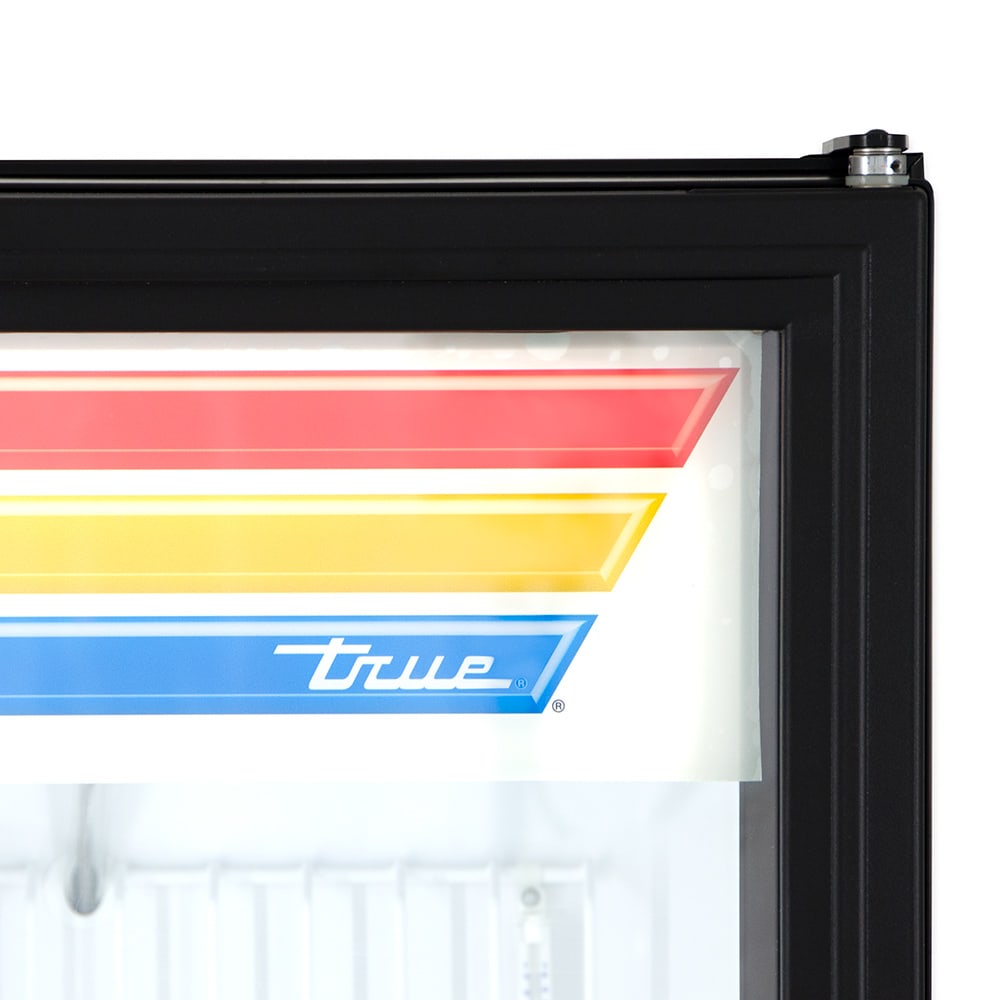

• Door sign decal helps market products

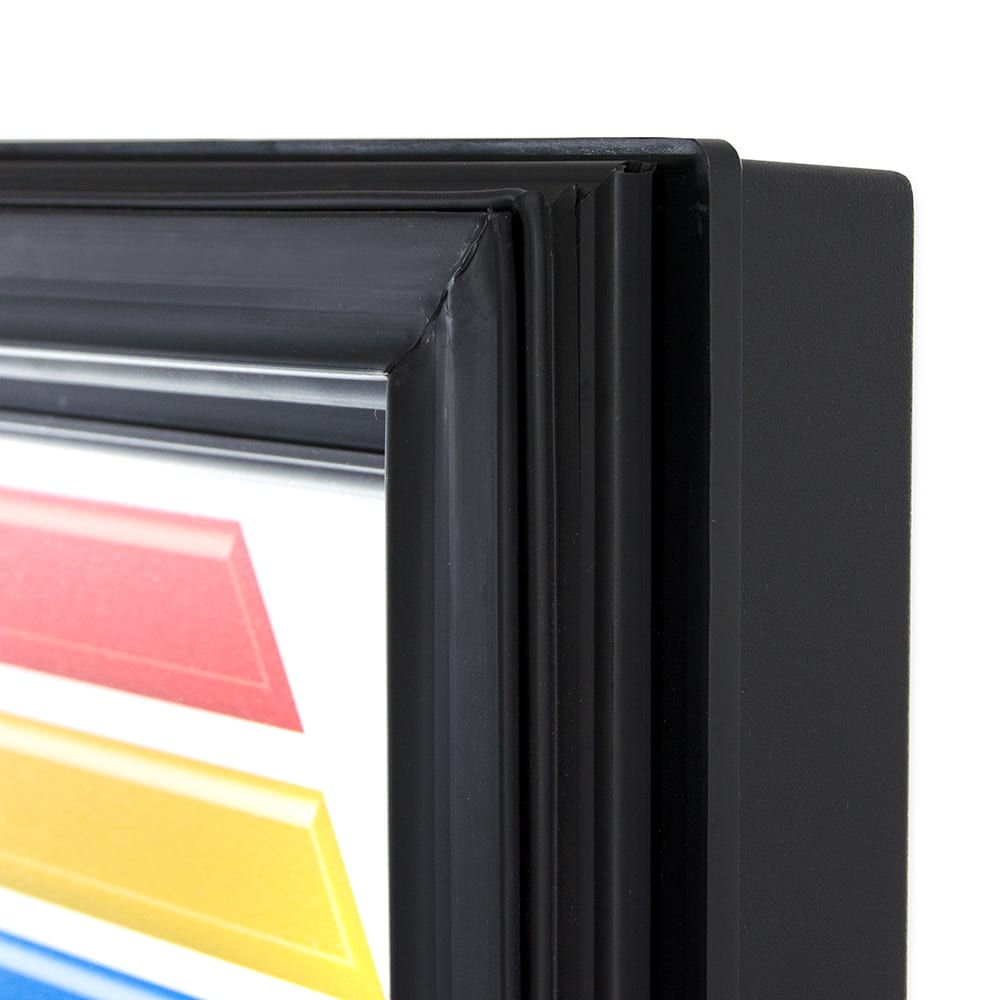

• Triple-pane, thermal-insulated glass door is self-closing to help keep cold air inside
• 12-in. integrated handle simplifies door opening
• Magnetic door gaskets remove for cleaning and replacing while keeping cold air from escaping

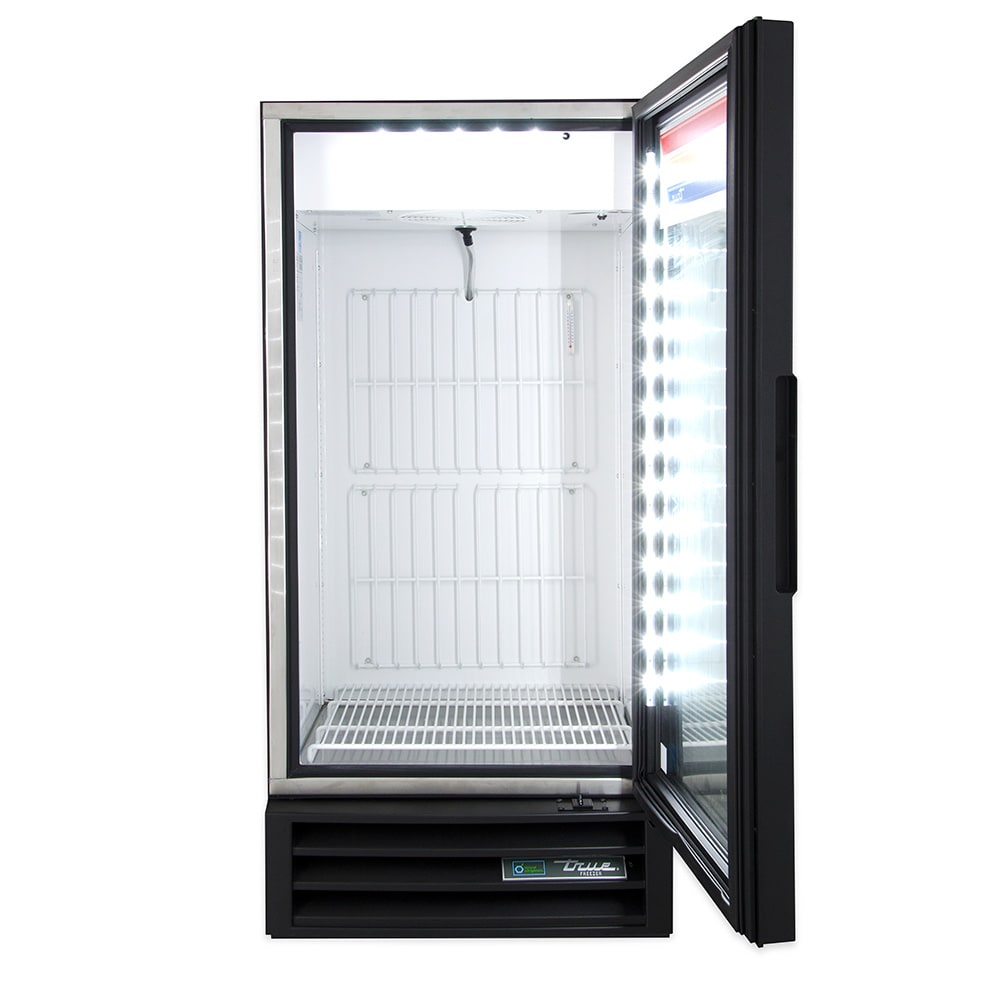

• Products are visible with the LED interior lights

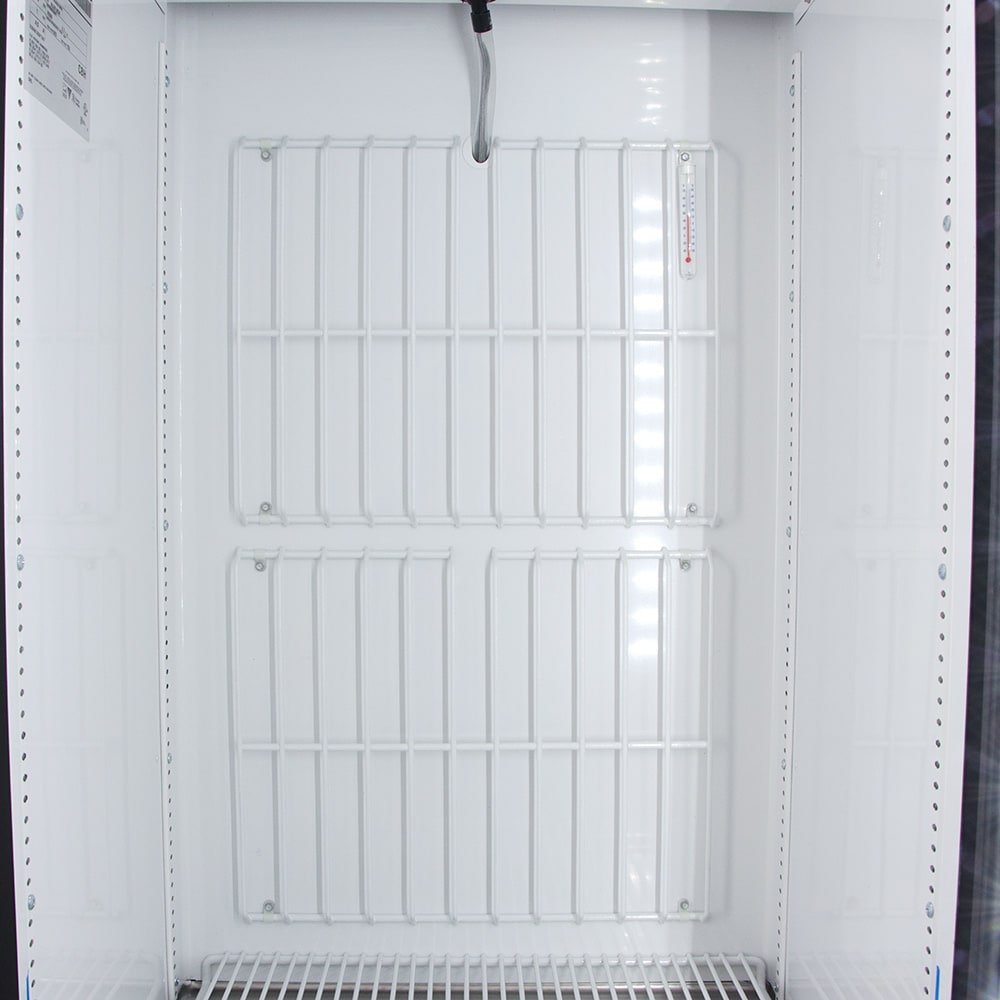

• Backguard and floor rack ensure ideal airflow

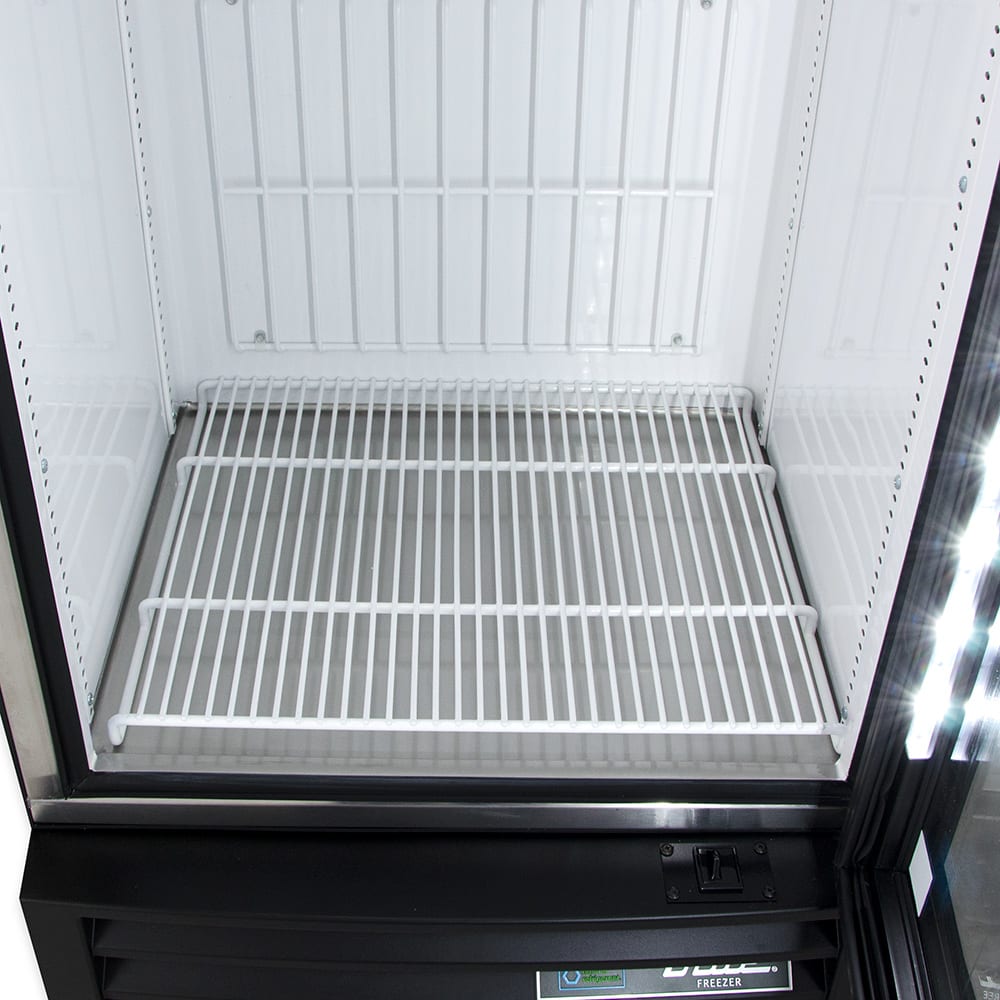

• 3 heavy-duty, PVC-coated wire shelves are on adjustable ¹⁄₂-in. increments
• 4 chrome-plated shelf clips per shelf
• No-stoop shelf is created by the condensing unit and slightly lifts products for visibility

Cabinet Construction

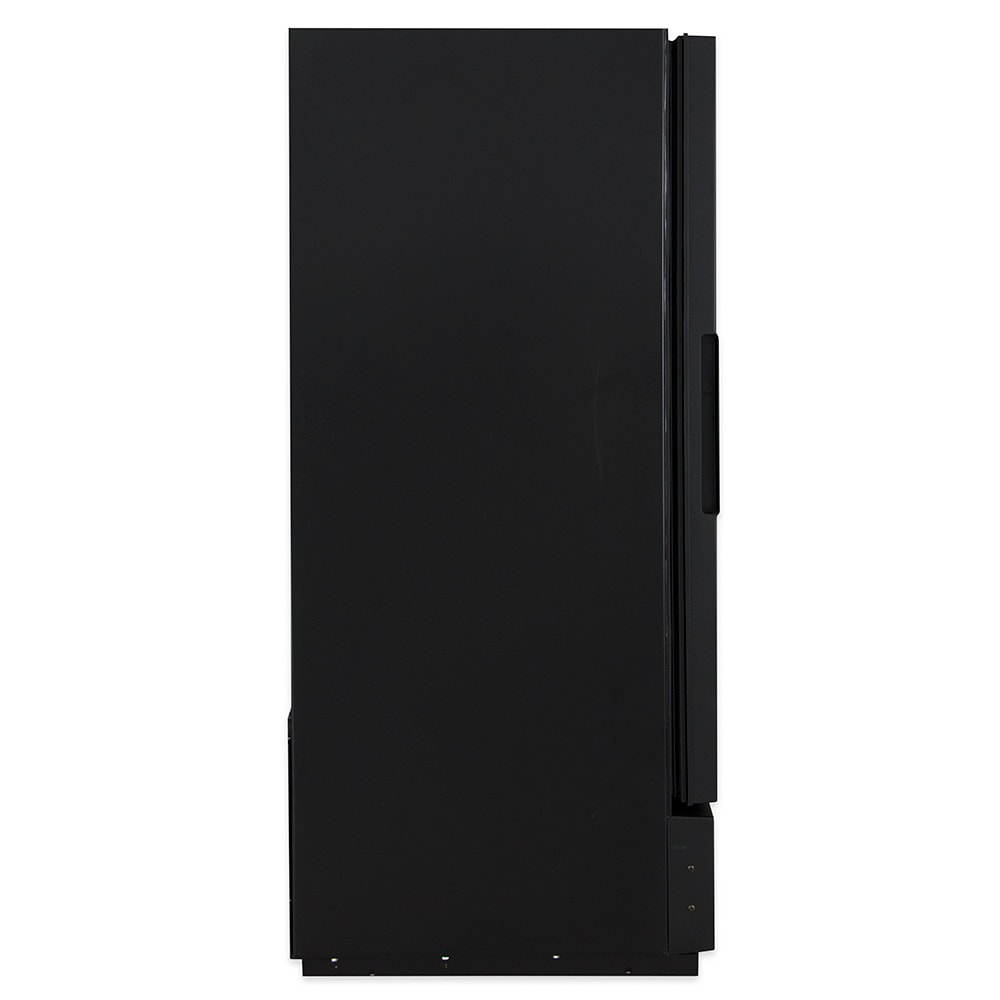

• Black powder-coated steel exterior is durable, permanent, and will not chip or peel
• White aluminum interior liner brightens the cabinet
• Stainless steel floor is durable and eases cleaning
• Foamed-in-place polyurethane insulation keeps cold air inside the cabinet and gives it sturdiness
• Heavy-duty, black powder coated steel frame rail is resistant to corrosion and has leg levelers to help with uneven flooring

Reliable Refrigeration

• Operating temperature: -10 degrees F
• Environmentally friendly R290 hydrocarbon refrigerant is used by the self-contained capillary tube system
• Evaporator is coated in corrosion-resistant epoxy

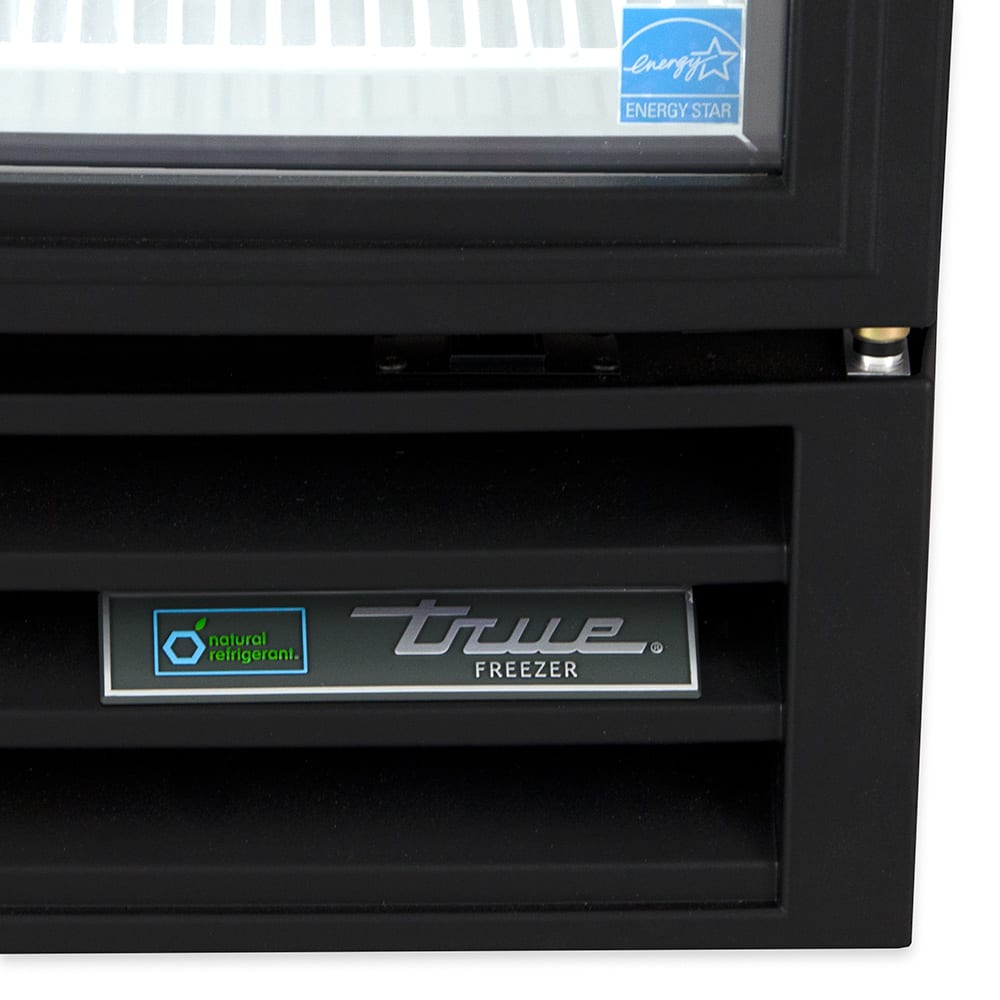

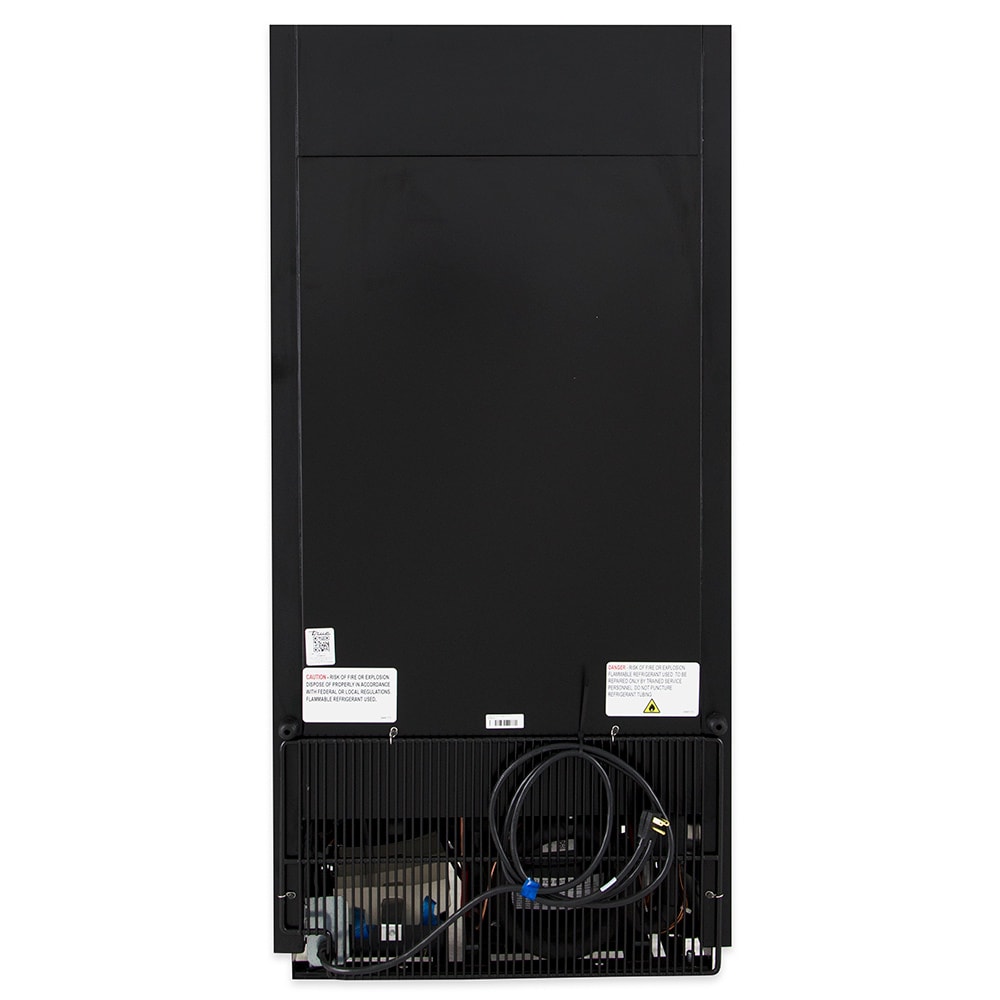

• Condensing unit is mounted on the bottom of the cabinet to simplify routine maintenance
• Fan motors run in reverse mode for 20 seconds on start up to blow dust and debris off coil
• Time-initiated, temperature-terminated, automatic defrost system melts built-up ice to ensure the unit is running properly

Dimensions & Utilities

• Shelves: 20¹³⁄₁₆ in. W x 16³⁄₄ in. D
• Overall: 24⁷⁄₈ in. W x 23¹⁄₈ in. D x 53¹⁄₂ in. H
• 4.5 A, ¹⁄₂ HP

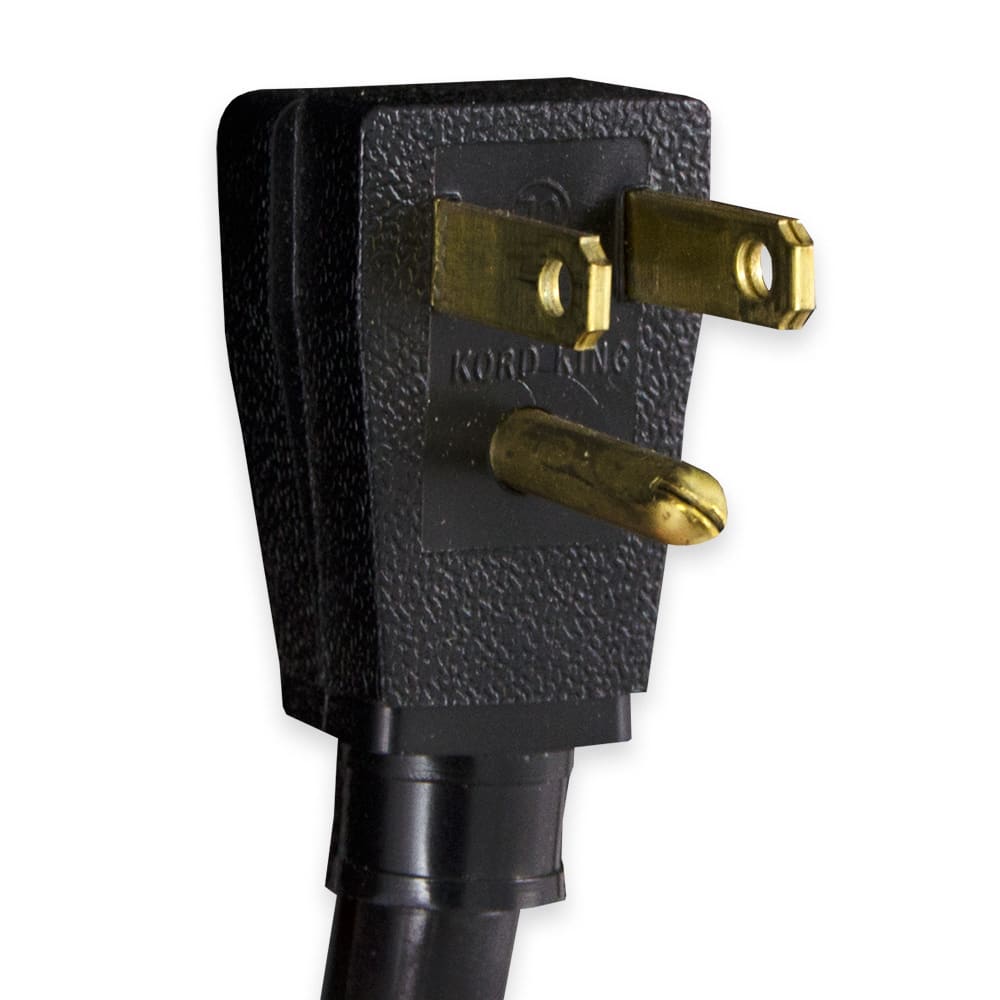

• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration GDM-10F-HC~TSL01 within the 48 contiguous states.

From The Manufacturer

Freezer Merchandiser, one-section, -10°F, (3) shelves, (1) triple-pane thermal glass hinged door, LED interior lights, powder coated steel exterior, white interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 4.5 amps, NEMA 5-15P, (depth does not include 1" for rear bumpers), cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration GDM-10F-HC~TSL01 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
