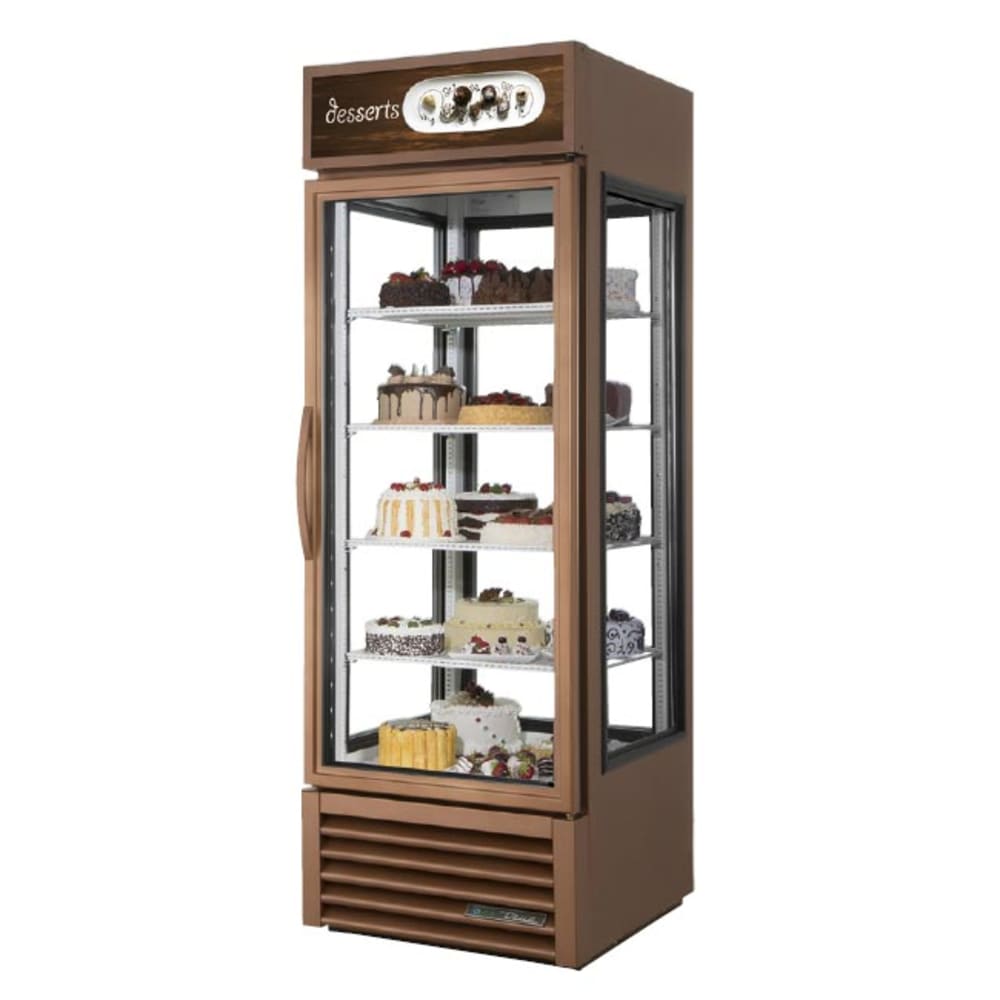

True G4SM-23-HC~TSL01 28" Self Service Bakery Case w/ Straight Glass - (5) Levels, Copper, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 598-G4SM23 • MPN: G4SM-23-HC~TSL01 BRZ
Ships Free

Typically ships within 4 - 8 business days

Need it quicker? Call us today! 800-541-8683
(0 reviews)Write a Review

Image may not depict product color, inclusions or accessories.

True Refrigeration G4SM-23-HC~TSL01 Description

True Refrigeration

The True G4SM-23-LD four-sided glass merchandiser has an oversized refrigeration system that provides consumers with cold temperatures and lower utility costs. The paned glass door securely encases the four-shelved, brightly illuminated, full view interior so customers can easily see the products. The compressor, condenser, and evaporator coil help maintain the temperature of the cabinet between 33 and 38 degrees Fahrenheit.

Cold holding temperatures and fast temperature recovery is achieved with high volume airflow created by the evaporator fan motor and larger fan blades. To keep cold air inside and give structure to the cabinet, foamed-in-place polyurethane insulation is used. The magnetic door gasket is easy to remove without tools to facilitate cleaning and keep cold air inside the cabinet. The True G4SM-23-LD four-sided glass merchandiser is NSF-7 compliant for holding or displaying packaged or bottled product.

Product Details

  • 4 PVC-coated wire shelves are on 12-in. adjustable increments to accommodate products that vary in height
  • 4 chrome-plated shelf clips per shelf
  • Door has a 12 in. long extruded handle that makes opening the door easy
  • Self-closing door helps keep cold air inside the cabinet
  • Exterior front sign panel lights up to grab customers’ attention
  • Interior LED lighting makes product more visible
  • 115 V/60 Hz/1 ph, 5.4 A, 13 HP, 9-ft. cord with a NEMA 5-15P plug

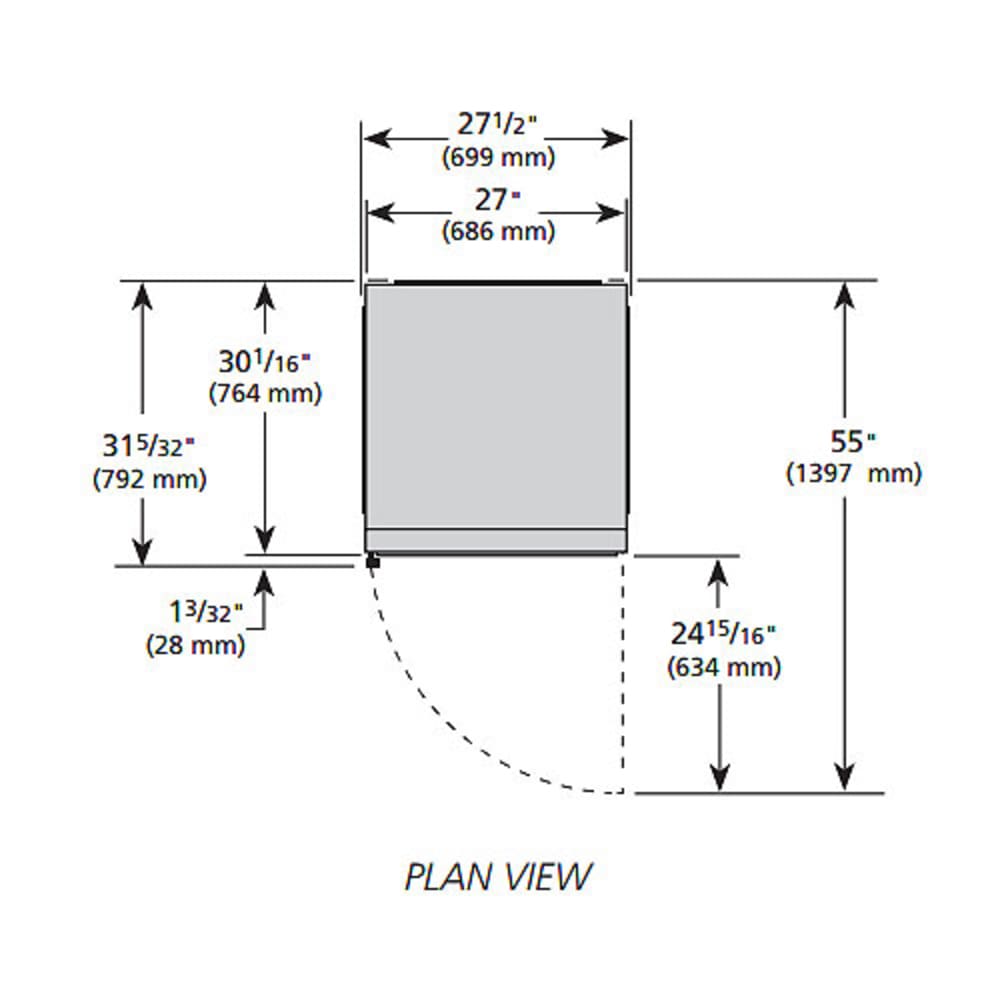

  • Overall Dimensions: 2712 in. W x 3018 in. D x 7858 in. H
  • NSF-7 compliant for holding packaged or bottled products
  • cULus and UL-EPH listed; Energy Star certified

Refrigeration System

  • R-134A refrigerant is used by the self-contained capillary tube system
  • 33-38 degrees F temperature range is maintained with the evaporator coil, condenser, and compressor
  • Evaporator fan motor and fan blades create a high volume airflow that makes holding temperatures cold and temperature recovery fast
  • Bottom-mounted condensing unit is easy to maintenance while the no stoop lower shelf improves visibility
  • Epoxy-coated evaporator resists corrosion


  • Bronze powder coated exterior resists scratching and corrosion
  • Black aluminum interior liner and stainless steel floor are durable
  • Cabinet is foamed in place with polyurethane insulation to keep cold air inside
  • Heavy-duty steel frame rail is black powder coated to resist corrosion
  • Leg levelers stabilize on uneven flooring
  • Double pane, thermal insulated glass door and sides keep cold air inside the cabinet
  • Magnetic door gasket keeps cold air from escaping and easily removes without tools for cleaning

Specialty Merchandiser, reach-in, one-section, True standard look version 01, 23 cu. ft., (4) shelves, copper powder coat finish exterior, white aluminum interior liner with stainless steel floor, (4) Low-E thermal glass sides including (1) hinged glass door, LED lighting, bottom mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1, 5.4 amps, NEMA 5-15P, cULus, UL EPH Classified, MADE IN USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

True Refrigeration G4SM-23-HC~TSL01 Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Access Self Service
Also Known As G4SM-23, TRUE G4SM-23, TRUG4SM23, 890G4SM23, G4SM23, 675-089, G4SM-23-LD
Door Type Hinged
Finish Copper
Height (in) 78
Length (in) 28
Number of Levels 5
Shelving Type Wire
Specialty Options Glass Sides
Style Straight Glass
Warranty 3 year parts & labor; 5 year compressor
Refrigeration Type Refrigerated
Phase 1
Hertz 60
Voltage 115
Thermometer Type Digital
Weight 375.00
True G4SM-23-HC~TSL01 Certifications
  • UL
  • NSF
  • Energy Star
