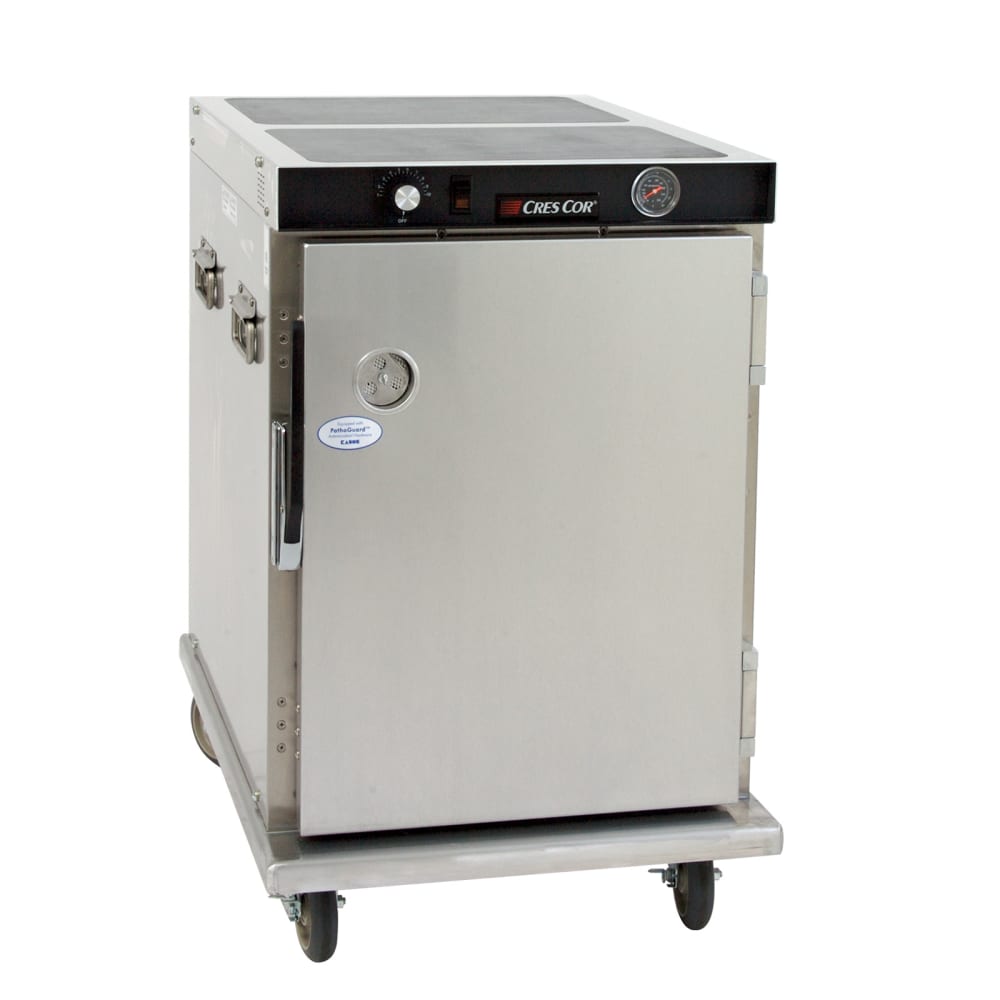

Cres Cor H-339-188-CZ 1/2 Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v

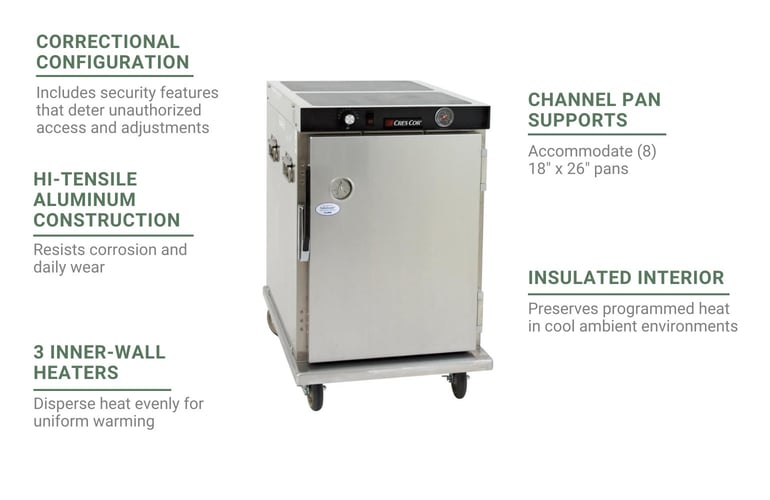

Suited for use in correctional facilities, the Cres Cor H-339-188-CZ insulated half-size hot cabinet includes features that deter tampering and unauthorized adjustments. A security panel covers its control system, and its door includes a key-locking latch and inboard-mounted hinges. This hi-tensile aluminum unit is built with a structurally rigid internal frame and measures 23⁷⁄₈ inches wide by 32¹⁄₄ inches deep by 36¹¹⁄₁₆ inches high to fit beneath counters. To simplify transport between the kitchen and serving areas, it's fitted with 5-inch swivel casters that have a 1,000-pound total load capacity; two casters have brakes that secure the unit in place as pans are loaded or removed. Its channel pan supports accommodate as many as eight 18-inch by 26-inch pans on 2³⁄₄-inch centers.

The Cres Cor H-339-188-CZ correctional hot cabinet's three inner-wall heaters produce temperatures as high as 200 degrees Fahrenheit to ensure prepared meals are warm for serving. Insulated with fiberglass, the cabinet's interior preserves original temperatures in cool ambient settings and when the door is opened for short periods of time as pans are retrieved or inserted. Operators can adjust temperatures quickly using the top-mounted control panel's electromechanical thermostat, and its analog thermometer displays an accurate temperature reading. Its power switch illuminates when the unit is on so users can monitor its power status easily.

Product Details

• Half-height model with correctional features
• 1,000-lb. load capacity
• Channel supports positioned on 2³⁄₄-in. centers
• Accommodates (8) 18-in. x 26-in. pans
• 3 inner-wall heaters
• Generates temperatures as high as 200 degrees F
• Top-mounted controls with stainless steel and Lexan security panel
• Electromechanical thermostat and analog thermometer
• Lighted power rocker switch
• Corrosion-resistant hi-tensile aluminum construction with structurally rigid frame
• Field-reversible door with antimicrobial, key-locking latch
• Inboard-mounted latch and hinges
• (4) 5-in. swivel modulus casters (2 with brakes)

Dimensions & Utilities

• Interior: 18³⁄₁₆ in. W x 26¹⁄₄ in. D x 24⁷⁄₈ in. H
• Overall: 23⁷⁄₈ in. W x 32¹⁄₄ in. D x 36¹¹⁄₁₆ in. H
• 7.5 A, 900 W
• 120 V/60 Hz/1 ph, 6-ft. cord with a molded NEMA 5-15P plug

Product Features

*Free shipping on Cres Cor H-339-188-CZ within the 48 contiguous states.

From The Manufacturer

Correctional Cabinet, Mobile Heated, half-height, insulated, lift-out interior, capacity (8) 18" x 26" pans, slides on 2-3/4" centers, anti-microbial latches, analog thermometer, aluminum exterior & interior, cCSAus, CSA

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor

Cres Cor H-339-188-CZ Specifications

Documents

Spec Sheet

Manual
