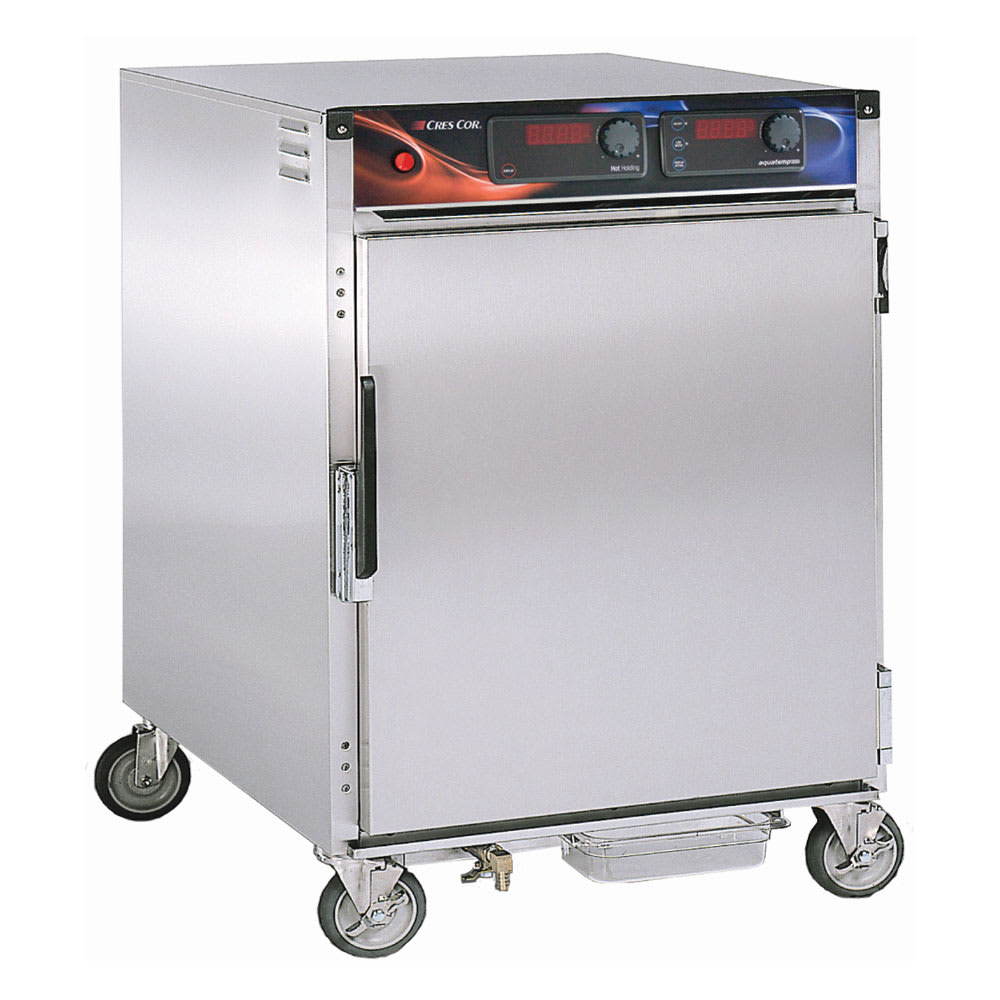

Cres Cor H-137-WSUA-6D 1/2 Height Insulated Mobile Heated Cabinet w/ (6) Pan Capacity, 120v

Constructed of durable stainless steel with a rigid internal frame and a reinforced internal base, the Cres Cor H-137-WSUA-6D mobile hot cabinet withstands frequent transport and repeated pan loading and retrieval. To save space in crowded kitchens, this half-height model measures 28¹⁄₄ inches wide by 33³⁄₈ inches deep by 43³⁄₈ inches high, and it's simple to move with its 5-inch swivel casters—two of which have brakes to secure it in place. Operators can fully access the interior via the field-reversible door, which includes an easy-open antimicrobial latch and a twist-lock catch that ensures the door remains closed. Inside the cabinet, smooth, coved corners reduce particle and grease buildup, and six sets of stainless steel wire universal angles support variously sized pans and can be adjusted on 1¹⁄₂-inch centers.

This Cres Cor H-137-WSUA-6D heated mobile cabinet uses an efficient, top-mounted heater to produce and maintain temperatures as high as 200 degrees Fahrenheit—ideal for holding prepared dishes at safe serving temperatures. The holding thermostat's solid-state digital display control can be used to modify temperatures, and its digital thermometer displays an accurate temperature readout. To preserve food textures, operators can adjust humidity as high as 95 percent using the humidity thermostat, which heats the 4-gallon water pan to create moisture. If water levels drop unexpectedly, an LED indicator light alerts the operator; when water levels become critically low, the water heater shuts off automatically. To protect the cabinet's front traffic area from spills, the integral trough collects leaks from the pan. This unit's interior is insulated by fiberglass to maintain programmed temperatures and humidity in cool ambient environments and as the door is opened for pan insertion or retrieval.

Product Details

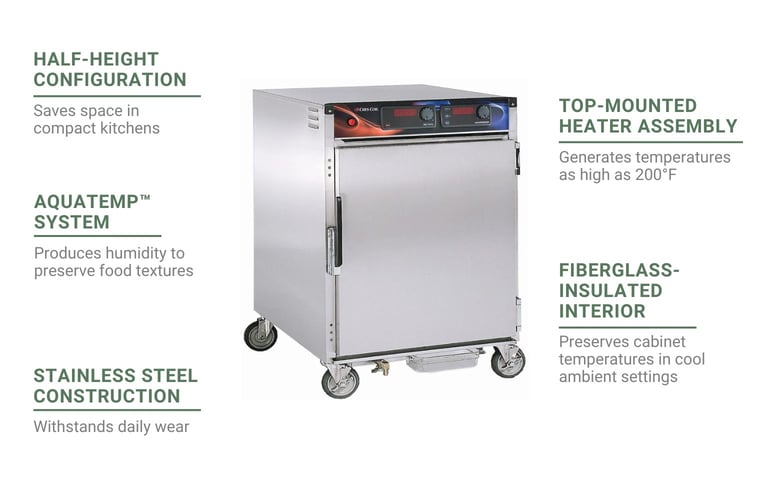

• Reach-in, half-height model
• Load capacity: 1,000 lbs.
• 6 sets of stainless steel wire universal angles (adjustable on 1¹⁄₂-in. centers)
• Angles accommodate various pan sizes
• Stainless steel construction
• Structurally rigid internal frame and reinforced internal base
• Field-reversible door with silicone gasket
• Easy-open, antimicrobial ceramic magnetic latch
• Twist-lock catch
• Fiberglass-insulated interior
• Smooth, coved interior corners
• Integral front drip trough
• (4) 5-in. heavy-duty swivel casters (2 with brakes)

Heating & Humidity System

• Individual holding and humidity solid-state digital display controls
• Powerful top-mounted heater
• Maximum temperature: 200 degrees F
• Digital thermometer
• Blower motor
• Vent fan
• AquaTemp humidity system
• Maximum humidity: 95 percent
• 4-gal. 16-ga. stainless steel water pan with heater
• Low water indicator
• Water heater shuts off when water levels are low
• On/off push button

Dimensions & Utilities

• Interior: 22 in. W x 26³⁄₄ in. D x 28 in. H
• Overall: 28¹⁄₄ in. W x 33³⁄₈ in. D x 43³⁄₈ in. H
• 16 A, 2,000 W
• 120 V/60 Hz/1 ph, includes 10-ft. cord with a NEMA 5-20P plug

Product Features

*Free shipping on Cres Cor H-137-WSUA-6D within the 48 contiguous states.

From The Manufacturer

Cabinet, Mobile Heated, with AquaTemp™ humidity cabinet, insulated, top-mount heater assembly, magnetic latch, (6) sets of stainless steel wire universal angle slides on 4-1/2" adjustable 1-1/2" centers, LED digital display, field reversible door, (4) heavy duty 5" swivel casters (2) braked, anti-microbial latches, stainless steel construction, NSF, cCSAus

*Image may not depict product color, inclusions or accessories.

3-year Parts; 1-year Labor
