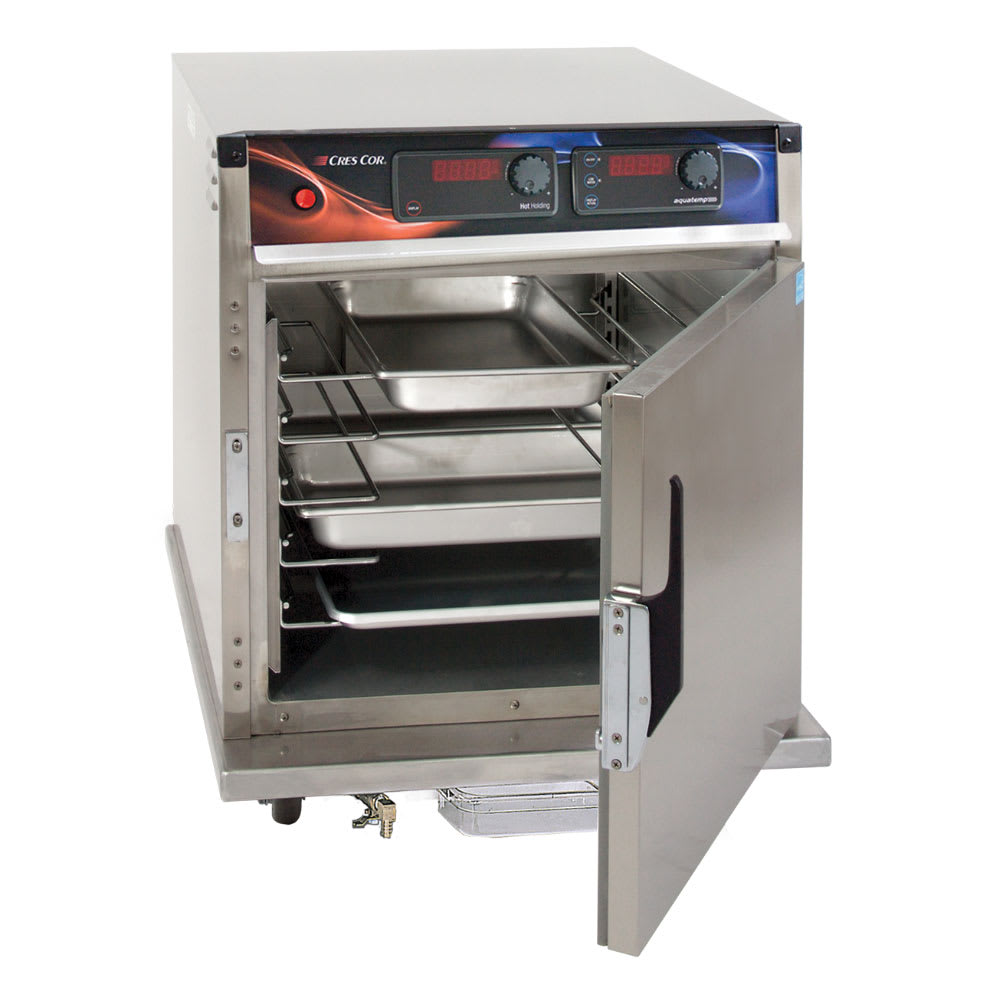

Cres Cor H-137-WSUA-5D Undercounter Insulated Mobile Heated Cabinet w/ (5) Pan Capacity, 120v

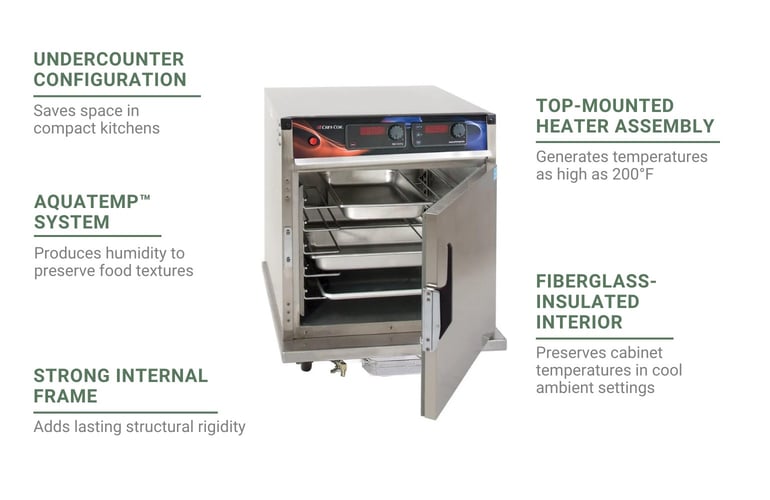

Built for compact kitchens, the Cres Cor H-137-WSUA-5D undercounter hot cabinet measures 28¹⁄₄ inches wide by 33³⁄₈ inches deep by 31³⁄₄ inches high. Its rust-, corrosion-, and wear-resistant stainless steel exterior features a structurally rigid internal frame and reinforced base that provide strength to support as much as 600 pounds and withstand collisions during transport. Its field-reversible door can be opened quickly with its antimicrobial ceramic magnetic latch; as the cabinet is moved, its twist-lock catch ensures it remains closed. For smooth maneuvering, this system is furnished with 2¹⁄₂-inch swivel casters, and two casters have brakes. Inside the coved cabinet, five sets of stainless steel wire universal angles accommodate variously sized pans and can be adjusted on 1¹⁄₂-inch centers.

This Cres Cor H-137-WSUA-5D insulated hot cabinet uses a powerful, top-mounted heater and an AquaTemp™ system to generate the heat and humidity that meals need to remain at safe holding temperatures without becoming dry. Users can adjust the heater's temperatures as high as 200 degrees Fahrenheit via the holding thermostat's solid-state digital display control, which shows an accurate temperature on its digital thermometer. Humidity can be manipulated to a maximum of 95 percent with the humidity thermostat, which activates the 4-gallon heated water pan. When water levels drop, an LED indicator light notifies the operator; the water heater shuts off automatically when water levels are low. To preserve programmed heat and humidity, 2-inch fiberglass insulation is built into the sides, while 1¹⁄₂-inch fiberglass insulates the door, base, and top.

Product Details

• Undercounter, reach-in model
• 600-lb. load capacity
• 5 sets of stainless steel wire universal angles (adjustable on 1¹⁄₂-in. centers)
• Angles support variously sized pans
• Stainless steel construction with structurally rigid internal frame and reinforced internal base
• Field-reversible door with silicone gasket
• Easy-open, high-temperature ceramic magnetic latch with antimicrobial protection agent
• Twist-lock catch
• Fiberglass insulation built into interior
• Smooth, coved interior corners
• Integral drip trough on front
• (4) 2¹⁄₂-in. heavy-duty swivel casters (2 with brakes)

Heating & Humidity System

• Top-mounted heater
• Maximum temperature: 200 degrees F
• AquaTemp humidity system
• Maximum humidity: 95 percent
• Individual holding and humidity solid-state digital display controls
• Digital thermometer
• Blower motor
• Vent fan
• 4-gal. 16-ga. stainless steel water pan with heater
• Low water indicator
• Water heater shuts off when water levels are low
• On/off push button

Dimensions & Utilities

• Interior: 22 in. W x 26³⁄₄ in. D x 19¹⁄₄ in. H
• Overall: 28¹⁄₄ in. W x 33³⁄₈ in. D x 31³⁄₄ in. H
• 16 A, 2,000 W
• 120 V/60 Hz/1 ph, includes 10-ft. cord with a NEMA 5-20P plug

Product Features

*Free shipping on Cres Cor H-137-WSUA-5D within the 48 contiguous states.

From The Manufacturer

Cabinet, Mobile Heated, with AquaTemp™ humidity cabinet, insulated, top-mount heater assembly, magnetic latch, (5) sets of stainless steel wire universal angle slides on 3" adjustable 1-1/2" centers, LED digital display, field reversible doors, (4) heavy duty 2-1/2" swivel casters (2) braked, anti-microbial latches, stainless steel construction, NSF, cCSAus

*Image may not depict product color, inclusions or accessories.

3-year Parts; 1-year Labor

Cres Cor H-137-WSUA-5D Specifications

Documents

Spec Sheet

Manual
