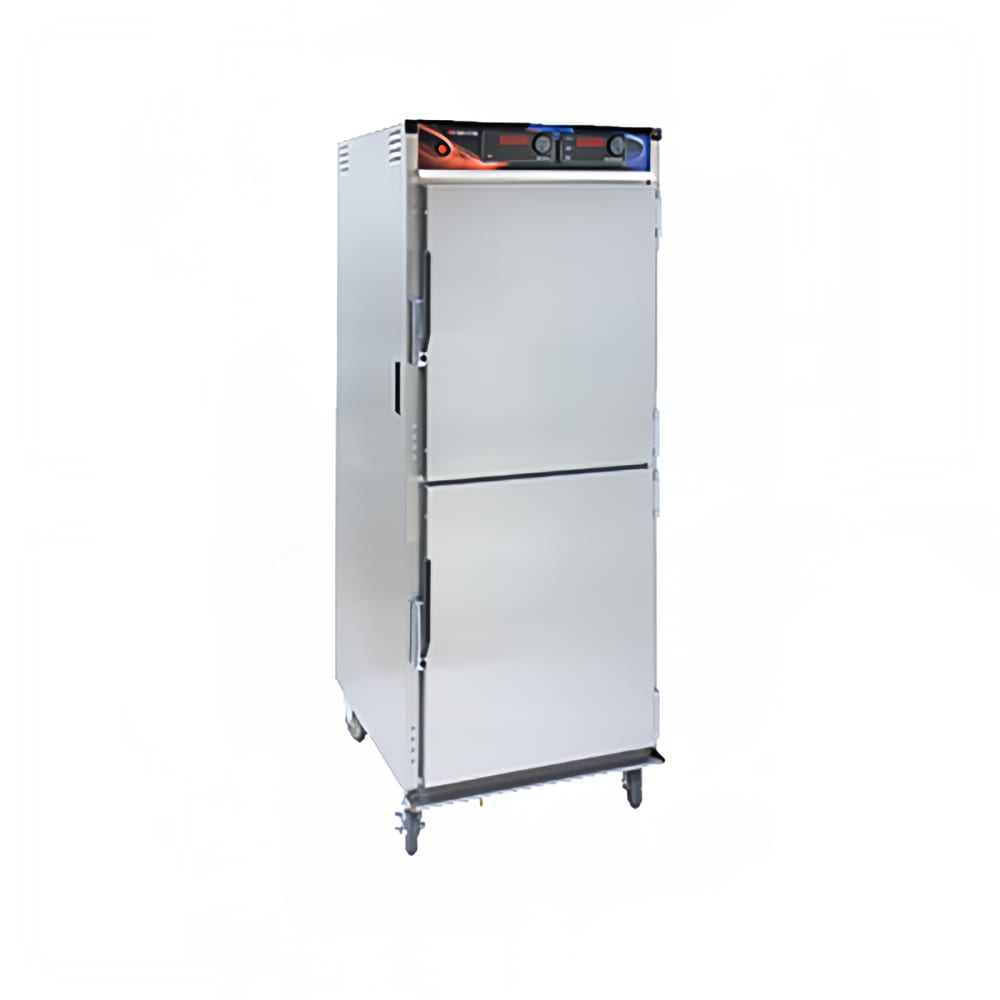

Cres Cor H-137-WSUA-12D-15A Full Height Insulated Mobile Heated Cabinet w/ (12) Pan Capacity, 120v

For high-volume applications, the Cres Cor H-137-WSUA-12D-15A humidity hot cabinet's 12 sets of stainless steel wire universal angle slides accommodate variously sized food pans. These slides can be raised or lowered on 1¹⁄₂-inch centers, and they're removable for cleaning. The cabinet's top-mounted heater assembly and AquaTemp™ system work in tandem to create balanced heat and humidity, ensuring prepared dishes are warm for serving while preventing them from becoming dry. Operators can use the holding thermostat's solid-state digital display control to adjust temperatures as high as 200 degrees Fahrenheit; its digital thermometer displays an accurate temperature readout to ensure meals are held safely. By using the humidity thermostat, users can modify cabinet humidity to a maximum of 95 percent. Its 4-gallon heated stainless steel water pan creates the humidity necessary to preserve food textures, and to keep the cabinet's front area dry, an integral drip trough collects the pan's leaks.

To preserve heat, the Cres Cor H-137-WSUA-12D-15A mobile heated cabinet's interior is insulated by fiberglass. Rather than opening simultaneously, its two Dutch doors open independently, enabling users to access specific cabinet sections to reduce heat loss. These doors are simple to open with their high-temperature ceramic magnetic latches, and they're treated with an antimicrobial protection agent that slows bacterial spread between regular cleanings. Silicone door gaskets ensure the doors seal properly; twist-lock catches keep them closed during transport. This 28¹⁄₄-inch-wide by 32⁹⁄₁₆-inch-deep by 73-inch-high unit's stainless steel construction includes a structurally rigid internal frame to support as much as 1,000 pounds and withstand repeated transport. Furnished with four 5-inch swivel casters, this full-height unit can round corners and reverse, and because two casters include brakes, it can remain in place during use.

Product Details

• Reach-in configuration
• Full height
• Load capacity: 1,000 lbs.
• 12 sets of stainless steel wire universal angles
• Angles adjustable on 1¹⁄₂-in. centers
• Angles accommodate various pan sizes
• Rust- and corrosion-resistant stainless steel construction
• Structurally rigid internal frame
• 2 field-reversible Dutch doors with antimicrobial latches and silicone door gaskets
• Easy-open, high-temperature ceramic magnetic latches
• Twist-lock catches ensure doors remain closed during transport
• 2-in. fiberglass insulation built into sides
• Top, base, and doors insulated with 1¹⁄₂-in. fiberglass
• Smooth, coved interior corners
• Recessed push/pull handles
• Integral drip trough
• (4) 5-in. heavy-duty swivel casters (2 with brakes)

Heating & Humidity System

• Top-mounted heating system generates 200 degrees F (maximum)
• AquaTemp humidity system produces humidity as high as 95 percent
• Separate holding and humidity solid-state digital display controls
• Digital thermometer
• Blower motor
• Vent fan
• 4-gal. 16-ga. stainless steel water pan with heater
• Low water indicator
• Water heater shut-off when water levels drop
• Power on/off push button

Dimensions & Utilities

• Interior: 21³⁄₄ in. W x 26⁷⁄₈ in. D x 58 in. H
• Overall: 28¹⁄₄ in. W x 32⁹⁄₁₆ in. D x 73 in. H
• 12 A, 1,500 W
• 120 V/60 Hz/1 ph, includes 10-ft. cord with a NEMA 5-15P plug

*Free shipping on Cres Cor H-137-WSUA-12D-15A within the 48 contiguous states.

From The Manufacturer

Cabinet, Mobile Heated, with AquaTemp™ humidity cabinet, insulated, top-mount heater assembly, recessed push/pull handles, magnetic latch, (12) sets of stainless steel wire universal angle slides on 4-1/2" adjustable 1-1/2" centers, LED digital display, field reversible dutch doors, (4) heavy duty 5" swivel casters (2) braked, anti-microbial latches, stainless steel construction, NSF, CSA, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts; 1-year Labor
