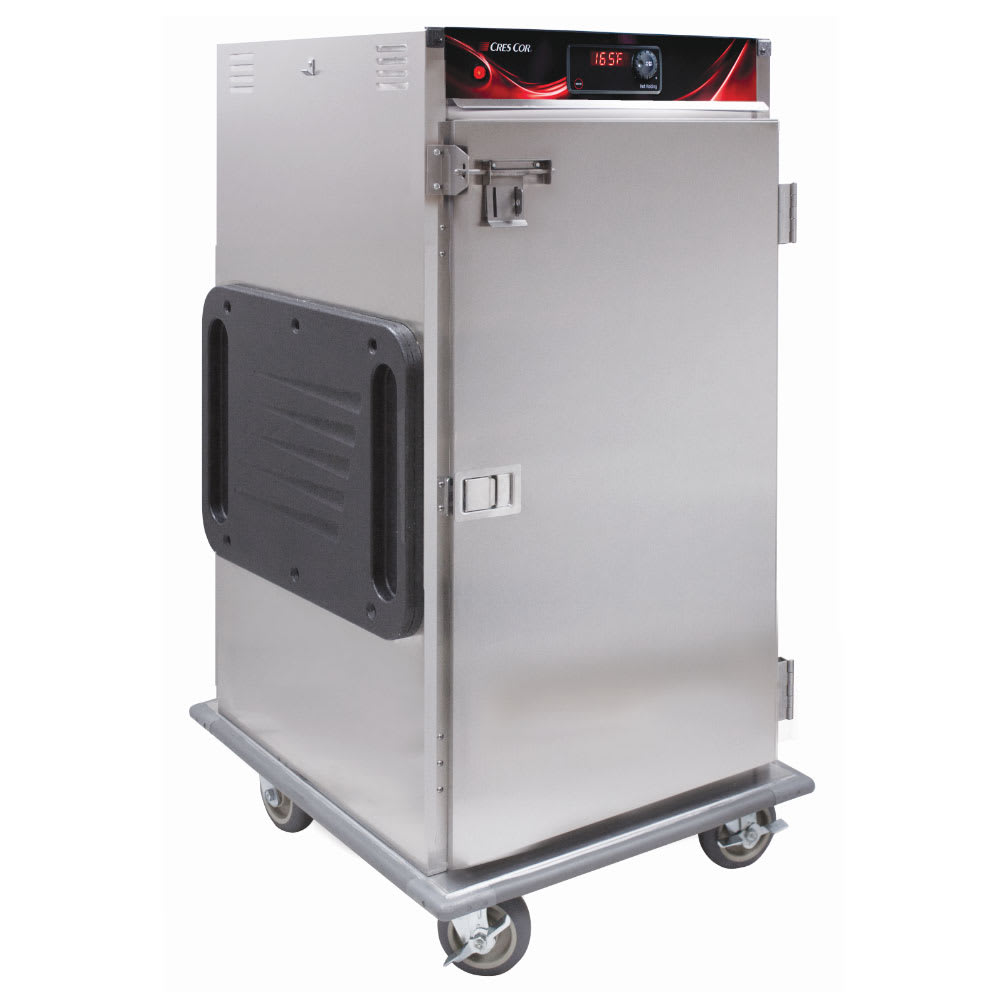

Cres Cor H-137-SUA-9D-SD 3/4 Height Insulated Mobile Heated Cabinet w/ (9) Pan Capacity, 120v

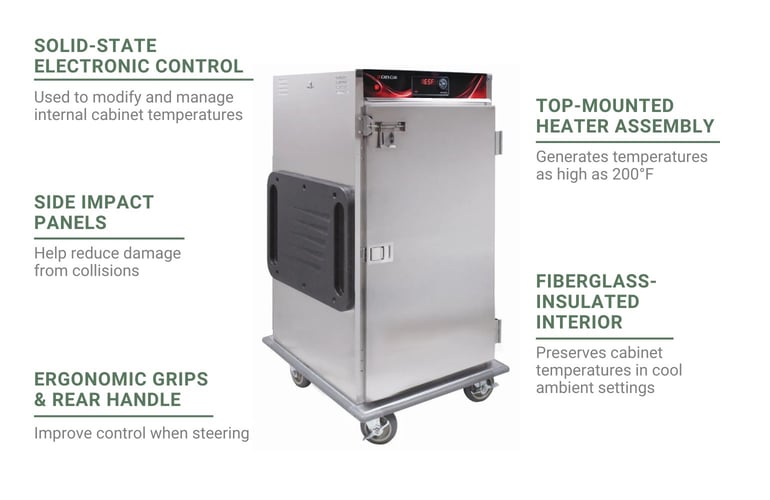

Prepared meals can be held at safe serving temperatures in this Cres Cor H-137-SUA-9D-SD hot cabinet, which is heated by a 1,500-watt heating system that generates temperatures as high as 200 degrees Fahrenheit. Operators can modify cabinet temperatures using the solid-state electronic control to accommodate specific holding needs; its large LED digital display provides an accurate temperature readout. Fiberglass insulation built into the sides, doors, base, and top preserves temperatures if the unit is stored in cool ambient environments or when pans are loaded and removed. Inside the cabinet, nine sets of locking universal transport angles accommodate nine 18-inch by 26-inch baking pans or (18) 12-inch by 20-inch steam table pans, and they can be adjusted on 1¹⁄₂-inch centers. Two right-hinged Dutch doors enable operators to access pans directly, and their lockable slide-bolt door latches ensure they remain closed during transport.

Meant to transport meals from kitchens to serving areas and vice versa, the Cres Cor H-137-SUA-9D-SD insulated heated cabinet is furnished with four 6-inch swivel casters; two casters have brakes to secure it in place. Despite its 30¹⁄₂-inch-wide by 34⁷⁄₈-inch-deep by 58⁵⁄₈-inch-high structure, this unit can be maneuvered with ease due to its ergonomic side grips and rear handle. Its impact panel protection prevents wall damage from collisions, and the base's full-perimeter bumper resists impact damages. Constructed of rust- and corrosion-resistant stainless steel, this cabinet includes a sturdy internal frame that adds structural rigidity, while its extended base protects the body.

Product Details

• Part of the Super Duty Hot Cabinet series
• ³⁄₄-height, reach-in unit
• 1,800-lb. load capacity
• Accommodates (18) 12-in. x 20-in. steam table pans or (9) 18-in. x 26-in. baking pans
• 9 sets of locking universal transport angles
• Angles are adjustable on 1¹⁄₂-in. centers
• Stainless steel construction
• Structurally rigid internal frame
• 1-piece, extended base to protect cabinet body
• Super-duty composite side-impact panel protection with ergonomic grips on both sides
• Rear push/pull handle
• 2-in.-thick fiberglass insulation in sides
• 1¹⁄₂-in. fiberglass insulation built into doors, base, and top
• 2 right-hinged Dutch doors with lockable slide-bolt door latches
• Smooth interior with coved corners
• Full-perimeter bumper
• (4) 6-in. heavy-duty modulus swivel casters (2 with brakes)
• Top-mounted heater assembly
• Heats as high as 200 degrees F
• Solid-state digital display control
• LED digital display

Dimensions & Utilities

• Interior: 22 in. W x 26⁷⁄₈ in. D x 42 in. H
• Overall: 30¹⁄₂ in. W x 34⁷⁄₈ in. D x 58⁵⁄₈ in. H
• 12 A, 1,500 W
• 120 V/60 Hz/1 ph, includes 10-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on Cres Cor H-137-SUA-9D-SD within the 48 contiguous states.

From The Manufacturer

Cabinet, Mobile Heated, insulated, top-mount heater assembly, lockable slide bolt door latches, (9) sets extruded aluminum transport angles, slides on 4-1/2" centers adjustable 1-1/2" centers, side impact panels, field reversible doors, solid state electronic control, LED digital display, full perimeter bumper, rear push/pull handle, dry erase panel, (4) heavy duty 6" modulus casters (2) braked, perimeter bumper, stainless steel construction, NSF, cCSAus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts; 1-year Labor

Cres Cor H-137-SUA-9D-SD Specifications

Documents

Spec Sheet

Manual
