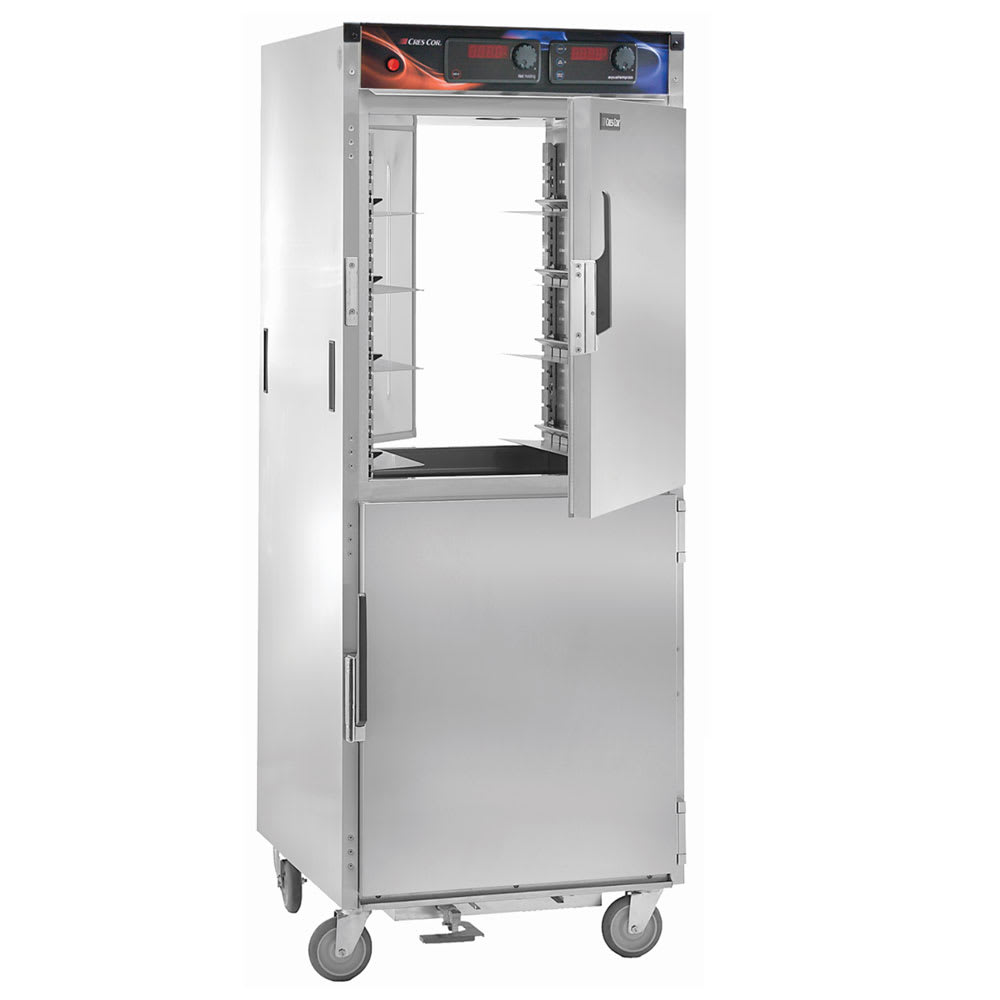

Cres Cor H-137-PWSUA-12D Full Height Insulated Mobile Heated Cabinet w/ (12) Pan Capacity, 120v

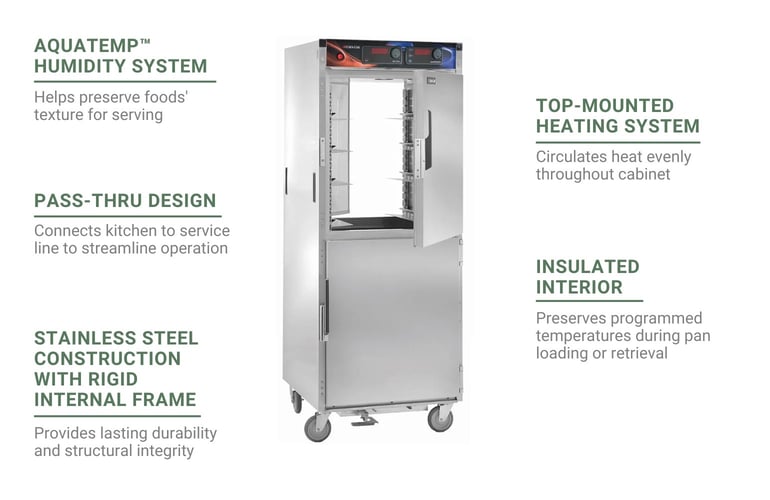

To ensure prepared dishes are held at safe temperatures for serving, this Cres Cor H-137-PWSUA-12D insulated hot cabinet features a powerful top-mounted heating system that produces temperatures as high as 200 degrees Fahrenheit. Fiberglass insulation built into the sides, doors, top, and base maintain temperatures as the doors are opened for pan loading and retrieval. Because foods can become dry when held at high temperatures, this cabinet includes an AquaTemp™ system, which enables users to adjust humidity as high as 95 percent to preserve foods' textures. A 4-gallon, 16-gauge stainless steel water pan holds the water required for generating humidity, and when water levels are low, the water heater shuts off automatically. Operators can modify temperatures, adjust humidity percentages, and manage timers using the solid-state digital display controls that include a power button and LED digital displays.

Specific compartment sections can be accessed using the Cres Cor H-137-PWSUA-12D hot cabinet’s two front Dutch doors and two rear Dutch doors, reducing heat loss that occurs when opening the entire cabinet. While all the doors ship right hinged, they can be reversed in the field to accommodate various kitchen spaces. This single-section, pass-thru configuration can be used to connect a prep station to a serving area for streamlined operation. Inside the cabinet, 12 sets of stainless steel wire universal angles accommodate variously sized pans for versatility, and to achieve specific results, the angles can be adjusted on 1¹⁄₂-inch centers. Constructed of rigid, corrosion-resistant stainless steel, this unit features a reinforced internal frame and base that maintains structural integrity through high-volume use. This 28¹⁄₄-inch-wide by 34⁵⁄₈-inch-deep by 73¹⁄₂-inch-high cabinet is furnished with heavy-duty 5-inch swivel casters, and two of these casters include brakes for stability. Recessed handles on both sides improve steering control while protecting walls from damage during collisions.

Product Details

• Pass-thru, full-height system
• 1 section
• 250-lb. load capacity
• Stainless steel construction with rigid internal frame and base
• Recessed push/pull handles on sides
• 4 right-hinged, field-reversible Dutch doors (2 front, 2 rear)
• Antimicrobial, easy-to-open magnetic latches
• Silicone door gaskets
• Fiberglass-insulated interior
• Smooth, coved corners
• Integral front drip trough
• 12 sets of stainless steel universal angles adjustable on 1¹⁄₂-in. centers
• Accommodates variously sized pans
• (4) 5-in. swivel casters (2 with brakes)

Heating & Humidity Details

• Top-mounted heater assembly
• Maximum temperature: 200 degrees F
• AquaTemp system with maximum of 95 percent humidity
• 16-ga. stainless steel water pan with 4-gal. capacity and heater
• Holding thermostat with solid-state digital display control
• Humidity thermostat with solid-state digital display control
• Digital thermometer
• On/off button

Dimensions & Utilities

• Interior: 21³⁄₄ in. W x 26⁷⁄₈ in. D x 58 in. H
• Overall: 28¹⁄₄ in. W x 34⁵⁄₈ in. D x 73¹⁄₂ in. H
• 16 A, 2000 W
• 120 V/60 Hz/1 ph, includes 10-ft. cord with a NEMA 5-20P plug

Product Features

*Free shipping on Cres Cor H-137-PWSUA-12D within the 48 contiguous states.

From The Manufacturer

Cabinet, Mobile Heated, pass-thru, with AquaTemp™ humidity cabinet, insulated, top-mount heater assembly, solid state electronic control with digital display, recessed push/pull handle, (12) sets of stainless steel plated wire universal angle slides on 4-1/2" adjustable 1-1/2" centers, field reversible dutch doors, anti-microbial magnetic door latches, (4) 5" swivel casters (2) braked, stainless steel construction, NSF, cCSAus

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor
