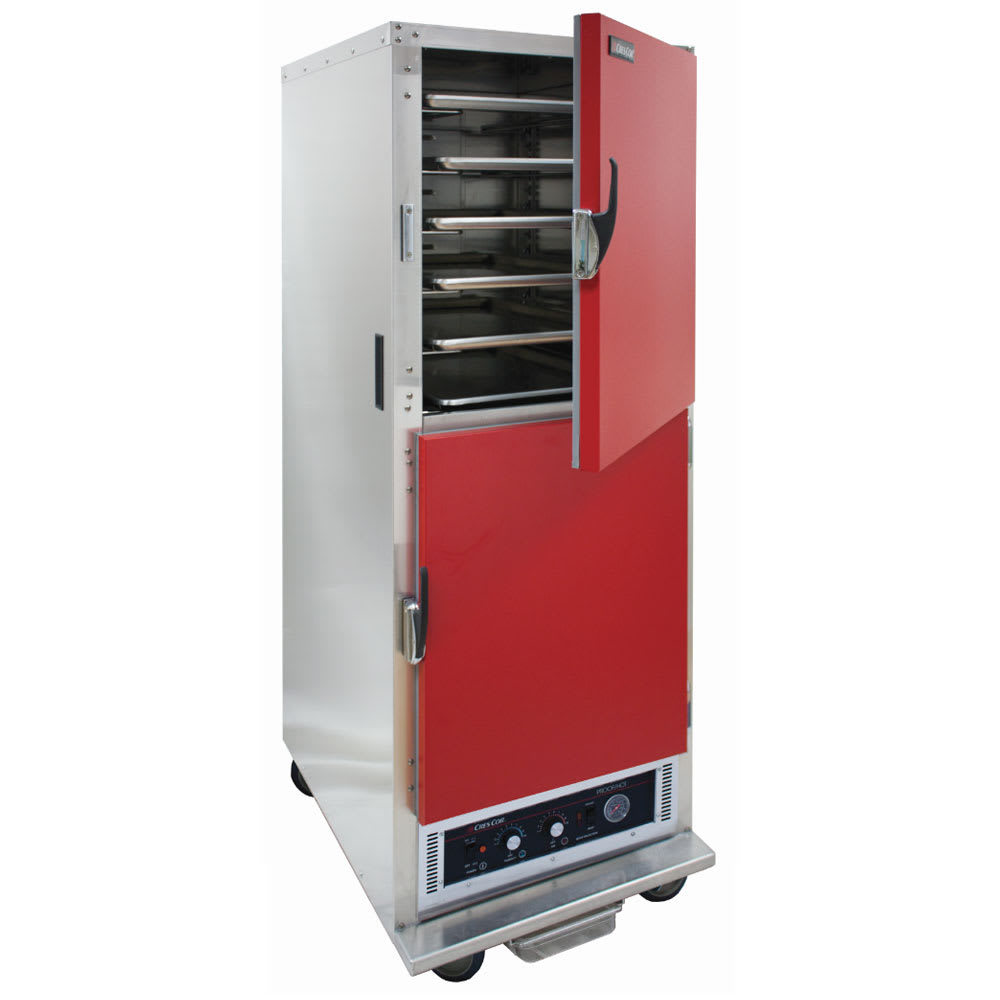

Cres Cor H-135-WSUA-11-R Full Height Insulated Mobile Heated Cabinet w/ (11) Pan Capacity, 120v

To ensure prepared foods are hot and textures are preserved when they're served, the Cres Cor H-135-WSUA-11-R insulated hot cabinet can hold foods at temperatures as high as 200 degrees Fahrenheit and produce as much as 95 percent humidity. Operators can control both settings using two electromechanical thermostats, while a thermometer provides a clear readout of the cabinet's internal temperature. A 3¹⁄₂-quart stainless steel water pan holds the water required for creating humidity, and an integral drip trough ensures the unit's front remains dry to prevent product damage and slips or falls. To preserve programmed settings, the interior is insulated with temperature-preserving fiberglass, helping reduce heat loss when its doors are opened or it's stored in cool areas.

This Cres Cor H-135-WSUA-11-R AquaTemp™ hot cabinet's interior includes 11 sets of wire universal angles that can be adjusted on 1¹⁄₂-inch centers to accommodate variously sized pans. Two right-hinged Dutch doors provide direct access to specific compartment sections so the entire cabinet isn't exposed, which can help reduce heat loss. Constructed of durable, wear- and corrosion-resistant stainless steel, this unit withstands daily use in commercial settings, and for a unique splash of color, its doors come in red. Its rigid internal frame adds structural support as high volumes of pans are loaded and unloaded over time and it's transported between various areas. Heavy-duty 5-inch swivel casters can turn and reverse, and two casters include brakes for stabilization. To steer this 25³⁄₄-inch-wide by 33¹⁄₂-inch-deep by 69³⁄₄-inch-high model, there are recessed handles built into its side.

Product Details

• Reach-in, full-height unit with 1 compartment
• Load capacity: 250 lbs.
• Stainless steel construction with structurally rigid internal frame
• Recessed push/pull handles on sides
• 2 right-hinged, field-reversible red Dutch doors
• Antimicrobial, easy-to-open magnetic latches
• Fiberglass-insulated interior
• Adjustable wire pan supports on 1¹⁄₂-in. centers accommodate variously sized pans
• Integral front drip trough
• (4) 5-in. swivel casters (2 with brakes)

Heating & Humidity Details

• Removable, bottom-mounted heating unit
• Maximum temperature: 200 degrees F
• AquaTemp system with 95-percent max humidity
• 3¹⁄₂-qt. stainless steel water pan
• Black slanted control panel is removable for maintenance and cleaning
• 2 electromechanical thermostats
• Thermometer
• On/off rocker switch

Dimensions & Utilities

• Interior: 21³⁄₄ in. W x 27 in. D x 54 in. H
• Overall: 25³⁄₄ in. W x 33¹⁄₂ in. D x 69³⁄₄ in. H
• 16 A, 2000 W
• 120 V/60 Hz/1 ph, includes 6-ft. cord with molded right-angle NEMA 5-20P plug

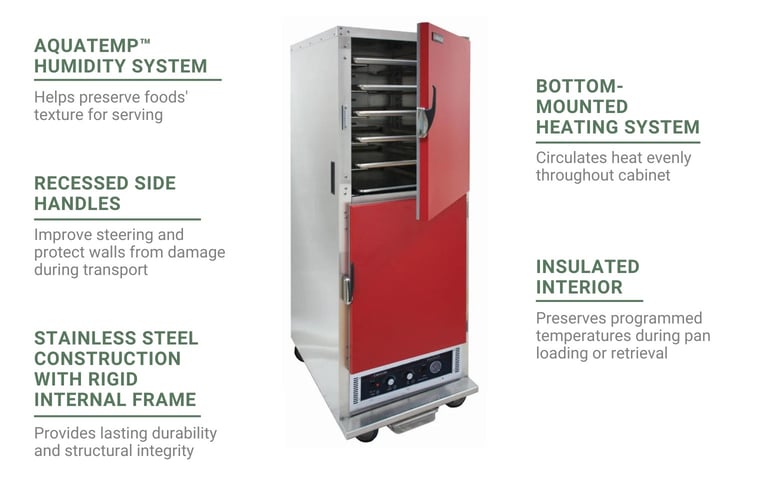

Product Features

*Free shipping on Cres Cor H-135-WSUA-11-R within the 48 contiguous states.

From The Manufacturer

Cabinet, Mobile Heated, with humidity, insulated, bottom-mount heater assembly, recessed push/pull handles, (11) sets of chrome plated wire universal angle slides on 4-1/2" centers adjustable 1-1/2" centers, red dutch doors, anti-microbial latches, analog thermometer, integral drip tough, (4) 5" swivel casters (2) braked, stainless steel construction, 2000watt, cCSAus, CSA-Sanitation, 120v/60/1ph

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor

Cres Cor H-135-WSUA-11-R Specifications
