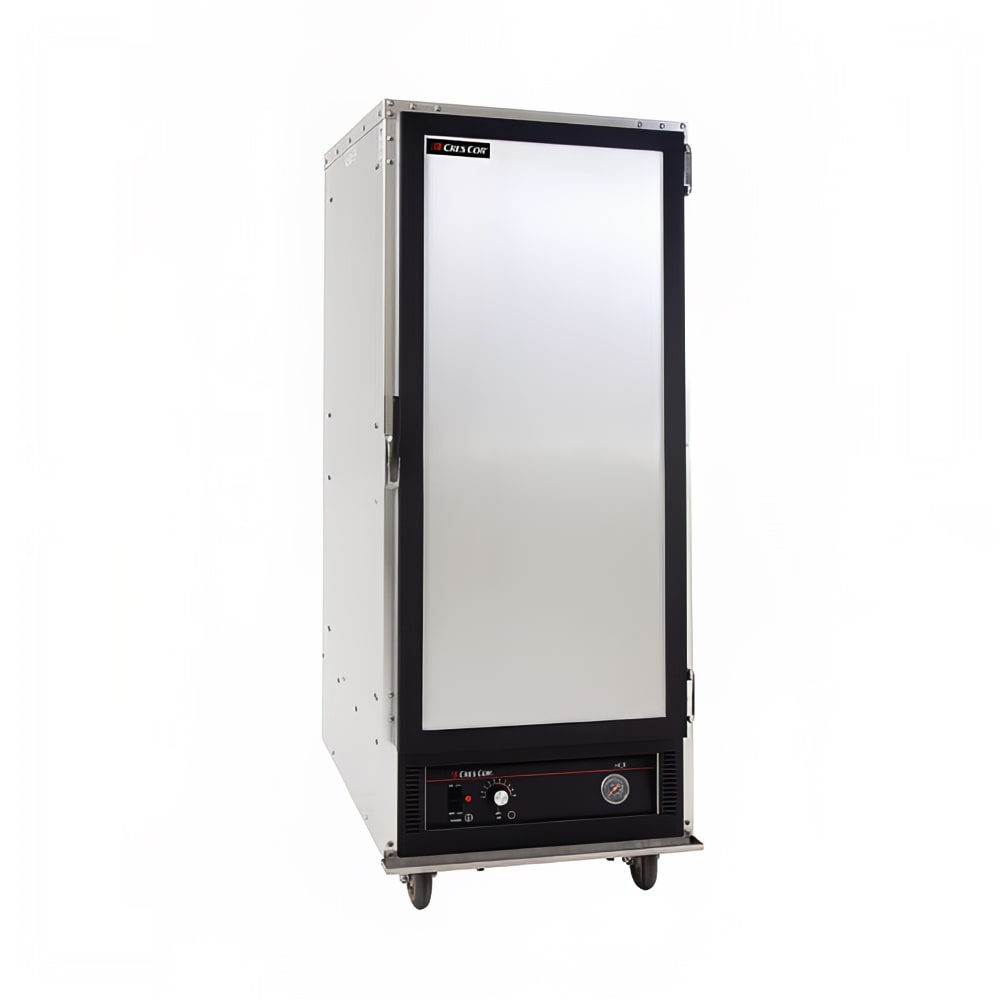

Cres Cor 131-UA-9D 3/4 Height Non-Insulated Mobile Heated Cabinet w/ (9) Pan Capacity, 120v

To ensure prepared foods are held at safe temperatures before serving, the Cres Cor 131-UA-9D noninsulated hot cabinet's bottom-mounted heating system produces and maintains temperatures as high as 180 degrees Fahrenheit. Operators can adjust heat quickly with the mechanical thermostat, while its thermometer is positioned on a slanted panel to provide an accurate temperature readout so operators can manage internal temperatures. Whenever maintenance or cleaning is necessary, the control panel can be removed. While this system isn't insulated, its perimeter door gasket helps minimize heat loss, and operators can modify temperatures without opening the door. Overall, the cabinet's nine universal wire angles accommodate variously sized pans and can be adjusted on 1¹⁄₂-inch centers.

As a ³⁄₄-height unit, the Cres Cor 131-UA-9D heated mobile cabinet measures 24¹⁄₄ inches wide by 32 inches deep by 57³⁄₄ inches high. Four 5-inch swivel casters are built onto its base, enabling operators to reverse this unit and move it around corners; two casters have brakes that stabilize it when needed. To withstand impact and daily use, its body is constructed of corrosion-resistant, hi-tensile aluminum with a fully welded extruded frame. Its right-hinged door features a magnetic-type latch that ensures the door remains closed during transport so contents won’t fall out of the cabinet.

Product Details

• ³⁄₄-height, reach-in model
• 1 compartment
• Noninsulated
• Load capacity: 250 lbs.
• Removable, bottom-mounted heater
• Black, slanted control panel with mechanical thermostat and thermometer
• On/off rocker switch
• Maximum temperature: 180 degrees F
• 9 wire universal angles adjustable on 1¹⁄₂-in. centers
• Accommodates variously sized pans
• Hi-tensile aluminum construction with extruded, fully welded frame
• 1 right-hinged, field-reversible door
• Heat-retaining perimeter door gasket
• Magnetic-type antimicrobial latch
• (4) 5-in. swivel casters (2 with brakes)

Dimensions & Utilities

• Interior: 21¹⁄₄ in. W x 28¹⁄₄ in. D x 42³⁄₈ in. H
• Overall: 24¹⁄₄ in. W x 32 in. D x 57³⁄₄ in. H
• 16.7 A, 2000 W
• 120 V/60 Hz/1 ph, includes 6-ft. cord with molded NEMA 5-20P plug

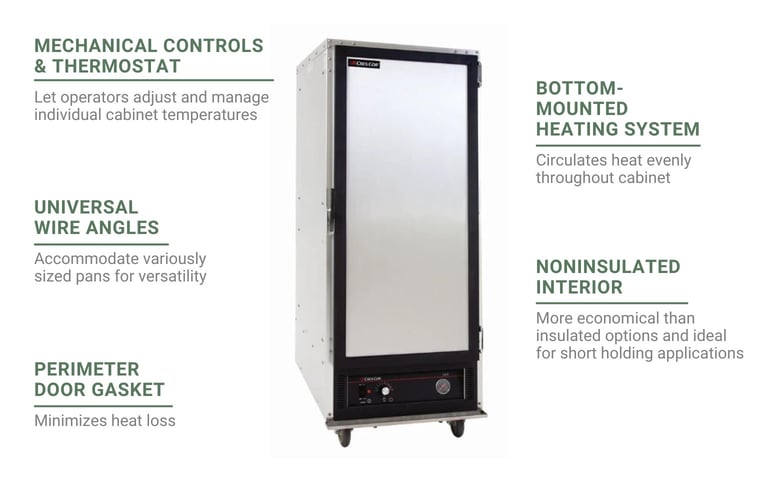

Product Features

*Free shipping on Cres Cor 131-UA-9D within the 48 contiguous states.

From The Manufacturer

Cabinet, Mobile Heated, non-insulated with bottom-mount heater, magnetic latch, (9) universal slides for 12" x 20" thru 18" x 26" pans, slides on 4-1/2" centers adjustable on 1-1/2", (4) 5" swivel casters (2) braked, aluminum exterior & interior, cCSAus, CSA

*Image may not depict product color, inclusions or accessories.

1-year Parts; 90-day Labor

Cres Cor 131-UA-9D Specifications

Documents

Spec Sheet

Manual
