Everest Refrigeration EOMV-60-B-28-S 60" Vertical Open Air Cooler w/ (4) Levels, Black, 115v

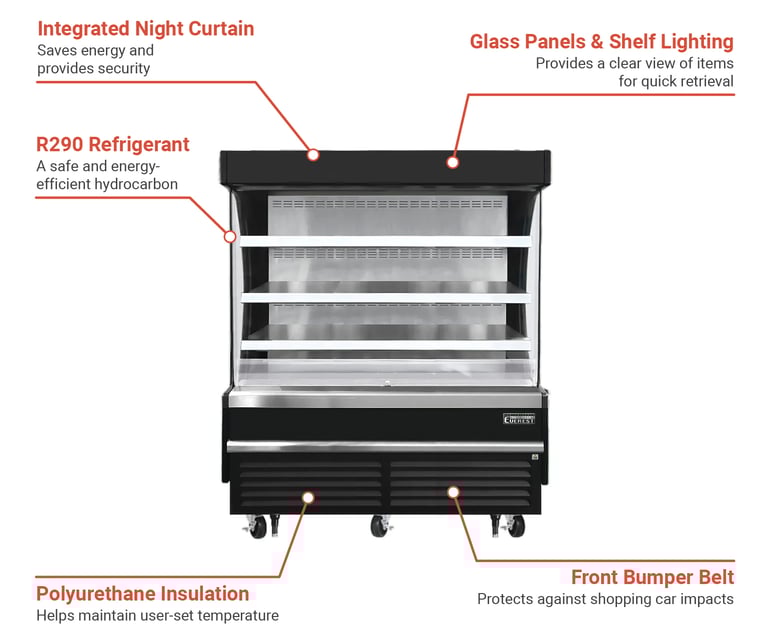

To maximize available interior space, the Everest Refrigeration EOMV-60-B-28-S open-air merchandiser has two half shelves on each level to provide a total of six shelves and four storage levels. To provide durability and corrosion resistance, both the interior and shelves are constructed of stainless steel. The back wall is perforated to evenly distribute cold air around shelf items, while electronically commutated fan motors help streamline cooling with less energy consumption. The exterior has a black-coated design to make this unit compatible with most equipment set ups. The front side is equipped with a stainless steel bumper belt to protect against accidental shopping cart impacts.

Ideal for grocery stores, school cafeterias, or other locations offering self-service cool storage, the Everest Refrigeration EOMV-60-B-28-S open-air cooler has a front air intake and rear air discharge design that permits side-by-side installation to create a continuous lineup of units. The interior spans 15.4 cubic feet and is encased with 2 inches of polyurethane insulation to help retain cool conditions. This merchandiser has an audible overheat alarm that sounds if the cabinet experiences an unwanted temperature shift. For optimal performance, this unit should be placed in an air-conditioned space away from direct sunlight.

Product Details

• From the EOMV series
• 15.4-cu.-ft. net capacity
• 4 levels
• Black exterior
• Field-replaceable, moisture-resistant side panels made of tempered glass
• Heavy-duty stainless steel interior
• Perforated back wall
• Top, bottom, and rear are made of galvanized steel
• Front stainless steel bumper belt
• 2¹/₂-in. polyurethane insulation
• 6 stainless steel half shelves with price tag moldings
• Shelves positioned as flat or at a slight 10-degree downward angle
• Shielded LED bar lighting with on/off switch under shelves and canopy
• Retractable night curtain
• (4) 5-in. swivel casters with locks on front set
• Leg stabilizers

Refrigeration System

• Self-contained, bottom-mounted design
• Eco-friendly R290 refrigerant
• Average product temperature: 40 degrees F or less
• Factory preset temperature: 35 degrees F
• Front air intake and rear air discharge system
• Audible overheat protection alarm
• Electronically commutated fan motors
• Condensate drain pan
• No external drains or electric heaters required
• Auto-reverse condenser fan motor

Operating Conditions

• Designed for air-conditioned environments where temperature and humidity doesn't exceed 80 degrees F and 55 percent
• Must not be installed near ventilation systems, fans, or exterior doors or windows
• Must not be installed in direct sunlight
• 6-in. clearance required on the front, back, and top for built-in applications

Dimensions & Utilities

• 60 in. W x 28³/₈ in. D x 60¹/₈ in. H
• 10 A, (2) ¹/₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P plug

Product Features

*Free shipping on Everest Refrigeration EOMV-60-B-28-S within the 48 contiguous states.

From The Manufacturer

Vertical Open Display Merchandiser, 60"W x 28-3/8"D x 60-1/8"H, 15.4 cu. ft. capacity, self-contained bottom mount refrigeration, front air intake & rear air discharge, LED lighting in canopy & underneath shelves, retractable night curtain, (6) adjustable stainless steel shelves, overheat protection alarm, stainless steel interior, black exterior, 5" front swivel casters with locks & leg stabilizers, R290 Hydrocarbon refrigerant, (2) 1/2 HP, 115v/60/1-ph, 10.0 amps, cord, NEMA 5-20P, ETL-Sanitation, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Electrical; 5-year Compressor

Everest Refrigeration EOMV-60-B-28-S Specifications

Documents

Spec Sheet

Warranty

Manual

Catalog
