Everest Refrigeration EOMV-48-W-28-S 48" Vertical Open Air Cooler w/ (4) Levels, White, 115v

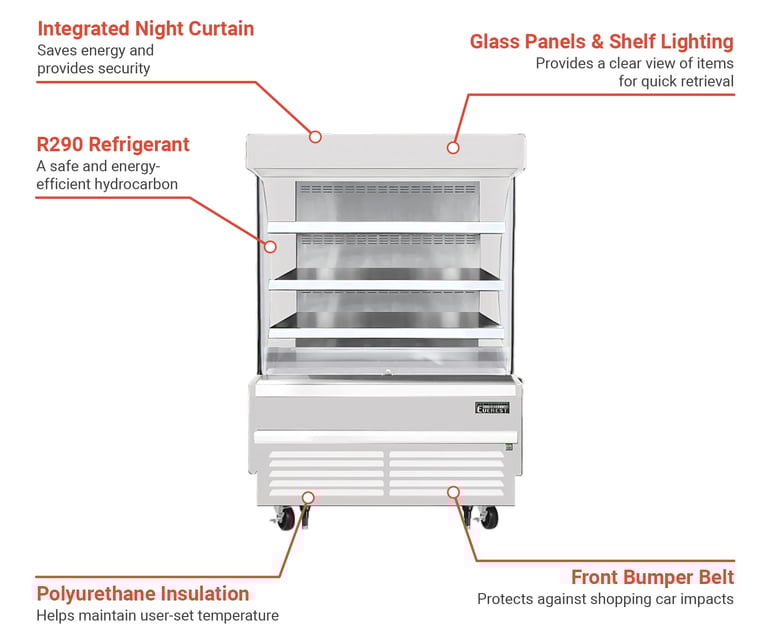

To provide a clear view of shelf items, the Everest Refrigeration EOMV-48-W-28-S vertical display merchandiser has LED bar lighting underneath the shelves and canopy and moisture-resistant side panels made of tempered glass. The interior is constructed of stainless steel to extend its service life, and the exterior is white to complement surrounding equipment. The back wall in its interior has a perforated design to improve the airflow around stored items. For an efficient display, this unit has four stainless steel shelves to create five total storage levels. Each shelf is fitted with a price tag molding to help customers quickly see item prices.

Overall the Everest Refrigeration EOMV-48-W-28-S vertical open-air merchandiser measures 48 inches wide by 28³/₈ inches deep by 60¹/₈ inches high. This unit serves as a valuable addition to open-air cold storage and has a front air intake and rear air discharge system that enables side-by-side installation in a line-up of units. This unit relies on eco-friendly R290 hydrocarbon refrigerant and has an overheat alarm to notify staff of unintended temperature increases. For optimal functioning, this unit should be installed in an air-conditioned area that doesn't experience direct sunlight.

Product Details

• EOMV series
• 24-cu.-ft. interior
• 5 levels
• White exterior
• Field-replaceable and moisture-resistant side panels made of tempered glass
• Heavy-duty stainless steel interior
• Perforated interior back wall
• Top, bottom, and rear made of galvanized steel
• Front stainless steel bumper belt
• 2¹/₂-in. polyurethane foam insulation
• 4 stainless steel shelves featuring price tag moldings
• Shelves positioned as flat or 10-degree downward angle
• Shielded LED bar lighting with on/off switch under shelves and canopy
• Retractable night curtain
• 5-in. swivel casters with locks on front set
• Leg stabilizers

Refrigeration System

• Self-contained, bottom-mounted design
• Eco-friendly R290 hydrocarbon refrigerant
• Average product temperature: 40 degrees F or less
• Factory preset temperature: 35 degrees F
• Front air intake and rear air discharge system
• Audible overheat protection alarm
• Electronically commutated fan motors
• Condensate drain pan
• No external drains or electric heaters required
• Auto-reverse condenser fan motor

Operating Conditions

• Designed for air-conditioned environments where temperature and humidity doesn't exceed 80 degrees F and 55 percent
• Must not be installed near ventilation systems, fans, or exterior doors or windows
• Must not be installed in direct sunlight
• 6-in. clearance required on the front, back, and top for built-in applications

Dimensions & Utilities

• 48 in. W x 28³/₈ in. D x 60¹/₈ in. H
• 11 A, (2) ¹/₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P plug

Product Features

*Free shipping on Everest Refrigeration EOMV-48-W-28-S within the 48 contiguous states.

From The Manufacturer

Vertical Open Display Merchandiser, 48"W x 28-3/8"D x 60-1/8"H, 12.2 cu. ft. capacity, self-contained bottom mount refrigeration, front air intake & rear air discharge, LED lighting in canopy & underneath shelves, retractable night curtain, (3) adjustable stainless steel shelves, overheat protection alarm, stainless steel interior, white exterior, 5" front swivel casters with locks & leg stabilizers, R290 Hydrocarbon refrigerant, (2) 1/2 HP, 115v/60/1-ph, 11 amps, cord, NEMA 5-20P, ETL-Sanitation, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Electrical; 5-year Compressor
