Everest Refrigeration EOMV-48-B-28-S 48" Vertical Open Air Cooler w/ (4) Levels, Black, 115v

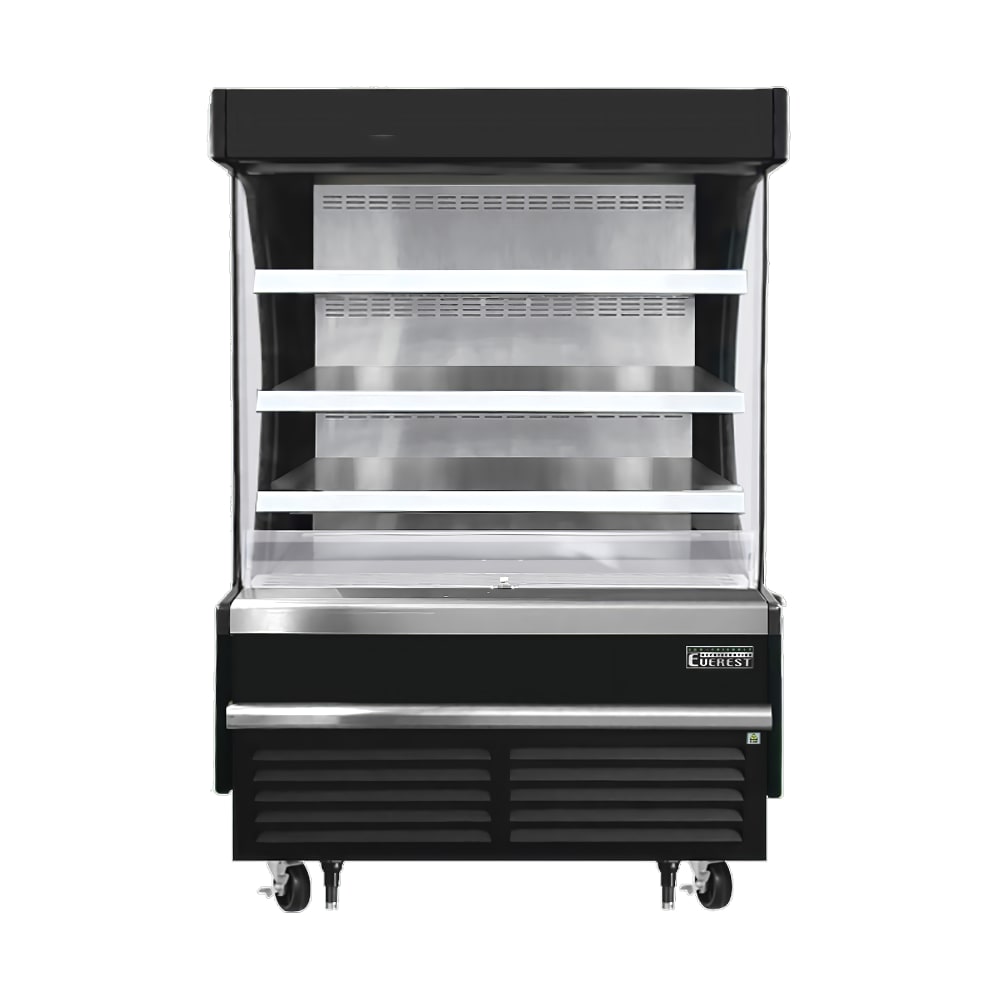

The exterior of the Everest Refrigeration EOMV-48-B-28-S vertical open-air cooler has a black coating that reduces the appearance of wear and can blend seamlessly with most equipment setups. This unit offers 12.2 cubic feet of interior space and measures 48 inches wide by 28³/₈ inches deep by 60¹/₈ inches high. The side panels are constructed of tempered glass and can be replaced in the field. The interior wall is perforated to facilitate proper airflow around stored items. This item comes with three stainless steel shelves which have shielded LED lighting installed below them to illuminate the cabinet. For an optimal display, each shelf has a price molding and can be positioned flat or at a slight downward 10-degree angle.

To permit maneuverability around a kitchen workspace, the Everest Refrigeration EOMV-48-B-28-S vertical open-air merchandiser sits atop four 5-inch swivel casters with locks on the front two. To reduce staff intervention, this unit has a self-contained refrigeration system that's bottom mounted to optimize interior space. To prevent impact damage, this unit has a front bumper belt made of durable stainless steel. This unit maintains an average product temperature of 40 degrees Fahrenheit and has a factory preset temperatures of 35 degrees Fahrenheit.

Product Details

• EOMV series
• 12.2-cu.-ft. interior capacity
• Black-coated exterior with moisture-resistant panels
• Tempered glass sides are field replaceable
• Stainless steel interior with perforated back wall
• Floor drains included
• Stainless steel front bumper belt
• Top, bottom, and rear constructed of galvanized steel

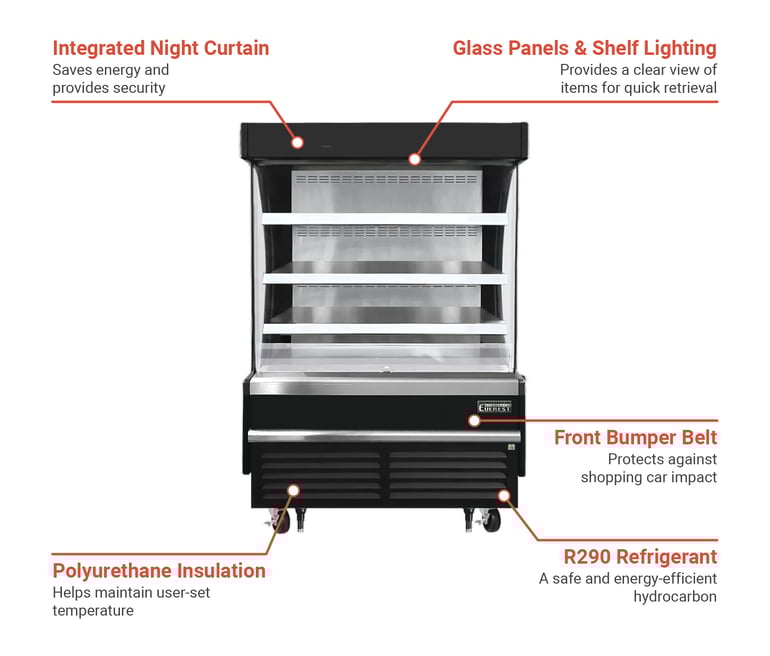

• Shielded LED interior bar lighting under shelves and canopy with on/off switch
• 2¹/₂-in. polyurethane insulation
• 3 stainless steel shelves featuring price tag moldings
• Shelves can be positioned as flat or slanted downward at 10 degrees F
• Integrated retractable night curtain
• (4) 5-in. swivel casters with locks on front set
• 2 leg stabilizers

Refrigeration System

• Bottom-mounted, self-contained design
• R290 hydrocarbon refrigerant
• Average product temperature of 40 degrees F or less
• Factory preset temperature: 35 degrees F
• Front air intake and rear air discharge system
• Audible overheat protection alarm
• Electronically commutated fan motors
• Condensate drain pan included
• No external drains or electric heaters required
• Auto-reverse condenser fan motor

Operating Conditions

• Designed for air-conditioned environments where temperature and humidity does not exceed 80 degrees F and 55 percent
• Must not be installed near ventilation systems, fans, or exterior doors or windows
• Must not be installed in direct sunlight
• 6-in. clearance required on the front, back, and top for built-in applications

Dimensions & Utilities

• 48 in. W x 28³/₈ in. D x 60¹/₈ in. H
• 10 A, ¹/₂ x 2
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P

Product Features

*Free shipping on Everest Refrigeration EOMV-48-B-28-S within the 48 contiguous states.

From The Manufacturer

Vertical Open Display Merchandiser, 48"W x 28-3/8"D x 60-1/8"H, 12.2 cu. ft. capacity, self-contained bottom mount refrigeration, front air intake & rear air discharge, LED lighting in canopy & underneath shelves, retractable night curtain, (3) adjustable stainless steel shelves, overheat protection alarm, stainless steel interior, black exterior, 5" front swivel casters with locks & leg stabilizers, R290 Hydrocarbon refrigerant, (2) 1/2 HP, 115v/60/1-ph, 10.0 amps, cord, NEMA 5-20P, ETL-Sanitation, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Electrical; 5-year Compressor
