Everest Refrigeration EOMV-36-B-28-S 37 1/4" Vertical Open Air Cooler w/ (4) Levels, Black, 115v

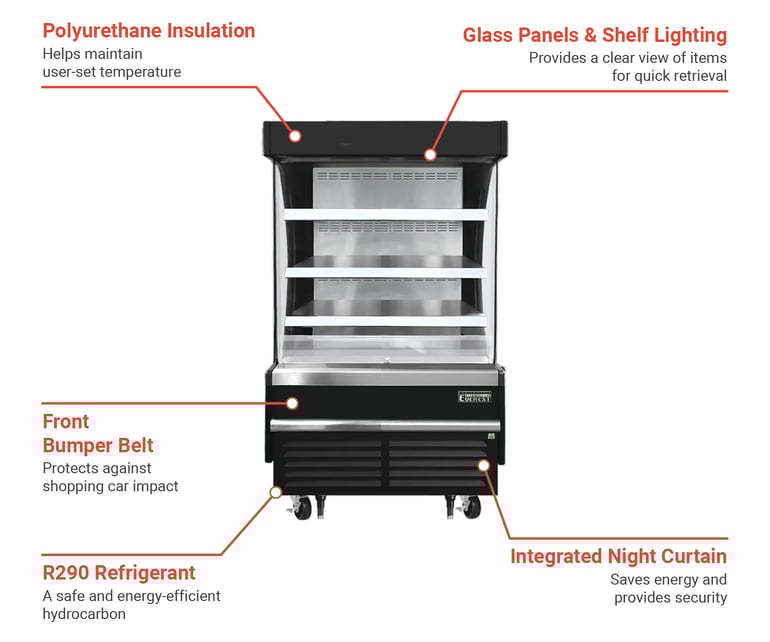

A good choice for grocery stores, gas stations, and similar settings, the Everest Refrigeration EOMV-36-B-28-S open air merchandiser measures 37¹/₄ inches wide by 28³/₈ inches deep by 65¹/₈ inches high, and spans 9.3 cubic feet. The exterior is black to hide wear and blend with adjoining equipment, while the interior is white and fitted with LED bar lighting under the shelves and canopy to enhance the presentation of stored items. The cabinet has three stainless steel shelves capable of being adjusted to sit flat or at a slight 10-degree downward angle. These shelves come with price moldings for an efficient presentation that's easy for customers to see.

A good choice for eco-conscious locations, the Everest Refrigeration EOMV-36-B-28-S display merchandiser operates using R290 refrigerant—an eco-friendly hydrocarbon. The refrigeration system is self-contained and mounted to the bottom of the unit to optimize storage space. To enable side-by-side installation for a continuous cool storage line-up, this unit has a front air intake and rear air discharge configuration. The factory-set temperature is 35 degrees Fahrenheit, and the average product temperature is 40 degrees Fahrenheit or less. This unit should be installed in an air-conditioned environment that doesn't exceed 80 degrees Fahrenheit.

Product Details

• EOMV series
• 9.3-cu.-ft. internal capacity
• Black exterior with moisture-resistant panels
• Field-replaceable tempered glass sides
• Stainless steel interior with perforated back wall
• Includes floors drains
• Front-mounted stainless steel bumper belt
• Top, bottom, and rear constructed of stainless steel
• Shielded LED interior bar lighting under shelves and canopy with on/off switch
• 2¹/₂-in. polyurethane insulation
• 3 stainless steel shelves with price tag moldings
• Shelves can be positioned as flat or slanted downward at 10 degrees F
• Integrated, retractable night curtain
• 5-in. swivel casters with locks on front set
• 2 leg stabilizers

Refrigeration System

• Self-contained and bottom mounted
• Eco-friendly R290 refrigerant
• Average product temperature of 40 degrees F or less
• Factory-preset temperature: 35 degrees F
• Front air intake and rear air discharge design
• Audible overheat protection alarm
• Electronically commutated fan motors
• Condensate drain pan
• No external drains or electric heaters required
• Auto-reverse condenser fan motor

Operating Conditions

• Designed for air-conditioned environment where temperature and humidity does not exceed 80 degrees F and 55 percent
• Must not be installed near ventilation systems, fans, or exterior doors or windows
• Must not be installed in direct sunlight
• 6-in. clearance required on the front, back, and top for built-in applications

Dimensions & Utilities

• 37¹/₄ in. W x 28³/₈ in. D x 65¹/₈ in. H
• 7 A, ³/₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug

Product Features

*Free shipping on Everest Refrigeration EOMV-36-B-28-S within the 48 contiguous states.

From The Manufacturer

Vertical Open Display Merchandiser, 37-1/4"W x 28-3/8"D x 60-1/8"H, 9.3 cu. ft. capacity, self-contained bottom mount refrigeration, front air intake & rear air discharge, LED lighting in canopy & underneath shelves, retractable night curtain, (3) adjustable stainless steel shelves, overheat protection alarm, stainless steel interior, black exterior, 5" front swivel casters with locks & leg stabilizers, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.0 amps, cord, NEMA 5-20P, ETL-Sanitation, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Electrical; 5-year Compressor
