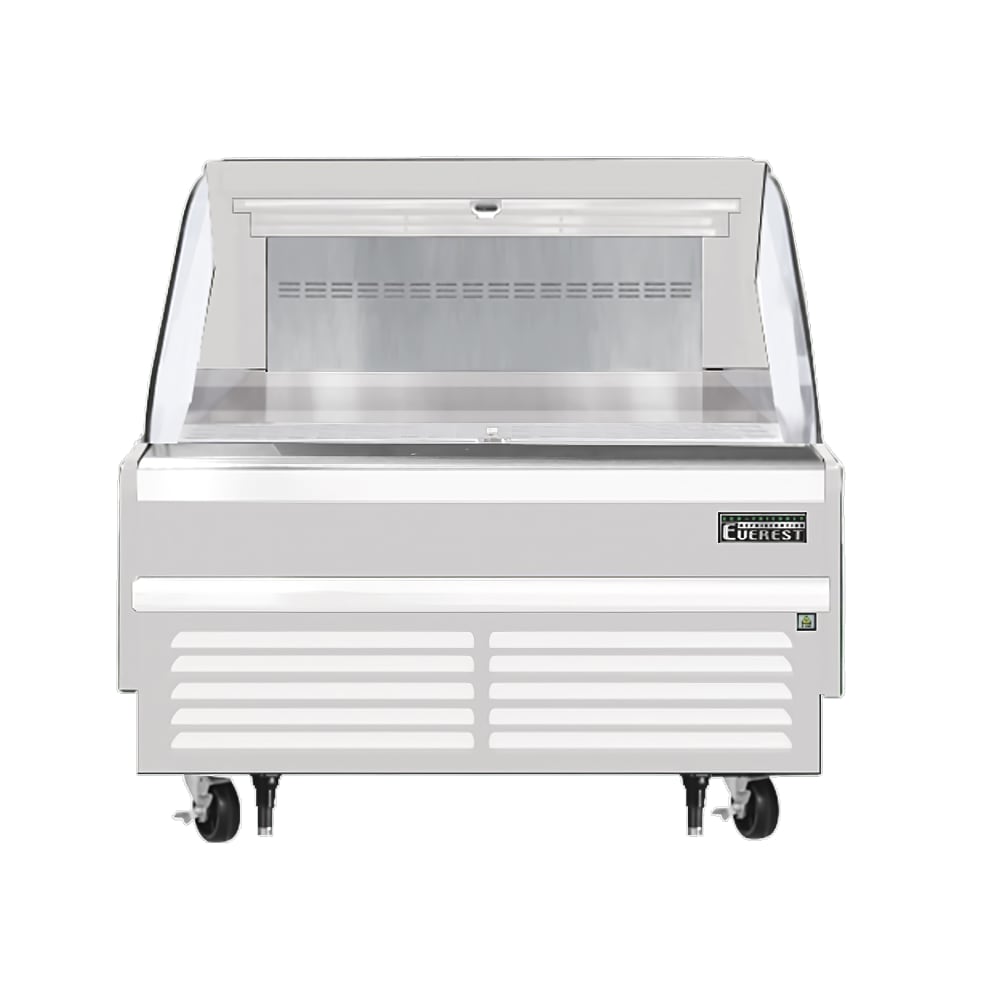

Everest Refrigeration EOMH-48-W-35-S 48" Horizontal Open Air Cooler w/ (1) Levels, White, 115v

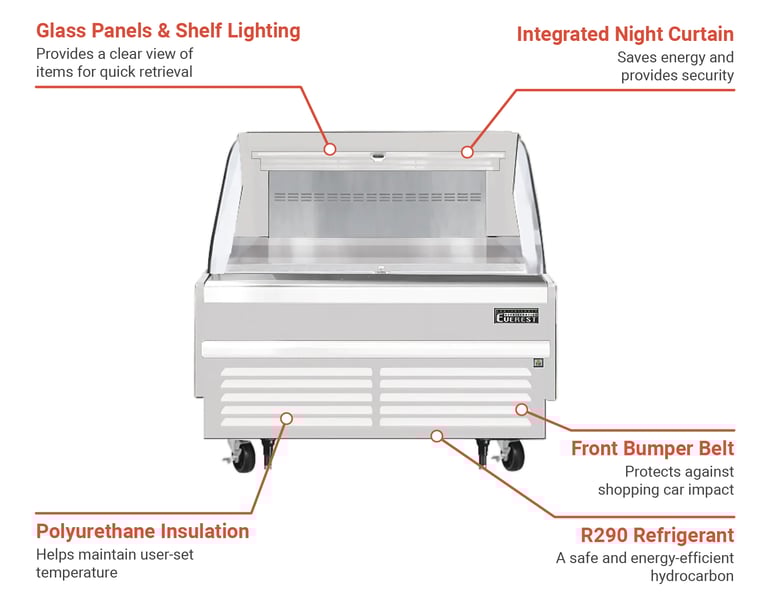

The Everest Refrigeration EOMH-48-W-35-S open-air merchandiser measures 48 inches wide by 34¹/₄ inches deep by 41 inches high, has a removable two-tier stainless steel shelf riser to display inventory, and is equipped with a front air intake and rear air discharge system. This system enables installation into a continuous lineup in grocery and convenience stores. This unit’s interior spans 7.3 cubic feet and is constructed of stainless steel to provide durability and resistance to corrosion and rust.

To optimize interior airflow, the Everest Refrigeration EOMH-48-W-35-S horizontal open-air merchandiser has a perforated interior back wall and has an electronically commutated evaporator fan motor that works to distribute cool air evenly for rapid cooling. This merchandiser uses eco-friendly R290 hydrocarbon refrigerant for an average product temperature of 40 degrees Fahrenheit or lower. The self-contained refrigeration system helps reduce the need for staff interference and is bottom mounted. To provide mobility as needed, this unit sits atop 5-inch swivel casters with locks on the front set and is supported with leg stabilizers.

Product Details

• EOMH series
• 1 section
• 7.3-cu.-ft. internal volume
• Stainless steel interior
• Perforated back wall
• White exterior
• Floor drains included
• Front stainless steel bumper belt
• Galvanized steel top, bottom, and rear
• 2¹/₂-in. polyurethane insulation
• Removable, 2-tier stainless steel shelf riser
• Shielded LED bar lighting under shelves and canopy with on/off switch
• 5-in. swivel casters with locks on front set
• Leg stabilizers included

Refrigeration System

• Self-contained and bottom mounted
• Factory-preset temperature: 35 degrees F
• Average product temperature 40 degrees F or less
• Audible overheat protection alarm
• R290 hydrocarbon refrigerant
• Front air intake and rear air discharge
• Electronically commutated evaporator fan motors
• Auto-reverse condenser fan motor
• Condensate drain pan

Operating Conditions

• Designed for air-conditioned environments where temperature and humidity does not exceed 80 degrees F and 55 percent
• Must not be installed near ventilation systems, fans, or exterior doors or windows
• Must not be installed in direct sunlight
• 6-in. clearance required on the front, back, and top for built-in applications

Dimensions & Utilities

• 48 in. W x 34¹/₄ in. D x 41 in. H
• 7.5 A, ³/₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P plug

Product Features

*Free shipping on Everest Refrigeration EOMH-48-W-35-S within the 48 contiguous states.

From The Manufacturer

Horizontal Open Display Merchandiser, 48"W x 34-1/4"D x 41"H, 7.3 cu. ft. capacity, self-contained bottom mount refrigeration, front air intake & rear air discharge, LED lighting in canopy & underneath shelves, retractable night curtain, 2-tier stainless steel shelf riser, overheat protection alarm, stainless steel interior, white exterior, 5" front swivel casters with locks & leg stabilizers, R290 Hydrocarbon refrigerant, (2) 1/2 HP, 115v/60/1-ph, 10.6 amps, cord, NEMA 5-20P, ETL-Sanitation, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Electrical; 5-year Compressor

Everest Refrigeration EOMH-48-W-35-S Specifications

Documents

Spec Sheet

Warranty

Manual

Catalog
