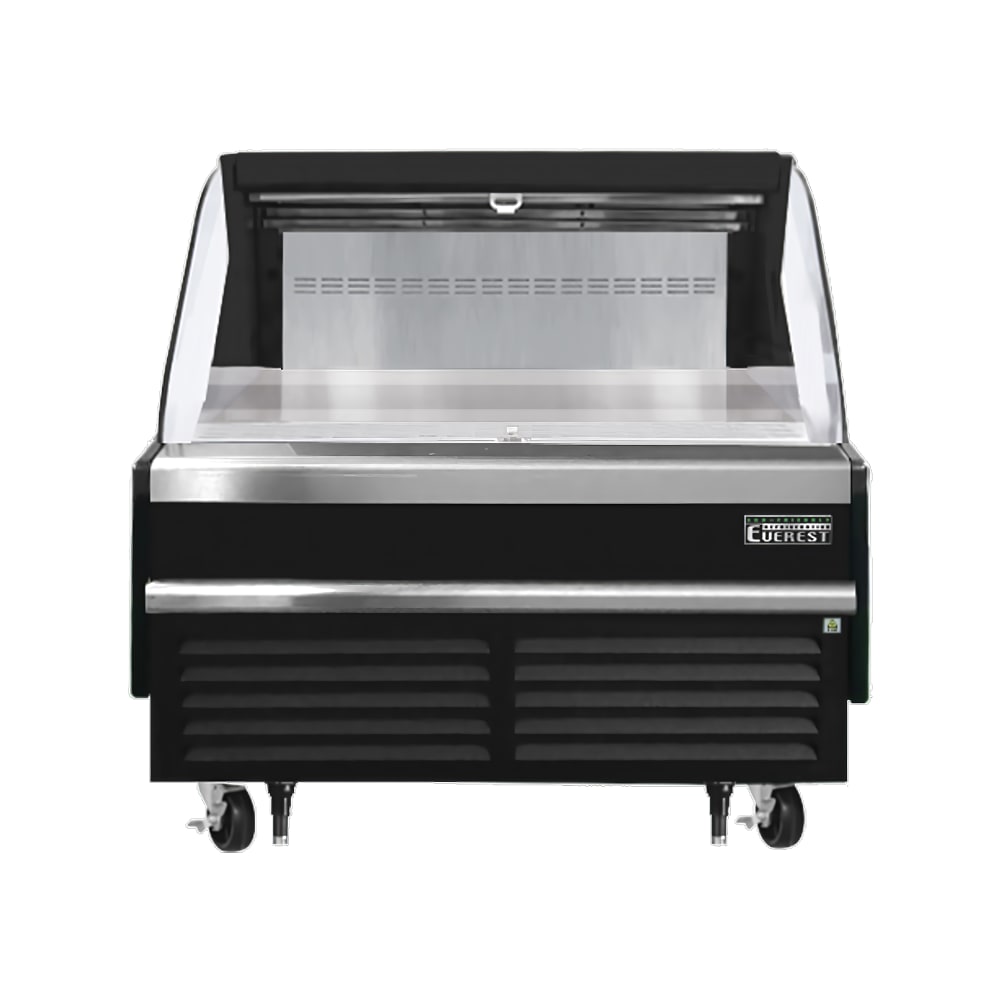

Everest Refrigeration EOMH-48-B-35-S 48" Horizontal Open Air Cooler w/ (1) Levels, Black, 115v

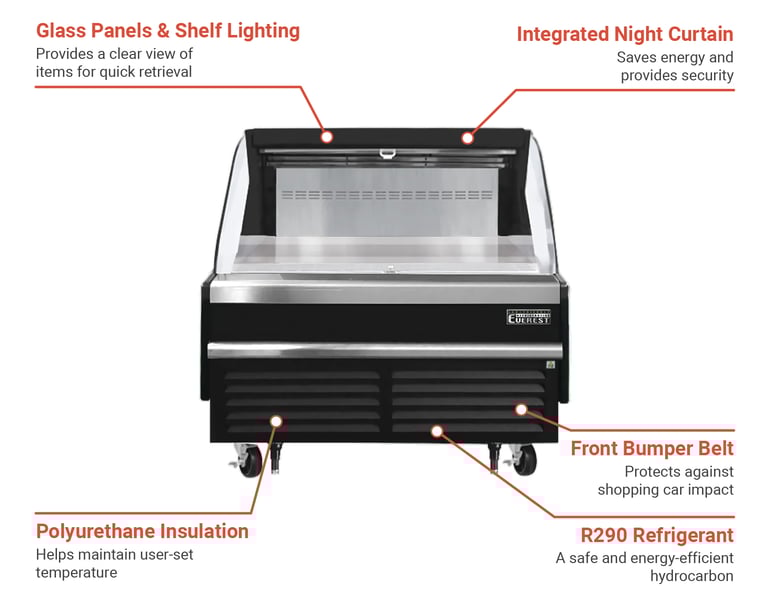

The Everest Refrigeration EOMH-48-B-35-S horizontal merchandiser offers 7.3 cubic feet of interior space, a stainless steel shelf, and a total of two levels for item storage. To provide a clear view of stored items, this unit has LED bar lighting installed underneath the canopy and shelf; these lights have an on/off switch to save energy when not in use. This unit has a front bumper belt built of durable stainless steel to protect against impact damage. The cabinet’s interior is also constructed of stainless steel to ensure a long service life. The back wall is perforated to facilitate proper airflow around the shelf items to help ensure consistent temperatures.

For safe and energy-efficient operation, the Everest Refrigeration EOMH-48-B-35-S display merchandiser uses R290 hydrocarbon refrigerant—an eco-friendly alternative to traditional refrigerants—to maintain an average product temperature of 40 degrees Fahrenheit or less. To reduce the need for staff intervention, this unit’s refrigeration system is self-contained. If the cabinet overheats, an alarm sounds to alert staff, and so side-by-side installation is possible for a continuous lineup of units, this merchandiser has a front air intake and rear air discharge system.

Product Details

• Part of the EOMH series
• 1 section
• 7.3-cu.-ft. interior capacity
• Heavy-duty stainless steel interior
• Perforated back wall
• Black exterior
• Moisture-resistant, field-replaceable tempered glass side panels
• Floor drains included
• Front stainless steel bumper belt
• Galvanized steel top, bottom, and rear
• 2¹/₂-inch polyurethane insulation
• Removable, 2-tier stainless steel shelf riser
• Shelf can be positioned as flat or at a slight downward 10-degree angle
• Shielded LED bar lighting under shelves and canopy with an on/off switch
• 5-in. swivel casters with locks on front set
• Leg stabilizers included

Refrigeration System

• Self-contained and bottom mounted
• Factory-preset temperature: 35 degrees F
• Average product temperature 40 degrees F or less
• Audible overheat protection alarm
• R290 hydrocarbon refrigerant
• Front air intake and rear air discharge
• Electronically commutated evaporator fan motors
• Auto-reverse condenser fan motor
• Condensate drain pan

Operating Conditions

• Designed for air-conditioned environments where temperature and humidity does not exceed 80 degrees F and 55 percent
• Must not be installed near ventilation systems, fans, or exterior doors or windows
• Must not be installed in direct sunlight
• 6-in. clearance required on the front, back, and top for built-in applications

Dimensions & Utilities

• 48 in. W x 34¹/₄ in. D x 41 in. H
• 7.5 A, ³/₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P plug

Product Features

*Free shipping on Everest Refrigeration EOMH-48-B-35-S within the 48 contiguous states.

From The Manufacturer

Horizontal Open Display Merchandiser, 48"W x 34-1/4"D x 41"H, 7.3 cu. ft. capacity, self-contained bottom mount refrigeration, front air intake & rear air discharge, LED lighting in canopy & underneath shelves, retractable night curtain, 2-tier stainless steel shelf riser, overheat protection alarm, stainless steel interior, black exterior, 5" front swivel casters with locks & leg stabilizers, R290 Hydrocarbon refrigerant, (2) 1/2 HP, 115v/60/1-ph, 7.5 amps, cord, NEMA 5-20P, ETL-Sanitation, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Electrical; 5-year Compressor
