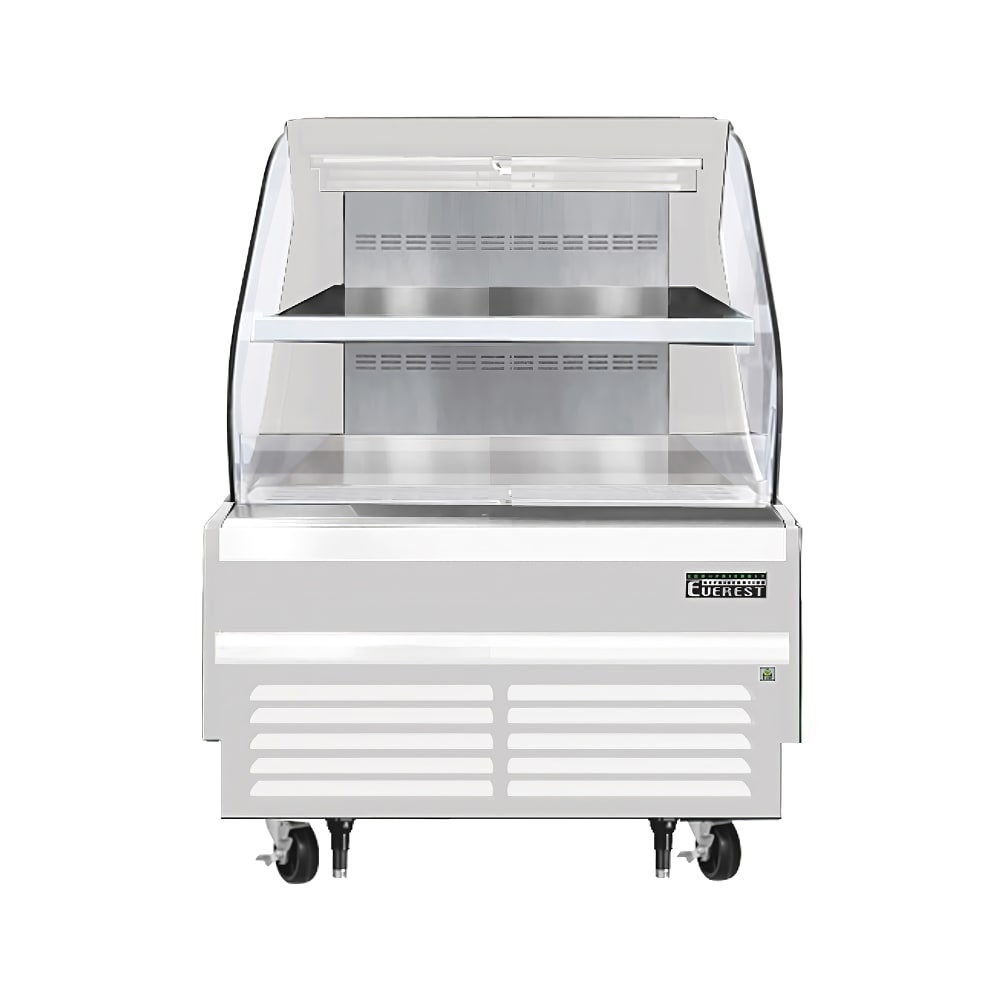

Everest Refrigeration EOMH-36-W-35-T 37 1/4" Horizontal Open Air Cooler w/ (2) Levels, White, 115v

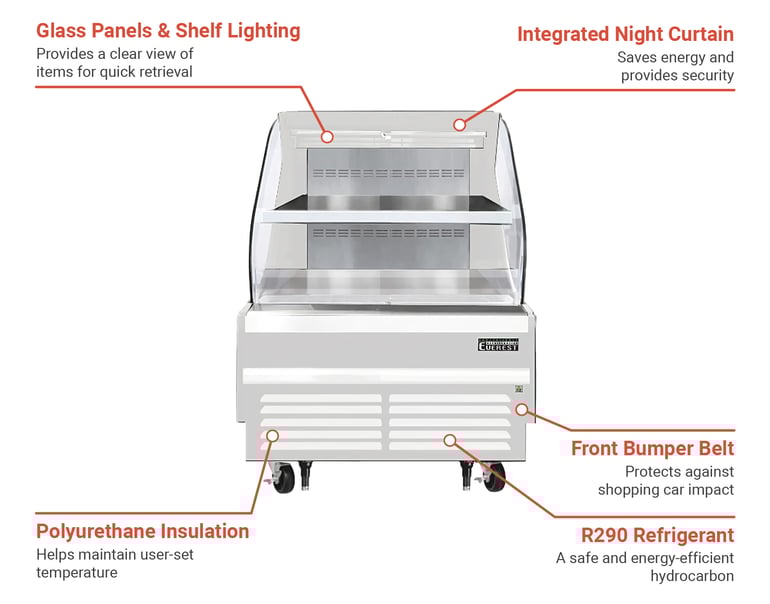

The back wall of the Everest Refrigeration EOMH-36-W-35-T horizontal open-air cooler interior has a perforated design to ensure proper airflow around shelf items. This merchandiser offers 7.4 cubic feet of internal space and features a stainless steel shelf with a price tag molding for an efficient design. Both the shelf and top canopy are fitted with LED bar lighting to provide a clear view of shelf items. To maintain cool conditions, the cabinet is built with 2¹/₂ inches of polyurethane insulation, and to protect against shopping cart damage, the front of this unit has a stainless steel front bumper belt.

The Everest Refrigeration EOMH-36-W-35-T horizontal open-air merchandiser has a front air intake and rear air discharge system to permit side-by-side installation with other units. This unit has a self-contained refrigeration system mounted to the bottom of the unit to maximize interior space. It operates using R290 hydrocarbon refrigerant and has a factory-preset temperature of 35 degrees Fahrenheit. This unit should be installed away from direct sunlight, and to provide mobility as needed, this unit sits atop 5-inch swivel casters with locks on the front set and leg stabilizers.

Product Details

• Part of the EOMH series
• 1 section
• 7.4-cu.-ft. interior capacity
• Heavy-duty stainless steel interior
• Perforated back wall
• Modern white exterior
• Moisture-resistant, field-replaceable tempered glass side panels
• Floor drains included
• Front stainless steel bumper belt
• Galvanized steel top, bottom, and rear
• 2¹/₂-inch polyurethane insulation
• 1 adjustable stainless steel shelf featuring price tag molding
• Shelf can be positioned as flat or at a slight downward 10-degree angle
• Shielded LED bar lighting under shelves and canopy with an on/off switch
• Shelf can be positioned as flat or a 10-degree downward angle
• 5-in. swivel casters with locks on front set
• Leg stabilizers included

Refrigeration System

• Self-contained, bottom-mounted design
• Factory-preset temperature: 35 degrees F
• Average product temperature 40 degrees F or less
• Audible overheat protection alarm
• R290 hydrocarbon refrigerant
• Front air intake and rear air discharge
• Electronically commutated evaporator fan motors
• Auto-reverse condenser fan motor
• Condensate drain pan

Operating Conditions

• Designed for air-conditioned environments where temperature and humidity does not exceed 80 degrees F and 55 percent
• Must not be installed near ventilation systems, fans, or exterior doors or windows
• Must not be installed in direct sunlight
• 6-in. clearance required on the front, back, and top for built-in applications

Dimensions & Utilities

• 37¹/₄ in. W x 34¹/₄ in. D x 46 in. H
• 7.03 A, ³/₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P plug

Product Features

*Free shipping on Everest Refrigeration EOMH-36-W-35-T within the 48 contiguous states.

From The Manufacturer

Horizontal Open Display Merchandiser, 37-1/4"W x 34-1/4"D x 46"H, 7.4 cu. ft. capacity, self-contained bottom mount refrigeration, front air intake & rear air discharge, LED lighting in canopy & underneath shelves, retractable night curtain, (1) adjustable stainless steel shelf, overheat protection alarm, stainless steel interior, white exterior, 5" front swivel casters with locks & leg stabilizers, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.03 amps, cord, NEMA 5-20P, ETL-Sanitation, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Electrical; 5-year Compressor

Everest Refrigeration EOMH-36-W-35-T Specifications

Documents

Spec Sheet

Warranty

Manual

Catalog
