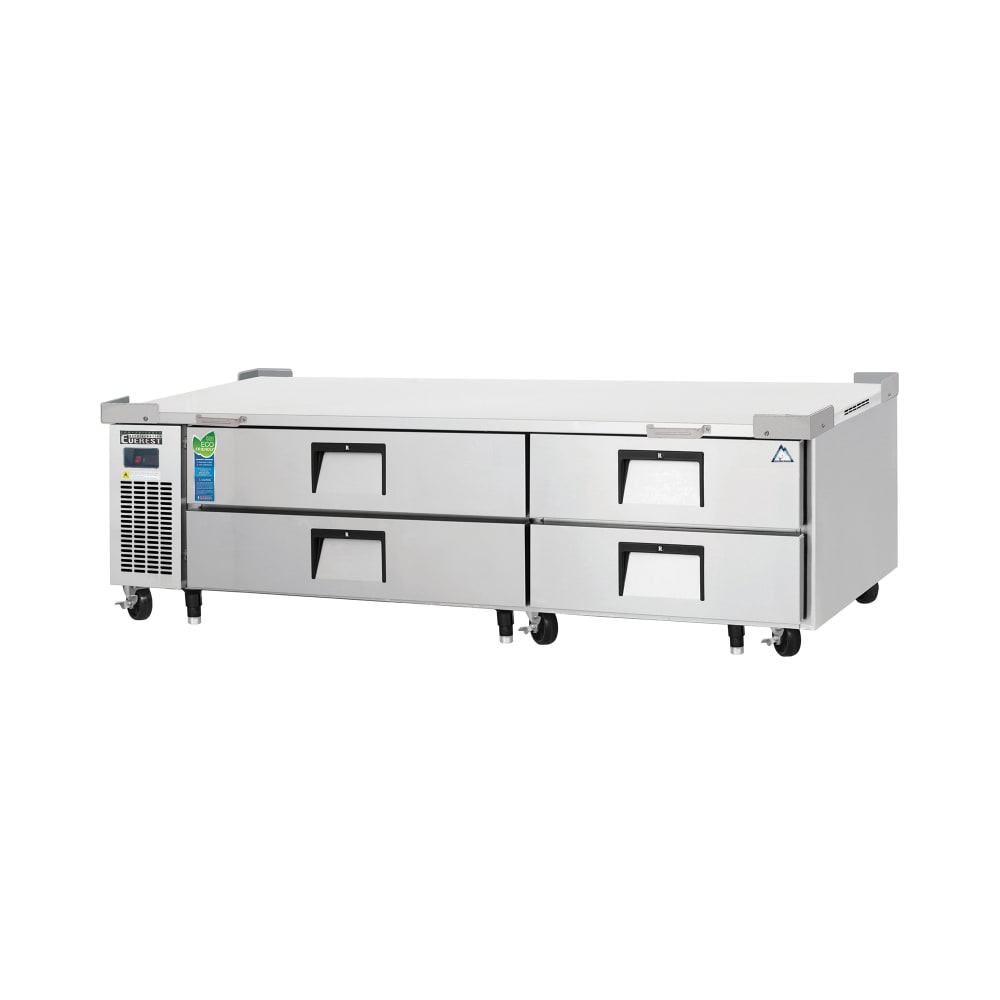

Everest Refrigeration ECB82-84D4 84" Chef Base w/ (4) Drawers - 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
White Glove Delivery
Contact your sales rep for availability
Everest Refrigeration ECB82-84D4 Description

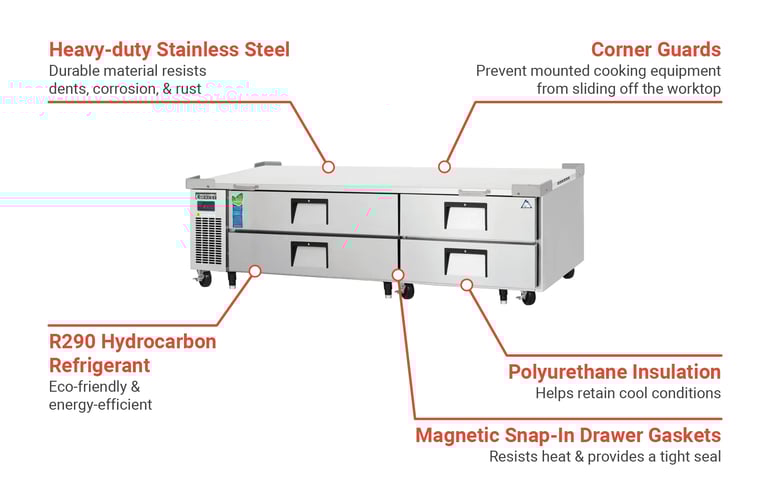

To prevent collision hazards, the Everest Refrigeration ECB82-84D4 chef base has rounded exterior corners and recessed handles on each of its four drawers. To ensure long-lasting durability, this unit has a stainless steel interior and exterior and a heavy-duty, 16-gauge stainless steel worktop. This item is designed to support additional cooking equipment stacked on the worktop and is adorned with corner guards to keep items from sliding off. This base is equipped with four drawers and has a total weight capacity of 1,084 pounds. To provide a tight seal, each drawer is equipped with a magnetic snap-in drawer gasket.
To improve recovery times during heavy use, the Everest Refrigeration ECB82-84D4 chef base has 21/2 inches of polyurethane insulation sandwiched between its metal paneling. This base uses R290 refrigerant to reach set temperatures, which must be programmed using the digital controls and LED display located on the front left of the unit. This unit has a factory preset temperature of 35 degrees Fahrenheit but can achieve temperatures between 33 and 54 degrees Fahrenheit. Operators should note that this unit requires a minimum 6-inch clearance between any cooking equipment's heating element and the worktop.
Product Details
- ECB series
- 2 sections
- 1,084 lbs. weight capacity
- Stainless steel interior and exterior with rounded corners
- Galvanized steel bottom and rear
- 16-gauge stainless steel worktop
- Stainless steel grips
- Worktop security corner guards
- 12-gauge metal caster brackets
- 21/2-in. polyurethane insulation
- 4 stainless steel drawers
- Recessed handles
- Heat-resistant, magnetic snap-in drawer gaskets
- Stainless steel drawer frames with low-friction ball bearings
- Digital controls with an LED display
- (6) 5-in. swivel casters with locks on front set
- 3 front legs stabilizers
- Minimum 6-in. clearance required between the cooking equipment's heating element and the worktop
Refrigeration System
- Self-contained and side-mounted system
- R290 hydrocarbon refrigerant
- Temperature holding range: 33-54 degrees F
- Factory preset temperature: 35 degrees F
- Electronically commutated fan motors
- Full-length air duct system
- Auto defrost cycle
- Condensate drain pan
- No external drains or electric heaters required
- Auto-reverse condensate fan motor
- Pressure relief system
Dimensions & Utilities
- 84 in. W x 321/8 in. D x 20 in. H
- 2 A, 1/3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug
Product Features
*Free shipping on Everest Refrigeration ECB82-84D4 within the 48 contiguous states.
From The Manufacturer
Chef Base Refrigerator, two-section, 84"W, self-contained side mounted refrigeration, (4) heavy duty stainless steel drawers, 1,084 lbs. weight capacity, 16 gauge stainless steel worktop, digital controls with LED display, auto defrost, dual air chamber & vents, high heat insulation, stainless steel grips, worktop security corner guards, stainless steel interior & exterior, galvanized steel bottom & rear, (3) leg stabilizers, (6) 5" swivel casters (3 locking), R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 2.0 amps, cord, NEMA 5-15P, NSF, cETLus, ETL-Sanitation
*Image may not depict product color, inclusions or accessories.
Everest Refrigeration ECB82-84D4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Everest Refrigeration |
| Depth (in) | 32.13 |
| Height (in) | 20 |
| Hertz | 60 |
| NEMA | 5-15P |
| Number of Drawers | 4 |
| Phase | 1 |
| Product | Chef Bases |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 2 |
| Series | ECB Series |
| Type | Refrigerator |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Electrical; 10-year Compressor |
| Width (in) | 84 |
| Weight | 545.00 |
