Structural Concepts NE4835RSSV 47 3/4" Reveal® Drop-In Vertical Open Air Cooler w/ (4) Levels, 208-240v

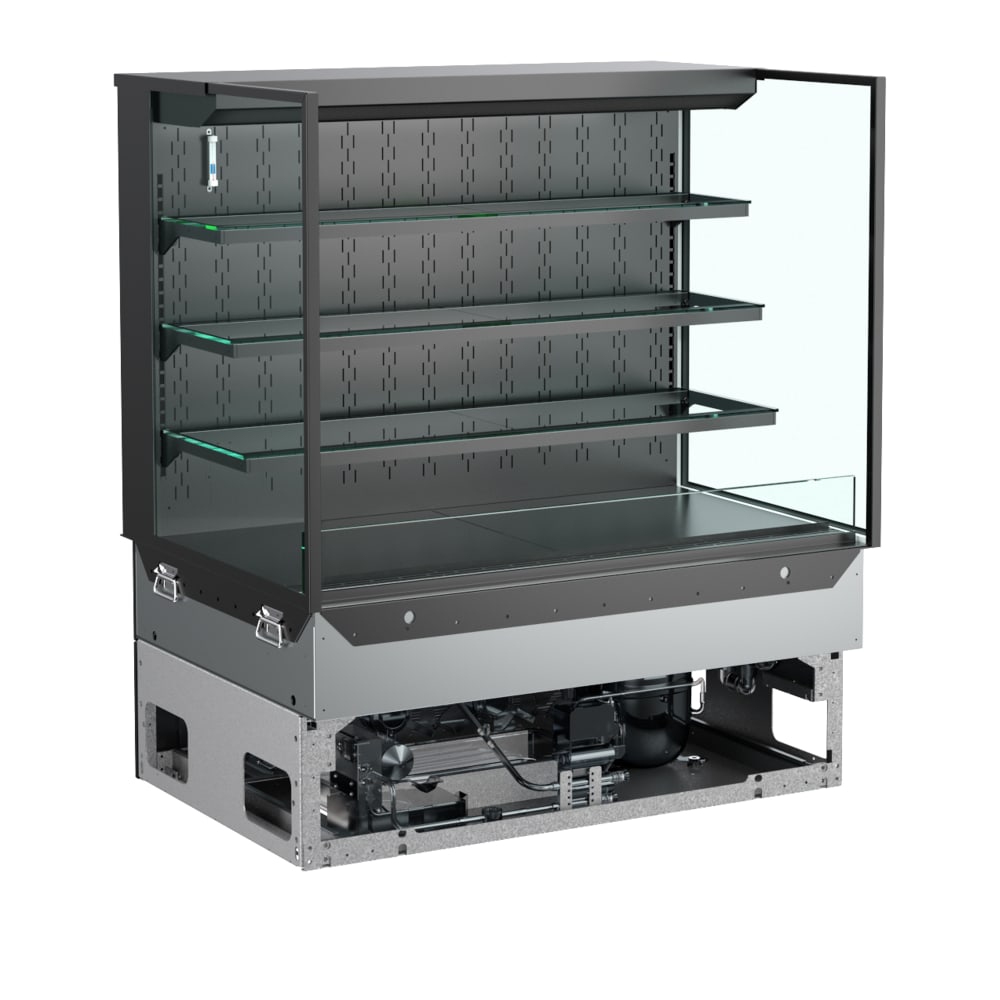

The Structural Concepts NE4835RSSV drop-in display case has four tiers for merchandising ready-made salads, beverages, and sandwiches in high-traffic environments. Its three shelves are adjustable, removable, and constructed of glass, making them simple to clean and move for larger products. Designed to slot into a countertop cutout, its mechanics are hidden from patrons' view. It measures 47³/₄ inches wide by 33 inches deep by 54⁵/₈ inches high, with 35³/₈ inches visible above the counter. Its refrigeration system is self-contained, so it is simple to install and access for maintenance purposes. To hold products at or below 40 degrees Fahrenheit, this refrigeration system is equipped with Breeze-E and EnergyWise technology.

The Structural Concepts NE4835RSSV refrigerated display case is illuminated by LED lights to highlight products, and it has two glass side panels to contain cold air while still allowing patrons to peer in from multiple angles. Its solid back panel and solid metal frame are black to blend in with most storefront decor. To further protect the unit, its evaporator coil is coated in Blue Fin polymer, and it comes with a condensation pan to catch liquid and prevent water from pooling in the bottom of the unit.

Product Details

• Featured in the Reveal® series
• Self-contained refrigeration with Breeze-E and EnergyWise technology
• LED lighting
• 4 tiers with 3 glass shelves
• Glass end panels
• Fits a countertop cutout
• Black frame and interior
• Holds products at 40 degrees or below
• Evaporator coil coated with Blue Fin polymer
• Condensate pan

Dimensions and Utilites

• Overall: 47³/₄ in. W x 33 in. D x 54⁵/₈ in. H
• 35³/₈ in. visible above countertop
• 110/120 V/60 hz/1 ph
• 11.11 A, 1634 W
• 10-ft. straight blade power cord with 5-20P plug

*Free shipping on Structural Concepts NE4835RSSV within the 48 contiguous states.

From The Manufacturer

Reveal® Self-Service Refrigerated Slide In Counter Case, 47-3/4"W, 35-3/8"H (above counter) 54-3/4"H (overall), Breeze-E (Type II) with EnergyWise self-contained refrigeration, (3) removable & adjustable clear glass shelving, LED top & shelf lights, slide in base, glass ends, upper rear solid back panel, coated coil, condensate pan, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor
