Structural Concepts NE3627RSSV 35 3/4" Reveal® Drop-In Vertical Open Air Cooler w/ (3) Levels, 110-120v

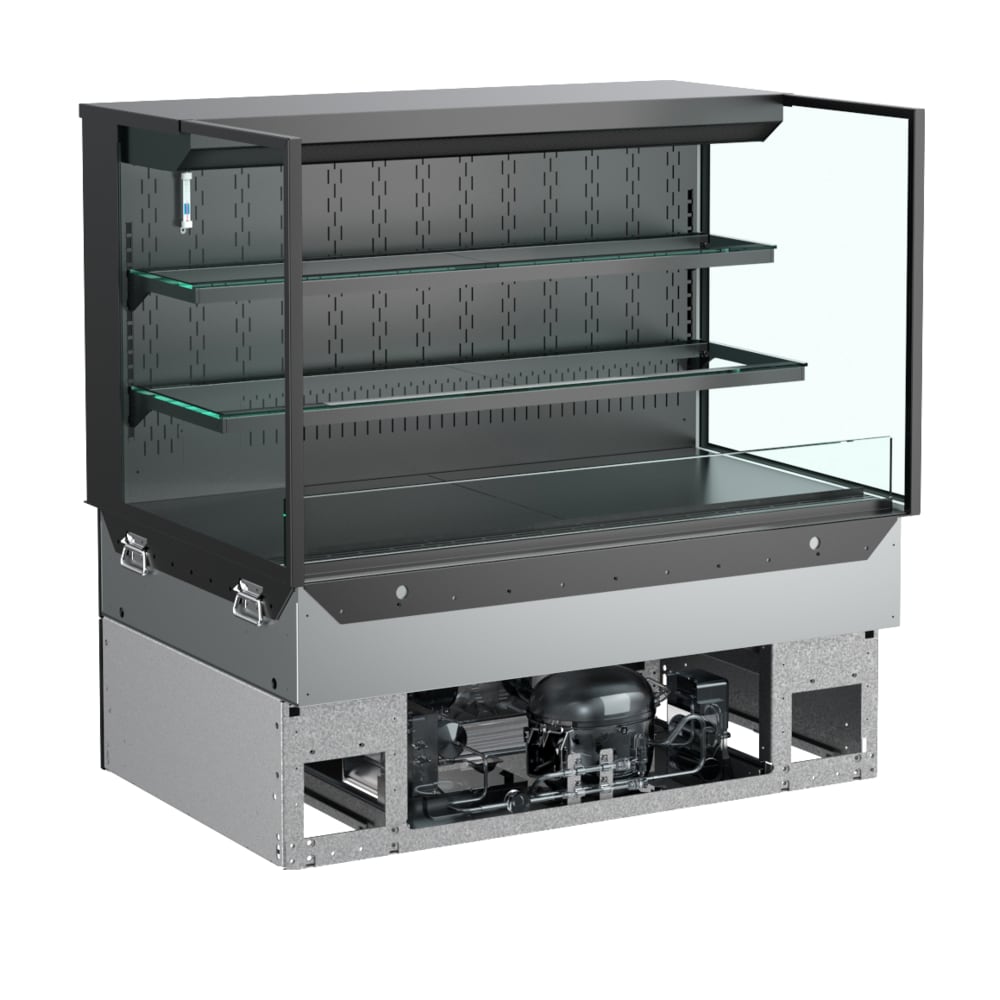

The Structural Concepts NE3627RSSV drop-in refrigerated display case is designed for high-volume sales because it features three tiers with adjustable shelves. This display case measures 35³/₄ inches wide by 33 inches deep by 47¹/₈ inches high; 27⁷/₈ inches are visible above the countertop, and the internal mechanics hidden from the patron's line of sight. Meant to slide into a countertop cutout, it's cooled by a compressor using an energy-efficient motor. Additionally, its evaporator coil is coated in Blue Fin polymer to protect against mechanical issues. It's also equipped with a condensation pan to catch water and reduce the chance of rusting. With its Breeze-E temperature control system, this open-air unit can hold products at or below 40 degrees Fahrenheit.

Constructed to encourage last-second purchases near checkout areas, the Structural Concepts NE3627RSSV open-air display case is lit by LEDs. Its sides are made of glass, while its solid black back plate highlights the vibrant colors of item packaging. If it needs to accommodate larger items, all shelves are completely adjustable and removable.

Product Details

• Featured in the Reveal® series
• Breeze-E (type II) powered EnergyWise self-contained refrigeration
• Black interior and exterior highlighted with LED lighting
• 3 tiers with 2 adjustable glass shelves
• Designed for slotting into countertop cutouts
• Solid back panel and glass side panels
• Rear air intake with front discharge
• Blue Fin polymer-coated evaporator coil
• Product temperature: 40 degrees F and below
• Condensation pan included

Dimensions and Utilities

• Overall dimensions: 35³/₄ in. W x 33 in. D x 47¹/₈ in. H
• 27⁷/₈ in. visible above countertop
• 110/120 V/60 hz/ 1 ph
• 16 A, 1183 W
• 10-ft. straight blade power cord with 5-20P plug

*Free shipping on Structural Concepts NE3627RSSV within the 48 contiguous states.

From The Manufacturer

Reveal® Self-Service Refrigerated Slide In Counter Case, 35-3/4"W, 27-7/8"H (above counter) 47-1/4"H (overall), Breeze-E (Type II) with EnergyWise self-contained refrigeration, (2) removable & adjustable clear glass shelving, LED top & shelf lights, slide in base, glass ends, upper rear solid back panel, coated coil, condensate pan, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor
