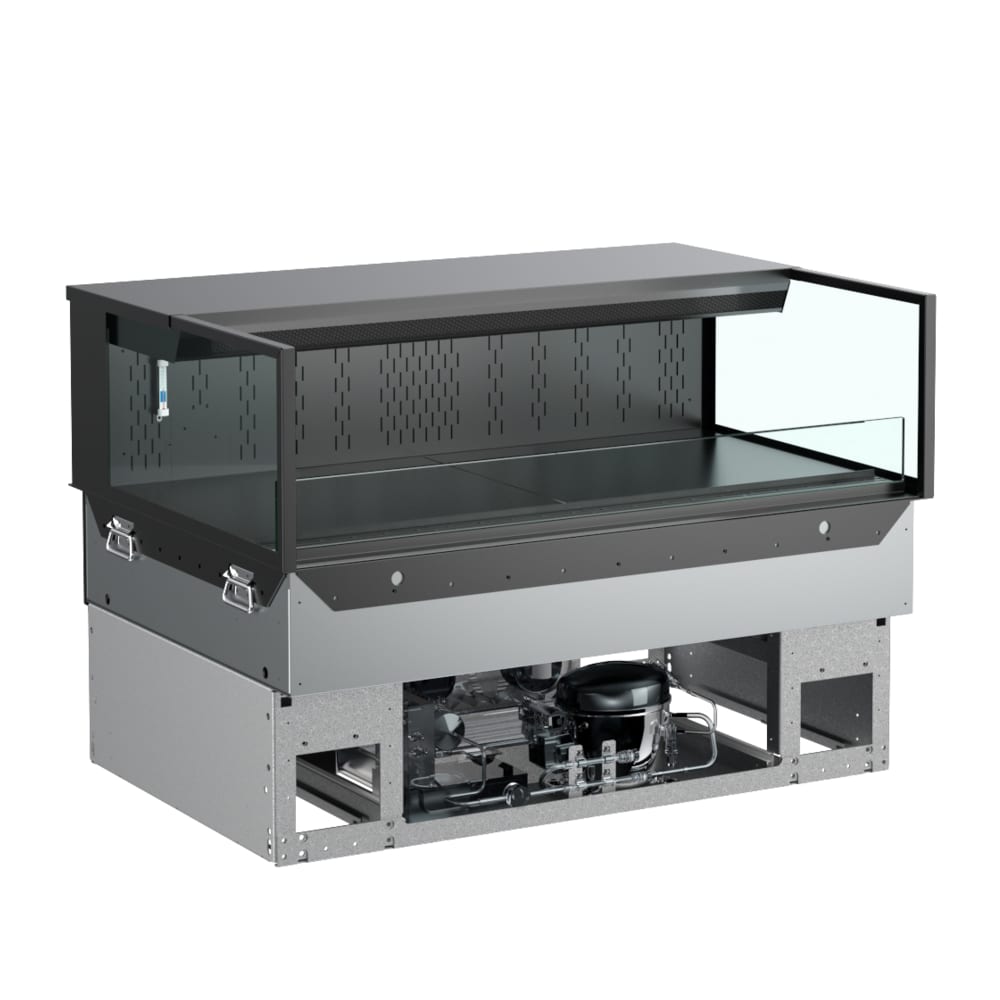

Structural Concepts NE3613RSSV 35 3/4" Reveal® Drop-In Horizontal Open Air Cooler w/ (1) Level, 110-120v

Designed to keep refreshments cold within reach of checkout counters, the Structural Concepts NE3613RSSV drop-in open-air cooler measures 35³/₄ inches wide by 33 inches deep by 32⁷/₈ inches high. Its self-contained refrigeration unit is powered by Breeze-E technology to keep products below 40 degrees Fahrenheit. Its compressor is rear mounted, and its coils are coated in durable polymer to protect it from mechanical failure and debris. Because this cooler is designed to slide into a counter, its internal mechanics are hidden from customer vision while remaining simple for workers to access. Meant to promote impulse purchases, this slide-in counter case is illuminated with a series of LED lights and has glass ends with a solid black back panel to draw attention to contents.

Product Details

• Part of the Reveal® series
• Breeze-E (Type II) with EnergyWise self-contained refrigeration
• LED interior lighting
• Single level
• Slides into a countertop
• Glass end panels
• Solid back panel
• Easy-to-clean black interior and exterior frame
• Rear-compressor air intake with front-facing discharge
• Blue Fin-coated coil resists corrosion
• Maintains product temperatures below 40 degrees F
• Condensate pan
• 1-piece ABS plastic tub

Dimensions and Utilities

• 35³/₄ in. W x 33 in. D x 32⁷/₈ in. H
• 9.88 A, 772 W
• 110/120 V/60 hz/1 ph
• 10-ft. straight blade power cord with NEMA 5-15P plug

*Free shipping on Structural Concepts NE3613RSSV within the 48 contiguous states.

From The Manufacturer

Reveal® Self-Service Refrigerated Slide In Counter Case, 35-3/4"W, 13-5/8"H (above counter), 33"H (overall), Breeze-E (Type II) with EnergyWise self-contained refrigeration, LED top light, slide in base, glass ends, upper rear solid back panel, coated coil, condensate pan, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor

Structural Concepts NE3613RSSV Specifications
