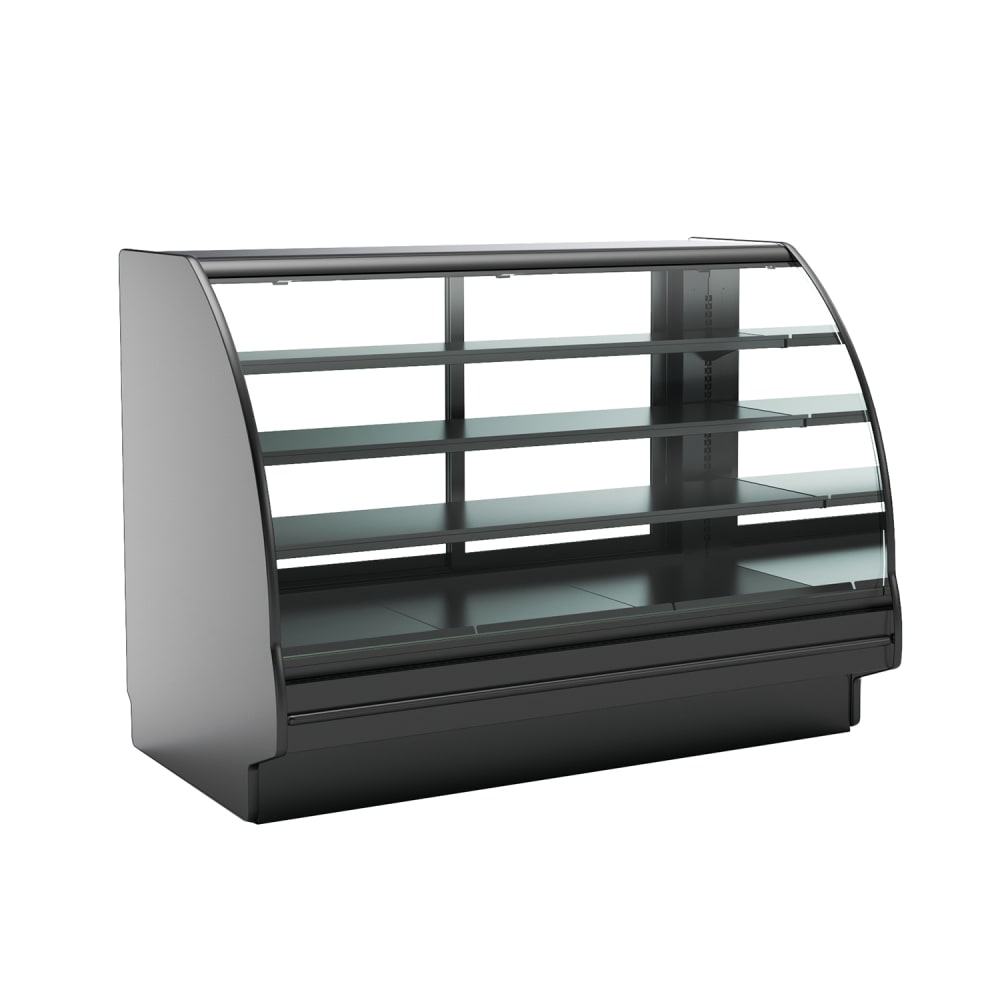

Structural Concepts GHS656RLB (CURVED) 75 3/8" Fusion® Horizontal Open Air Cooler w/ (4) Levels, 110-120v

The Structural Concepts GHS456RLB Fusion® horizontal open air cooler is designed with a curved lift-up front glass that combines modern aesthetics with functional display. This 56-inch horizontal open-air unit provides four levels of merchandising across three solid shelves and is configured for full-service operation. Using remote DX refrigeration, the case maintains product temperatures of 40 degrees Fahrenheit or lower. Frosted LED lighting on the top and shelves increases product visibility, while clear rear sliding doors support service efficiency.

A large evaporator and condenser quickly cool the Structural Concepts GHS456RLB Fusion® horizontal open air cooler and ensure temperatures remain consistent. Rear sliding glass doors improve operator access during service. The refrigeration system is remotely located, eliminating the need for in-unit compressor space and reducing heat and noise output near the display. To withstand the wear and tear of busy foodservice establishments, the rear of the unit is constructed of stainless steel.

Product Details

• Fusion Series
• Horizontal design
• 4 display levels
• Stainless steel rear exterior
• Black powder-coated lower front interior panel
• Stainless steel end panels with mirror interior
• Curved lift-up front glass
• Clear glass rear sliding doors
• 3 solid shelves
• LED 3500K top and shelf lighting with frosted lens
• Rail system base support for shimming
• Remote DX refrigeration
• Digital Fahrenheit thermometer
• Integrated average product temperature: 40 degrees F or less

Dimensions & Utilities

• Shelf: 48 in. W x 25 in. D (per level)
• Interior: 48 in. W x 27 in. D x 30 in. H
• Overall: 56 in. W x 42³⁄₄ in. D x 55¹⁄₄ in. H
• 3.66 A, 156 W
• 110–120 V/60 Hz/1 ph, remote electrical connection

*Free shipping on Structural Concepts GHS656RLB (CURVED) within the 48 contiguous states.

From The Manufacturer

Fusion® Refrigerated Service Case, 75-3/8"W x 42-3/4"D x 55-1/4"H, curved lift-up front glass, (3) solid shelves, 40°F or less integrated average product temperature, LED top and shelf lights with frosted lens, clear glass rear sliding doors, remote DX refrigeration, stainless steel rear exterior, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Structural Concepts GHS656RLB (CURVED) Specifications
