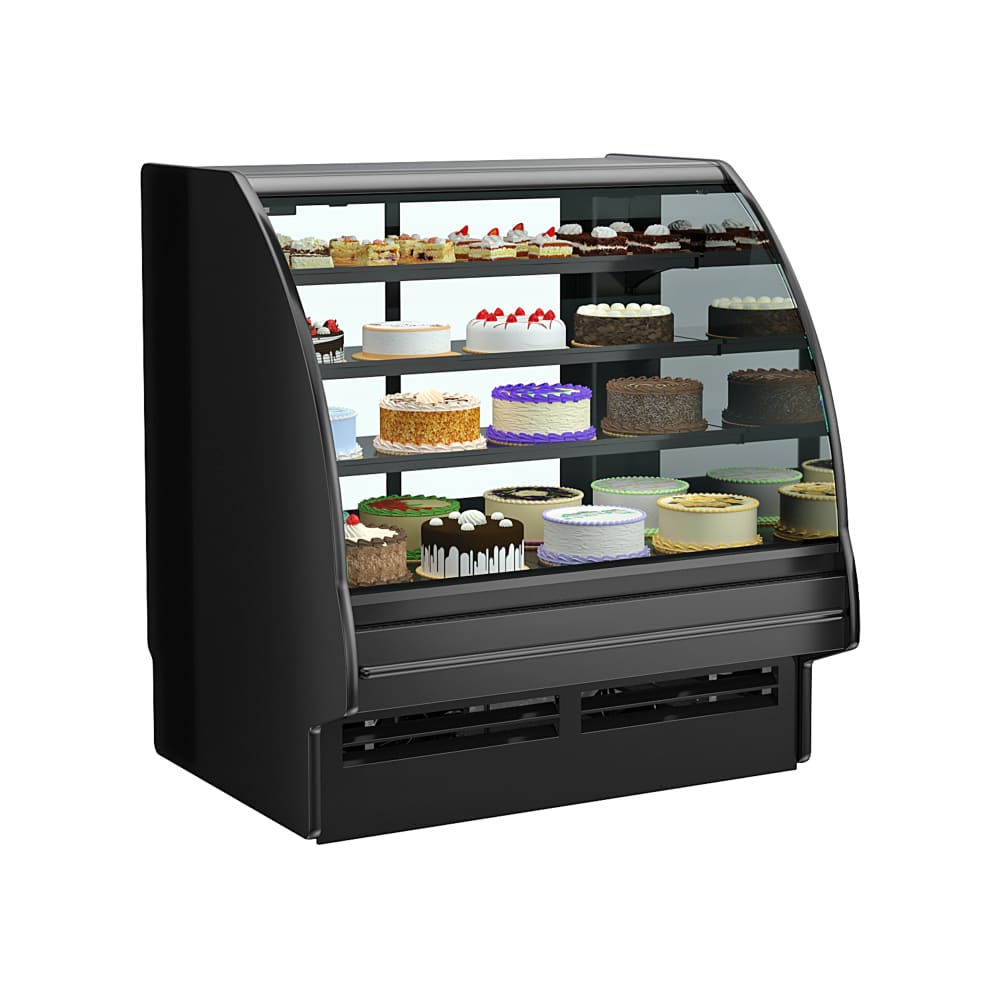

Structural Concepts GHS656R (CURVED) 75 3/8" Fusion® Horizontal Open Air Cooler w/ (4) Levels, 110-120v

Designed for full-service merchandising, the Structural Concepts GHS656R Fusion® horizontal open air cooler includes three solid shelves across four levels and uses a Breeze self-contained refrigeration system to maintain product temperatures at or below 40 degrees Fahrenheit. Featuring a curved lift-up front glass, this 75³⁄₈-inch-wide model offers high visibility and accessibility for deli, bakery, or prepared food applications. Frosted LED lighting on the top and shelves enhances product presentation, while rear sliding glass doors streamline service access.

The Structural Concepts GHS656R Fusion® horizontal open air cooler is constructed with a stainless steel rear exterior and a black powder-coated interior for durability and contrast. Its leveling base system helps stabilize the cabinet on uneven surfaces. The unit is powered by R290 refrigerant and features electronic controls with an LED display for temperature management. Rear access doors support efficient service and cleaning, and the curved front provides a modern, customer-facing presentation.

Product Details

• Fusion Series
• Horizontal design
• 4 display levels
• Stainless steel rear exterior
• Black powder-coated interior
• Curved lift-up front glass
• Clear glass rear sliding doors
• 3 solid shelves
• Frosted LED 3500K lighting on top and shelves
• Rail system base support

Refrigeration System

• Self-contained Breeze refrigeration system
• Front-breathing configuration
• R290 hydrocarbon refrigerant
• Electronic temperature control with LED display
• Automatic condensate evaporator
• Average product temperature: 40 degrees F or less

Dimensions & Utilities

• Shelf: 72 in. W x 20 in. D (each level)
• Interior: 72 in. W x 27 in. D x 30 in. H
• Overall: 75³⁄₈ in. W x 43 in. D x 55³⁄₄ in. H
• 16 A, 1,602 W
• 110–120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-20P plug

*Free shipping on Structural Concepts GHS656R (CURVED) within the 48 contiguous states.

From The Manufacturer

Fusion® Refrigerated Full Service Case with Lift-up Curved Front Glass, 75-3/8"W x 43"D x 55-3/4"H, 40°F or less integrated average product temperature, LED top and shelf lights with frosted lens, Sliding rear doors, Breeze self-contained R290 refrigeration, stainless steel rear exterior, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor

Structural Concepts GHS656R (CURVED) Specifications
