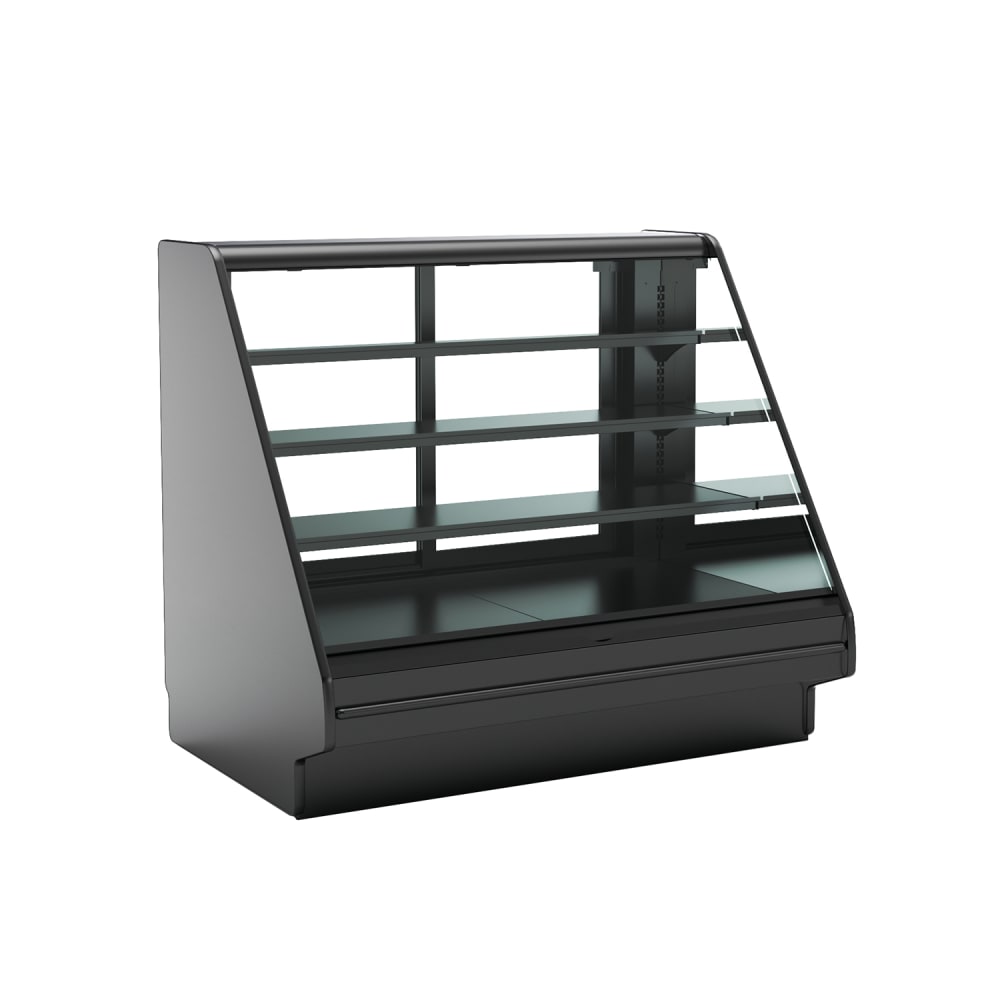

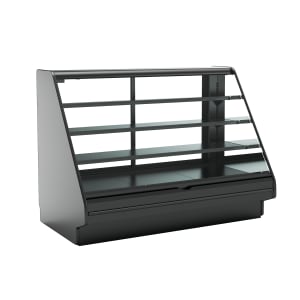

Structural Concepts GHS556RLB (FLAT) 62 7/8" Fusion® Horizontal Open Air Cooler w/ (5) Levels, 110-120v

The Structural Concepts GHS556RLBF Fusion® horizontal open air cooler is designed for full-service display applications in compact merchandising areas. With a width of 62⁷⁄₈ inches, this model offers five tiers of solid shelving, maximizing vertical product visibility within a smaller footprint. A flat angled lift-up front glass provides direct access to the display, supporting efficient customer interaction and product presentation. Frosted LED lights on each shelf and across the top enhance illumination, while rear sliding doors facilitate back-of-house restocking and service operations.

Constructed with a stainless steel rear exterior and a black powder-coated interior, the Structural Concepts GHS556RLBF horizontal open air cooler supports durability and contrast for showcased items. Its rail-mounted base is designed to accept shims for leveling on uneven floors, ensuring a stable footprint in high-traffic areas. Remote DX refrigeration keeps internal temperatures at or below 40 degrees Fahrenheit, with an integrated average across the entire display area. This model is an ideal fit for operators seeking a narrower width display case with full merchandising capacity and strong visual appeal.

Product Details

• Fusion Series
• Horizontal unit
• 5 display levels
• Stainless steel rear exterior
• Black powder-coated interior
• Stainless steel end panels with mirror interior
• Flat angled lift-up front glass
• Clear glass rear sliding doors
• 1-in. Boston bumper
• 4 solid shelves
• Frosted LED lighting on top and each shelf
• Rail system base support
• Remote DX refrigeration
• Maintains average product temperature: 40 degrees F or less

Dimensions & Utilities

• Shelf: 58 in. W x 20 in. D (each level)
• Interior: 58 in. W x 27 in. D x 30 in. H
• Overall: 62⁷⁄₈ in. W x 42³⁄₄ in. D x 55¹⁄₄ in. H
• 2.92 A, 149 W
• 110–120 V/60 Hz/1 ph, remote electrical connection

*Free shipping on Structural Concepts GHS556RLB (FLAT) within the 48 contiguous states.

From The Manufacturer

Fusion® Refrigerated Service Case, 62-7/8"W x 42-3/4"D x 55-1/4"H, flat angled lift-up front glass, 40°F or less integrated average product temperature, LED top and shelf lights with frosted lens, clear glass rear sliding doors, remote DX refrigeration, stainless steel rear exterior, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
