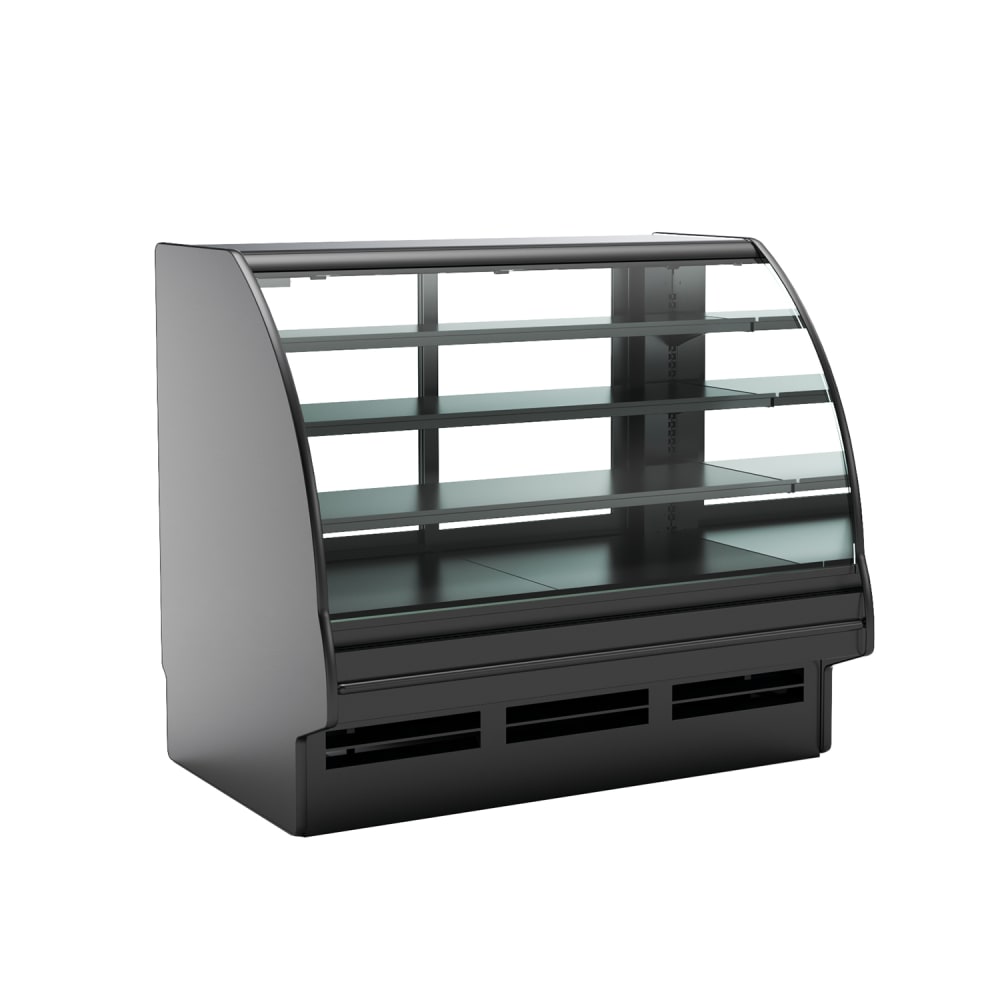

Structural Concepts GHS556R (CURVED) 62 7/8" Fusion® Horizontal Open Air Cooler w/ (4) Levels, 110-120v

The Structural Concepts GHS556R Fusion® horizontal open air cooler operates with a Breeze self-contained refrigeration system using R290 hydrocarbon refrigerant, offering efficient cooling and simplified installation. It maintains product temperatures at or below 40 degrees Fahrenheit without requiring external lines and features a front-breathing design for flexible placement. With four display levels, curved lift-up front glass, and frosted LED lighting on each tier, this model supports organized, high-visibility merchandising in service settings.

Built with a stainless steel rear exterior and a black powder-coated interior, the Structural Concepts GHS556R Fusion® horizontal open air cooler delivers durability and contrast for retail display. Rear sliding glass doors help streamline restocking and customer service. A base rail system supports leveling on uneven floors, and the compact footprint integrates easily into bakery, deli, and grocery layouts where temperature control and accessibility are essential.

Product Details

• Fusion Series
• Horizontal design
• 4 display levels
• Stainless steel rear exterior
• Black powder-coated interior
• Stainless steel end panels with mirror interior
• Curved lift-up front glass
• Clear sliding rear glass doors
• 1-in. Boston bumper
• Frosted LED 3500K lighting at top and shelves
• Casters w/ levelers base support

Refrigeration System

• Self-contained Breeze refrigeration system
• Front-breathing design
• R290 hydrocarbon refrigerant
• Average product temperature: 40 degrees F or less

Dimensions & Utilities

• Shelf: 58 in. W x 20 in. D (each level)
• Interior: 58 in. W x 27 in. D x 30 in. H
• Overall: 62⁷⁄₈ in. W x 43 in. D x 55³⁄₄ in. H
• 16 A, 1,697 W
• 110–120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-20P or L5-20P plug

*Free shipping on Structural Concepts GHS556R (CURVED) within the 48 contiguous states.

From The Manufacturer

Fusion® Refrigerated Full Service Case with Lift-up Curved Front Glass, 62-7/8"W x 43"D x 55-3/4"H, 40°F or less integrated average product temperature, LED top and shelf lights with frosted lens, Sliding rear doors, Breeze self-contained R290 refrigeration, stainless steel rear exterior, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor
