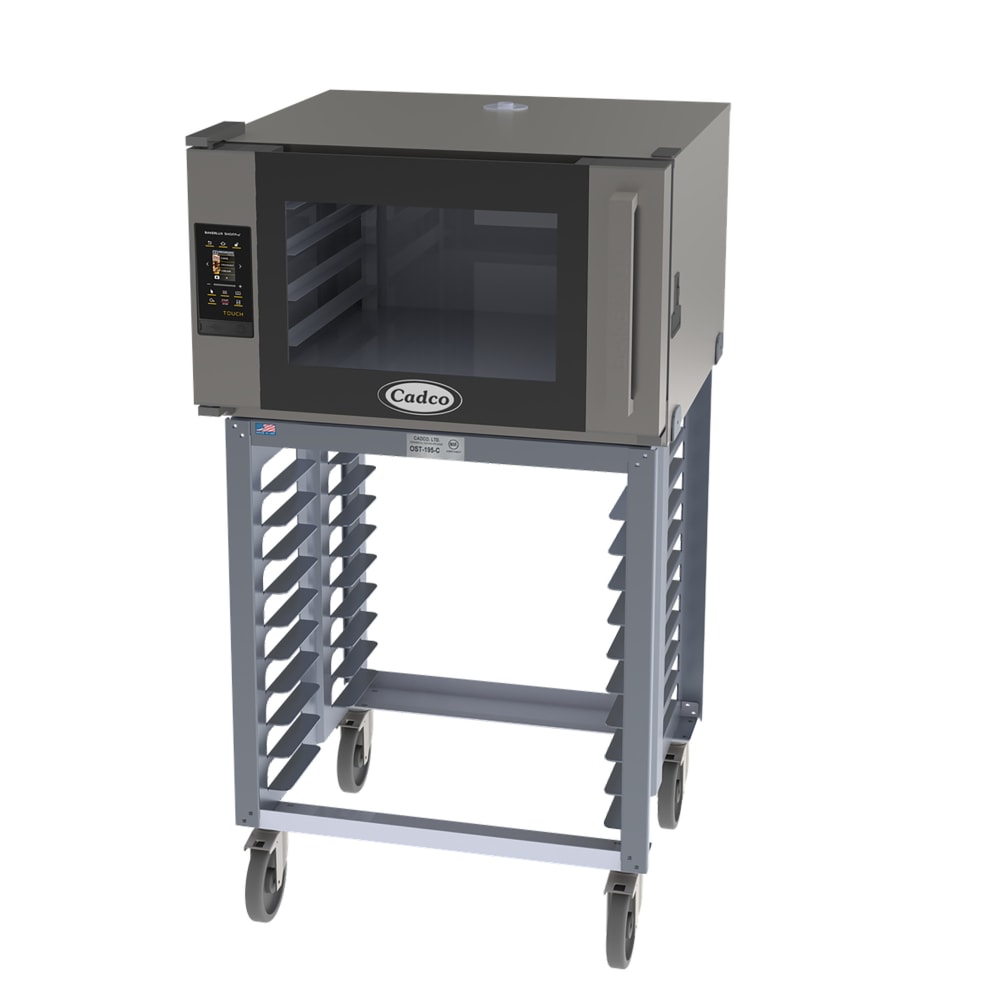

Cadco BLS-4FTR-1 Single Full Size Electric Convection Oven - 7.6kW, 208-240v/1ph

By using convection heat and adjustable humidity, the Cadco BLS-4FTR-1 convection oven uniformly and quickly bakes, rethermalizes, roasts, or warms a range of products. Its figure-eight advanced airflow design evenly directs heat toward food, while the reversible fan guides large volumes of air into or out of the cooking chamber for expedited heating. To simplify oven setup for frequently cooked recipes, its BAKERLUX™ TOUCH panel can save 99 programs and nine baking steps. This system also allows staff to set the timer, modify the humidity in 20-percent increments, and adjust temperatures from 175 to 500 degrees Fahrenheit. Because this unit is compatible with USB ports and Wi-Fi, it can be used to track records for data-driven cooking.

This convection oven's 4-cubic-foot cooking chamber measures 27¹⁄₄ inches wide by 19 inches deep by 13¹⁄₄ inches high and includes four wire shelves spaced 2⁵⁄₈ inches apart; four full-size pans (sold separately) can fit in this unit. The right-hinged door provides direct access to the interior for seamless pan removal and insertion, while its heavy-duty design withstands repeated opening and closing. The door's double-wall glass panel grants a view into the chamber and remains cool to the touch throughout baking. When the door is closed, it locks automatically. To withstand high-volume use, the unit's interior and exterior are made of durable, rust- and corrosion-resistant stainless steel.

To position the Cadco BLS-4FTR-1 convection oven at a comfortable working height, this 31¹⁄₂-inch-wide by 35¹⁄₂-inch-deep by 19⁷⁄₈-inch-tall unit is positioned on the Cadco OST-195-C stand, which measures 31¹⁄₂ inches wide by 27 inches deep by 38 inches high. As many as 10 full-size sheet pans can be stored on the stand's pan slides. This aluminum unit is equipped with four silent casters—two with brakes and two with directional locks—for smooth-rolling transport and stability during use.

Product Details

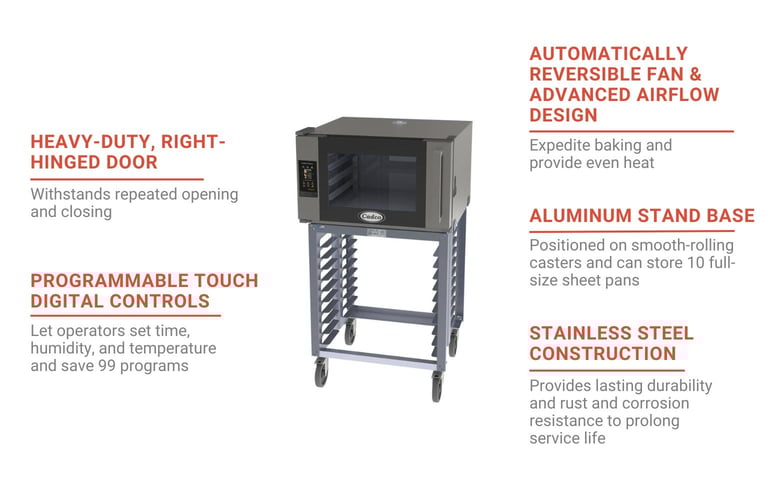

• Part of the BAKERLUX TOUCH collection
• Cooking chamber capacity: 4 cu. ft.
• Full-size configuration
• 4 wire shelves accommodate 4 full-size sheet pans (sold separately)
• Durable stainless steel construction
• Right-hinged, heavy-duty door with cool-touch, double-wall glass panel
• Door locks automatically
• Shelves spaced 2⁵⁄₈ in. apart
• LED-lighted interior
• Positioned on the included Cadco OST-195-C full-size oven stand
• Advanced figure-8 airflow design evenly distributes heat
• Expedite cooking with automatically reversible 2-speed fan
• TOUCH digital control panel with programmable time, temperature, and humidity controls
• Timer can be set from 0 to 10 hours or to continuous use
• Operating temperature: 175-500 degrees F
• Humidity can from 0-100 percent in 20-percent increments
• Saves 99 programs
• 9 baking steps
• Proofer control
• USB programming capability and Wi-Fi connection for data-driven cooking
• Chef Support available on phone
• Light flashes and alarm beeps when cycle is complete
• Extra-large motor withstands high-volume use
• Automatically shuts off when door is opened
• Includes electro valve for direct plumbed water connection
• Standard ice machine filter recommended when using humidity hookup

Dimensions & Utilities

• Cooking chamber: 27¹⁄₄ in. W x 19 in. D x 13¹⁄₄ in. H
• Stand: 31¹⁄₂ in. W x 27 in. D x 38 in. H
• Oven: 31¹⁄₂ in. W x 35¹⁄₂ in. D x 19⁷⁄₈ in. H
• Overall: 31¹⁄₂ in. W x 35¹⁄₂ in. D x 57⁷⁄₈ in. H
• 32 A, 7600 W
• 208-240 V/60 Hz/1 ph, includes cord and NEMA 6-50P plug

Product Features

From The Manufacturer

Bakerlux™ TOUCH Heavy-Duty Convection Oven, electric, single full size with stand, (4) shelves, 4 cu.ft. interior, holds (4) full size sheet pans (not included), digital touch controls for time, temperature, & humidity, 175-500° F, 10 hour timer or continuous on, 9 baking steps, saves up to (99) programs with graphic control panel, USB programming capability, wi-fi, data driven cooking, auto fan & heat shut-off when door is opened, (2) automatically reversible fans, (2) fan speeds, interior LED light, extra large motor, side-opening double wall cool-touch glass door, includes electro valve for direct water connection, heavy-duty stainless steel construction, 208-240v/60/1-ph, 7600 watts, 32.0 amps, NEMA 6-50P, NSF, MET to UL & CSA standards, can run optional proofer

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 2-year Parts; 90-day Light Bulbs & Gasket; 30-day Glass
