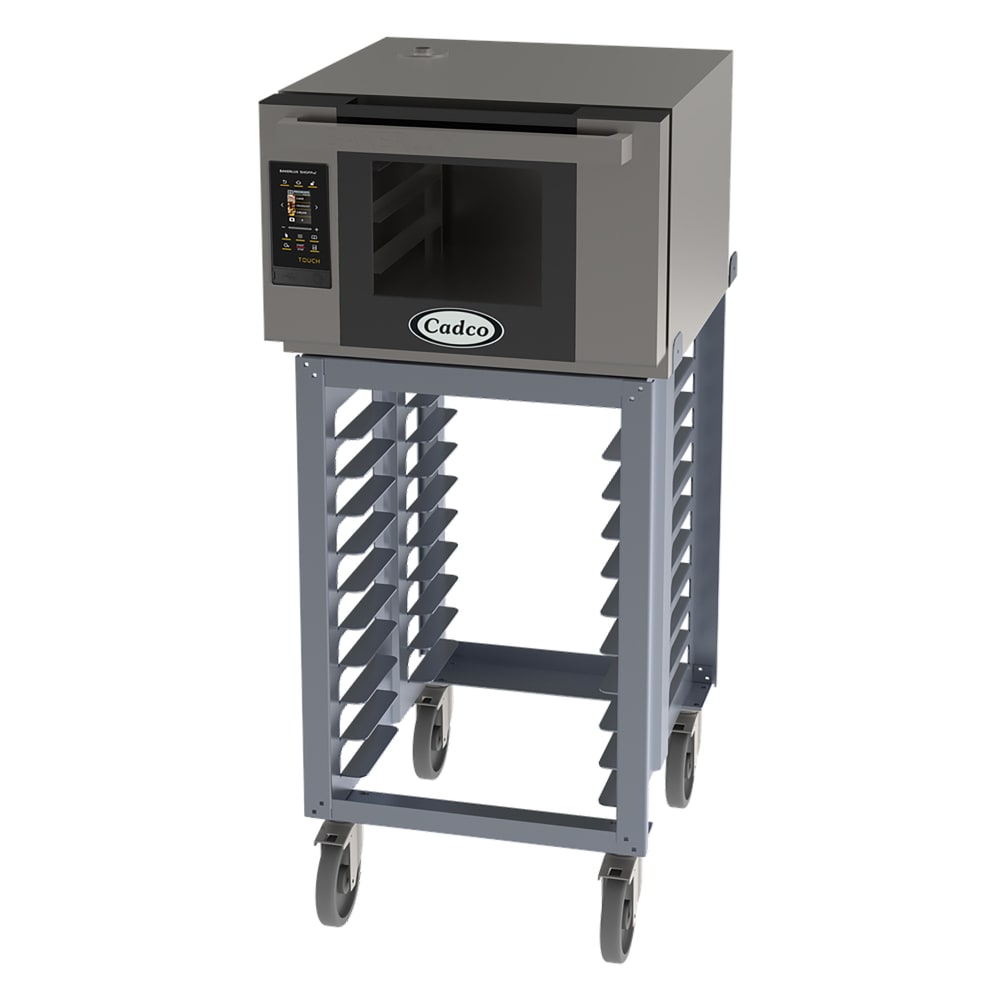

Cadco BLS-3HTD-1 Single Half Size Electric Convection Oven - 3.3kW, 208-240v/1ph

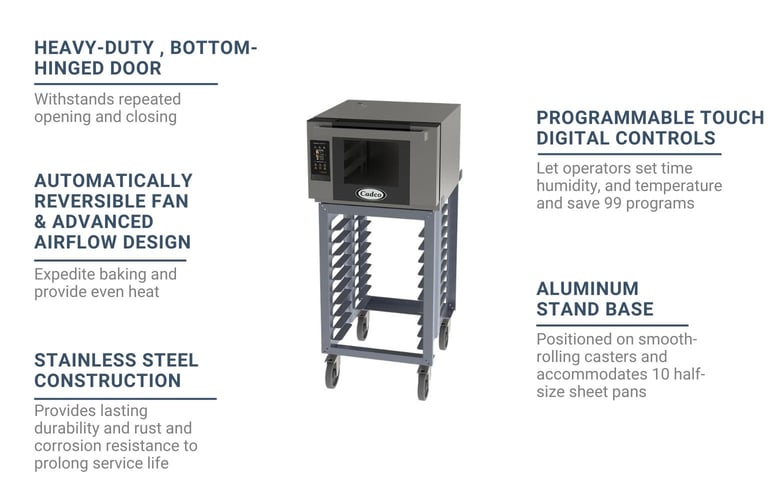

The Cadco BLS-3HTD-1 half-size convection oven uses a combination of convection heat and humidity to bake, warm, roast, or rethermalize food and preserve its original quality. The advanced figure-eight airflow design evenly heats product, while the reversible fan guides a large volume of air into the cooking chamber. Staff can streamline setup by programming the TOUCH digital controls, which feature nine baking steps, a timer, two fan speeds, proofer control, 99 programs, and adjustable humidity percentage and temperature. To keep records for data-driven cooking, this unit can be connected to Wi-Fi and utilize USB programming. When a cook cycle is complete, the unit beeps and a light flashes to alert staff, and for user safety, the unit shuts off automatically when the door is opened.

This 23⁵⁄₈-inch-wide by 29-inch-deep by 16⁵⁄₈-inch-tall convection oven boasts a 19¹⁄₄-inch-wide by 14-inch-deep by 10¹⁄₄-inch-tall cooking chamber with three wire shelves that can accommodate three half-size sheet pans (sold separately). Its bottom-hinged door eases pan insertion and removal, while its heavy-duty construction withstands repeated opening and closing. Its double-glass design provides a full view of the LED-lighted interior so users can monitor baking. To preserve its original condition throughout high-volume use, this unit is made of rugged, corrosion- and rust-resistant stainless steel.

The Cadco BLS-3HTD-1 half-size commercial convection oven can be placed on the included Cadco OST-34A-C half-size oven stand to save counterspace and elevate the unit. Made of durable, corrosion-resistant aluminum, this stand withstands heavy-duty use and can be wiped clean. Its open base is lined with pan racks that accommodate 10 half-size pans. Its four casters provide smooth mobility for simple transport, and the two brakes and two directional locks enhance stabilization during use.

Product Details

• Part of the BAKERLUX™ TOUCH series
1.6-cu.-ft. cooking chamber capacity
• Accommodates 3 half-size sheet pans (sold separately)
• Resilient, rust- and corrosion-resistant stainless steel
• Cool-touch, double-wall glass door with bottom-hinged, heavy-duty design
• 3 wire shelves spaced 2⁵⁄₈ in. apart
• Cooking chamber illuminated with LED light
• Positioned on the included Cadco OST-34A-C half-size oven stand
• Advanced figure-8 airflow design for even heating
• Automatically reversible fan increases volume of air in cooking chamber
• TOUCH control panel with programmable time and temperature digital controls
• 9 baking steps
• Operating temperature: 175-500 degrees F
• Humidity can be set at 0, 20, 40, 60, 80, or 100 percent
• Saves 99 programs
• 0-infinite timer settings
• Proofer control
• 2 fan speeds
• Wi-Fi and USB compatible
• Data-driven cooking
• Flashing light and beep at end of each cycle
• Extra-large motor withstands high-volume use
• Automatic shutoff when door is opened
• Chef Support compatible via phone
• Includes electro valve for direct plumbed water connection
• Standard ice machine filter recommended when using humidity hookup

Dimensions & Utilities

• Cooking chamber: 19¹⁄₄ in. W x 14 in. D x 10¹⁄₄ in. H
• Stand: 22 in. W x 27 in. D x 40 in. H
• Oven: 23⁵⁄₈ in. W x 29 in. D x 16⁵⁄₈ in. H
• Overall: 23⁵⁄₈ in. W x 29 in. D x 56⁵⁄₈ in. H
• 14 A, 3300 W
• 208-240 V/60 Hz/1 ph, includes cord and NEMA 6-20P plug

Product Features

From The Manufacturer

Bakerlux™ TOUCH Heavy-Duty Convection Oven, electric, single half size with stand, (3) shelves, 1.6 cu.ft. interior, holds (3) 1/2 size sheet pans (not included), digital touch controls for time, temperature, & humidity, 175-500° F, 10 hour timer or continuous on, 9 baking steps, saves up to (99) programs with graphic control panel, USB programming capability, wi-fi, data driven cooking, auto fan & heat shut-off when door is opened, (1) automatically reversible fan, (2) fan speeds, interior LED light, extra large motor, top-opening double wall cool-touch glass door, includes electro valve for direct water connection, heavy-duty stainless steel construction, 208-240v/60/1-ph, 3300 watts, 14.0 amps, NEMA 6-20P, NSF, MET to UL & CSA standards, can run optional proofer

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 2-year Parts; 90-day Light Bulbs & Gasket; 30-day Glass
