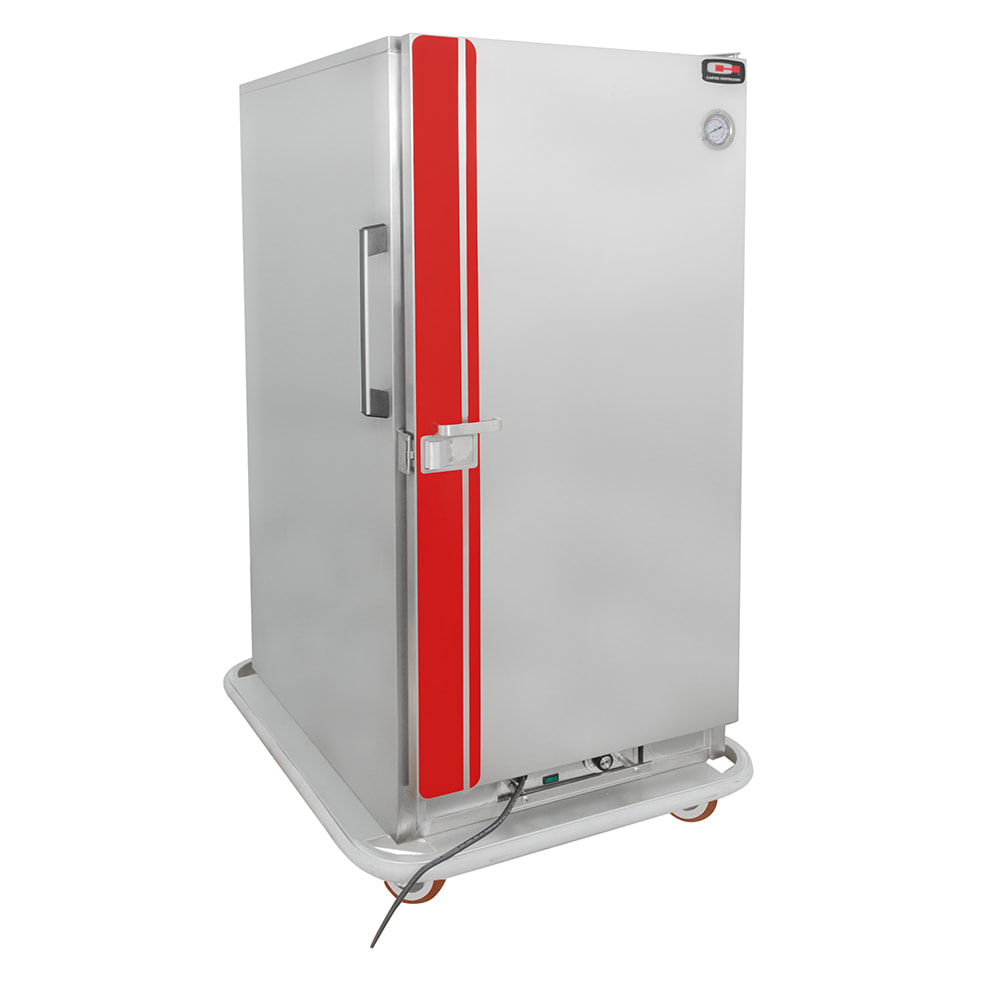

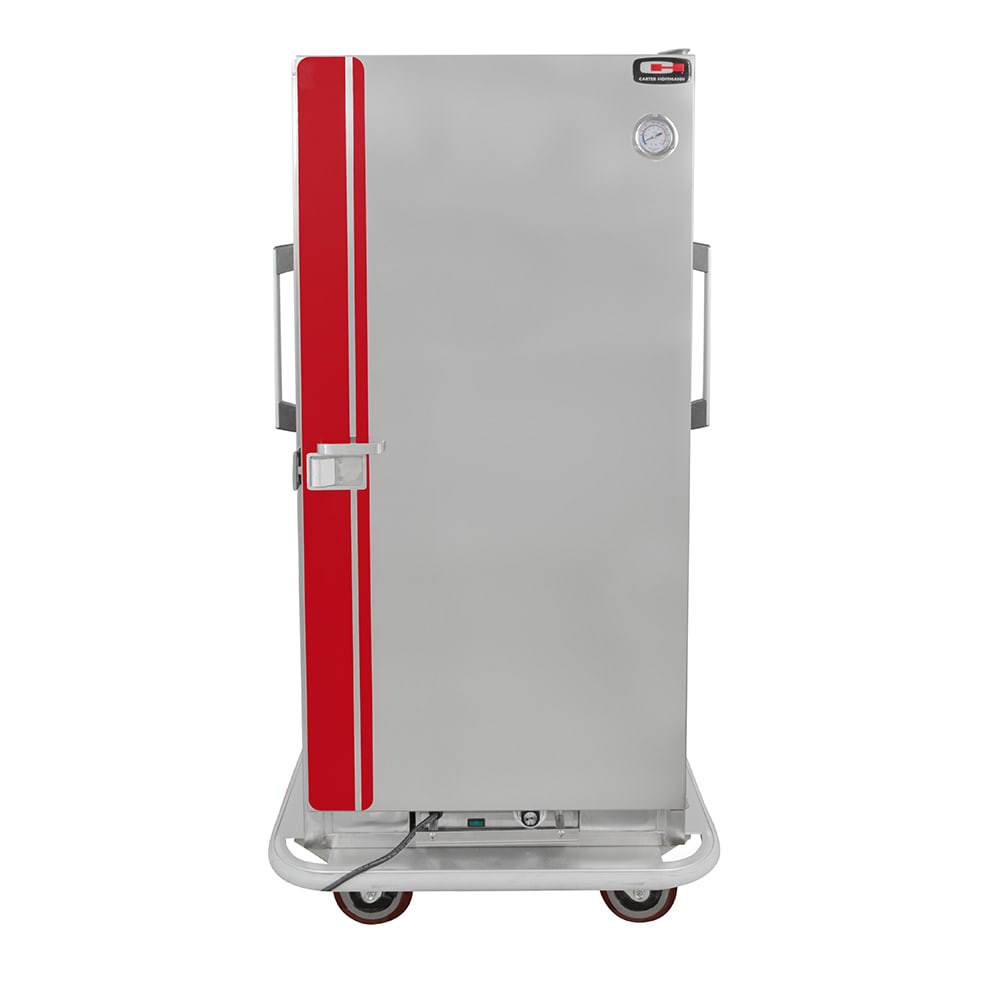

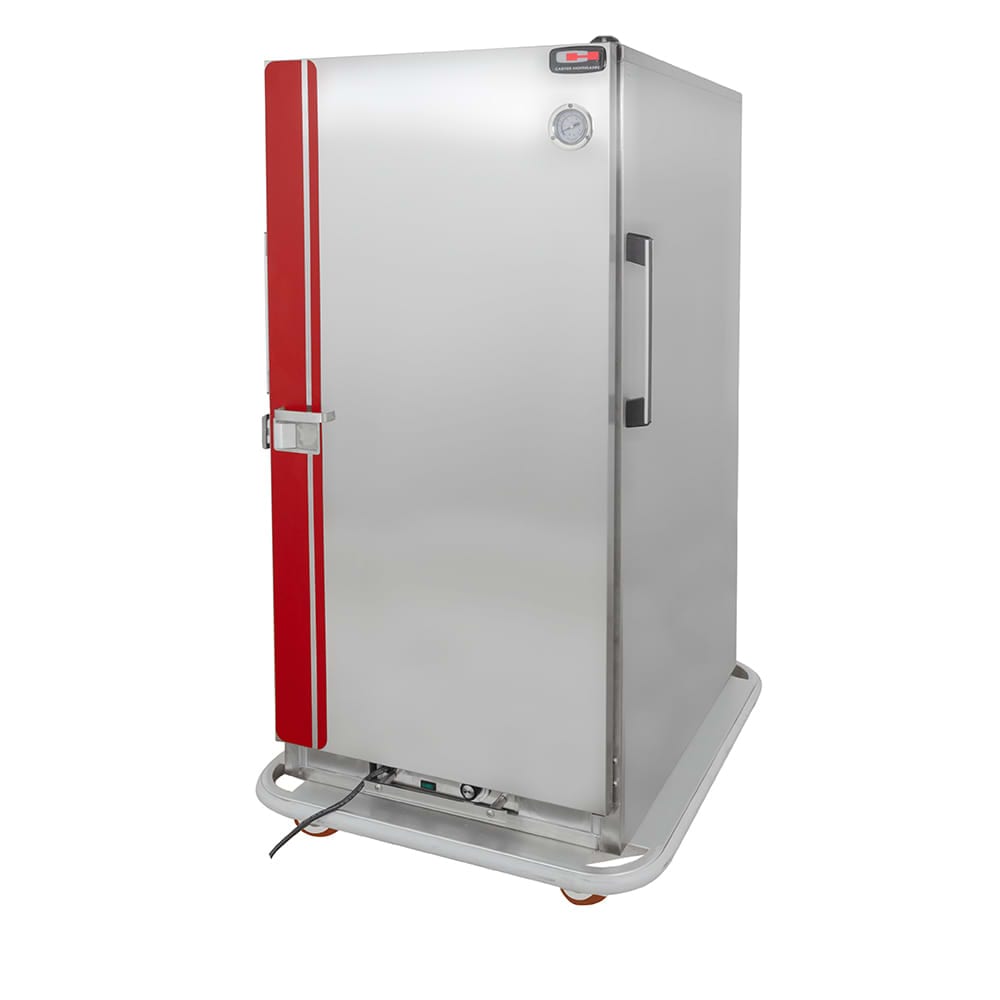

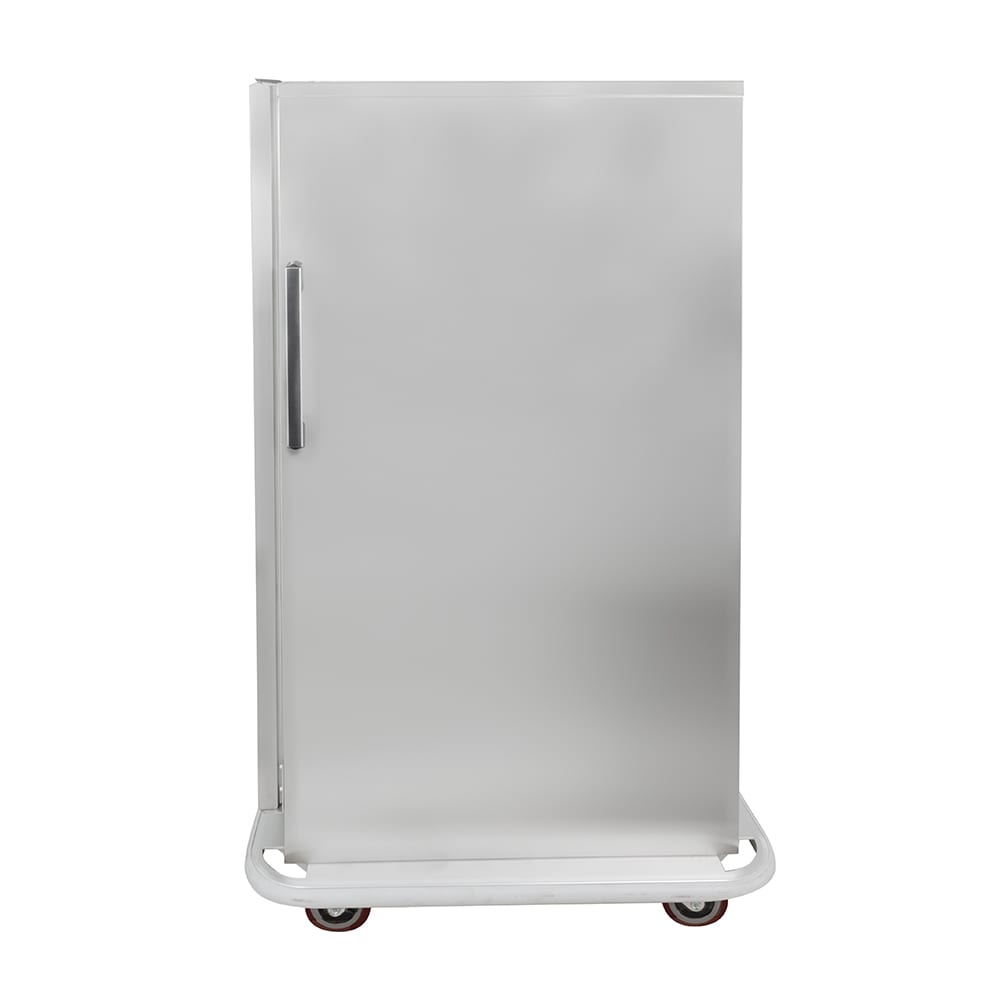

Carter-Hoffmann PH1810 3/4 Height Insulated Mobile Heated Cabinet w/ (12) Pan Capacity, 120v

For medium-volume applications, the Carter-Hoffmann PH1810 mobile heated cabinet's universal slides can support (13) 18-inch by 26-inch sheet pans or (26) 12-inch by 20-inch sheet pans, and they can be adjusted in 1.75-inch increments when needed. This ³⁄₄-height unit measures 30.63 inches wide by 36 inches deep by 59.25 inches high and is fitted with 5-inch swivel polyurethane casters for smooth mobility. The casters are positioned in an offset, wheel-ahead pattern that prevents two casters from rolling over an uneven surface at the same time, and two casters have brakes to secure the cabinet in place. Operators can steer the unit with the two heavy-duty aluminum push handles mounted on the sides, and a wraparound vinyl bumper on the unit's base minimizes damage and helps prevent scuffing if the cart collides with walls or furniture. Constructed of welded, rust- and corrosion-resistant stainless steel, this mobile unit withstands impacts and heavy use.

Because this Carter-Hoffmann PH1810 mobile heated cart has a convection heating system, it can preheat to 160 degrees Fahrenheit in 25 minutes and recover temperature fluctuations in minutes. This system uses a blower to disperse heat evenly, ensuring prepared foods are warm for serving. Operators can set the cabinet to reach temperatures high as 200 degrees Fahrenheit using the dial thermostat, and the door's 1.50-inch-thick, high-density fiberglass insulation maintains programmed temperatures when the unit is stored in a cool, ambient environment. To prevent heat from escaping, the door also includes a vinyl gasket and a high-temperature magnetic door gasket. When the heater needs to be cleaned or serviced, it can be lifted from its bottom-mounted position.

Product Details

• Part of the PH series
• ³⁄₄-height, reach-in design
• 46-in. inside working height
• Capacity: (13) 18-in. x 26-in. sheet pans or (26) 12-in. x 20-in. steam table pans

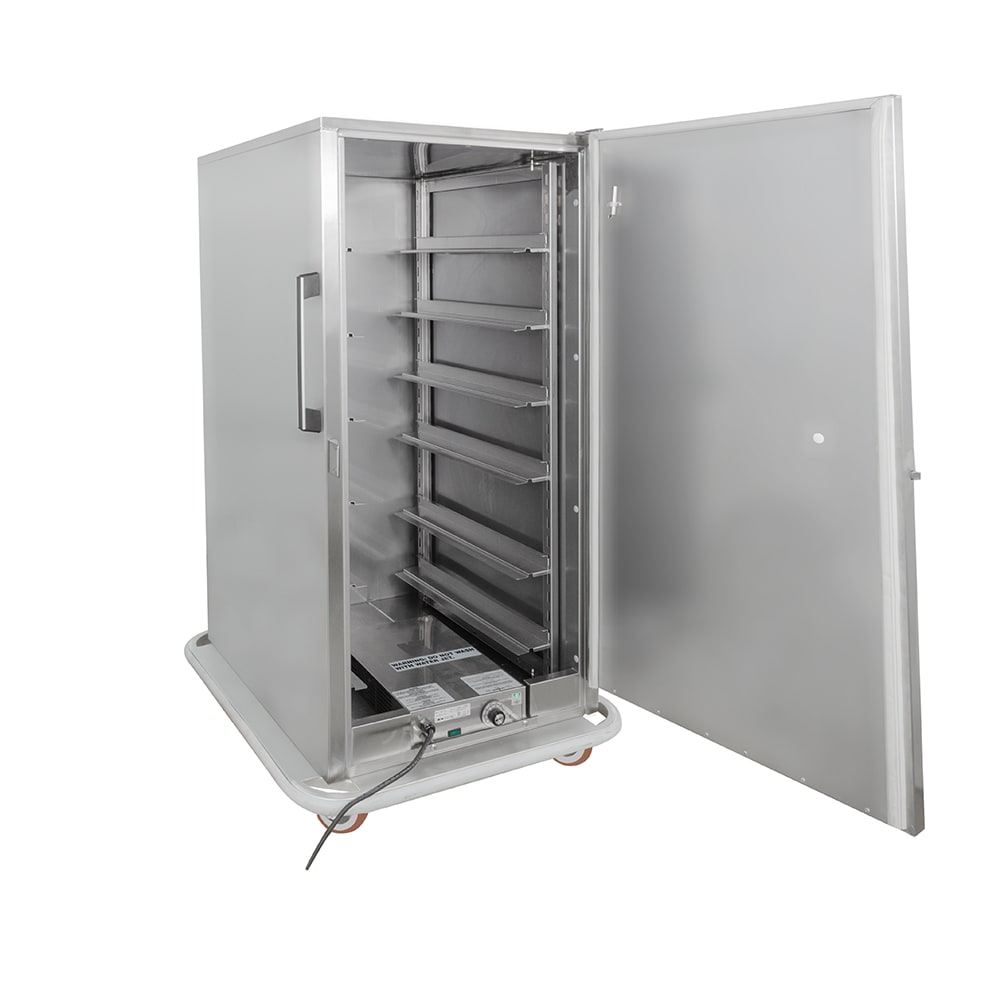

• Removable tray racks with tray slides (adjustable in 1.75-in. increments)
• All-welded stainless steel construction

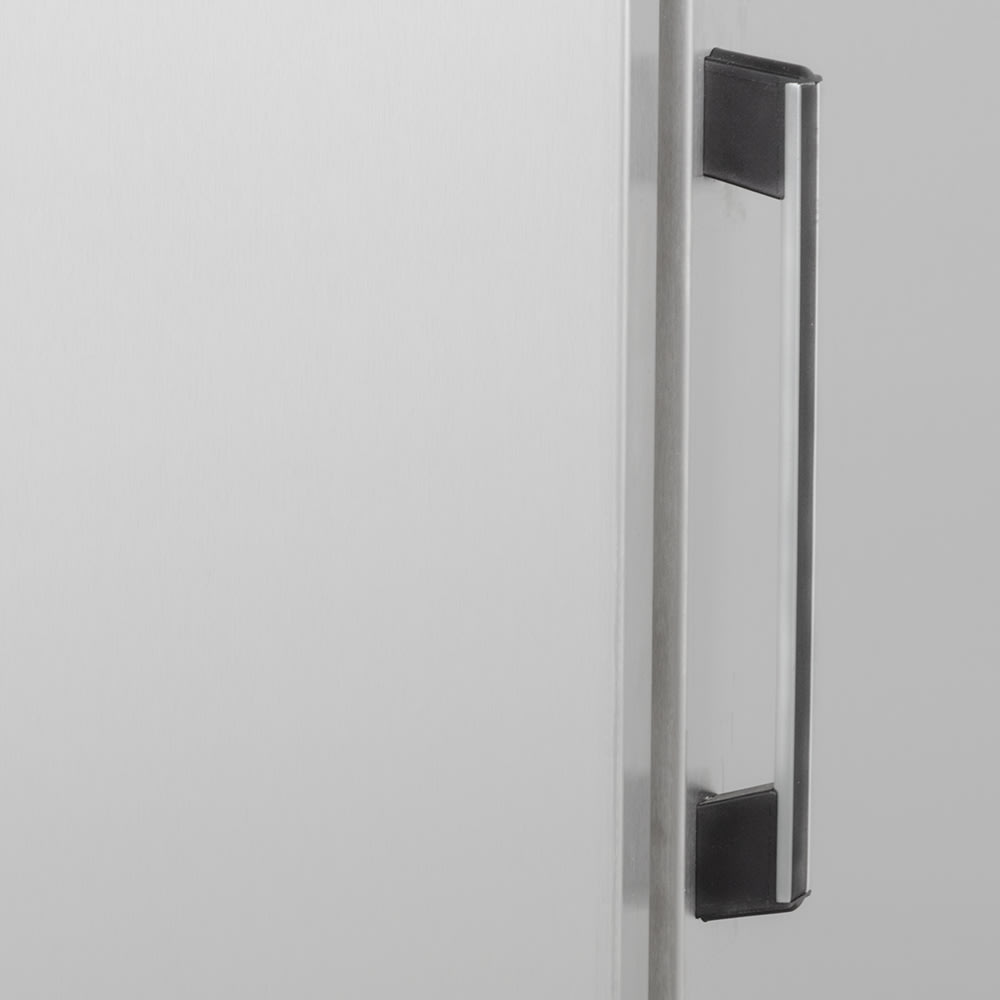

• 2 side-mounted aluminum vertical push handles

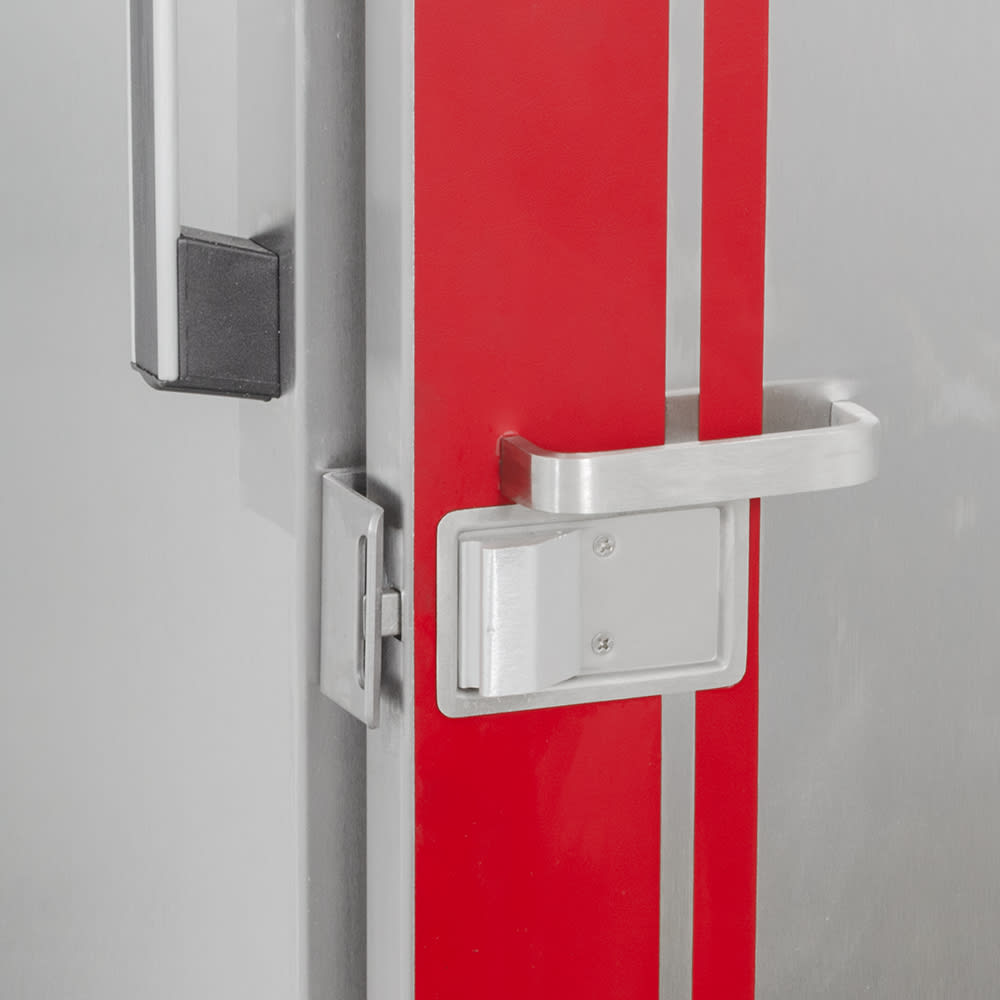

• 1 double-panel door with vinyl and high-temperature magnetic door gaskets
• Door insulated with 1.50-in.-thick, high-density fiberglass
• Wraparound, nonmarking gray vinyl bumper

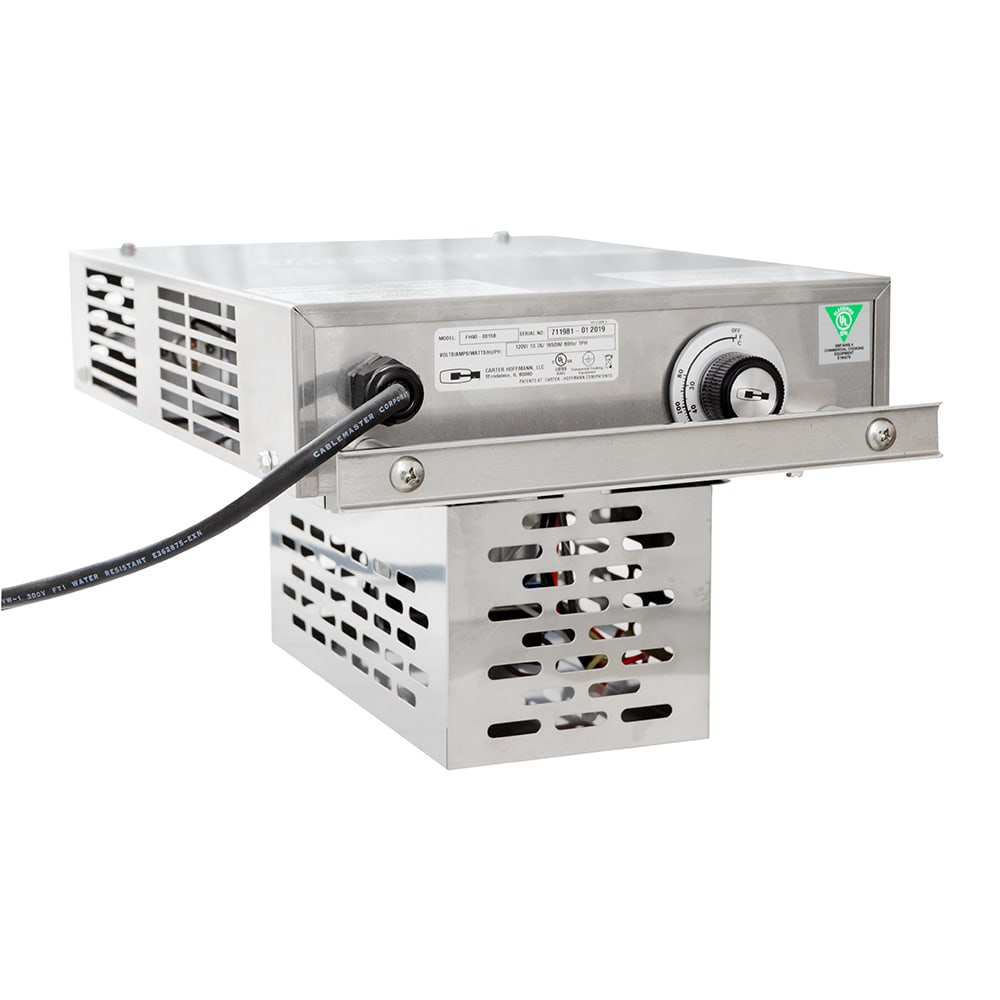

• Removable, bottom-mounted convection heating system
• Dial thermometer and remote sensing bulb
• Can heat to 200 degrees F
• Preheats to 160 degrees F in 25 minutes
• (4) 5-in. swivel polyurethane casters (2 with brakes) with offset, wheel-ahead design
• Requires 2-in. clearance from wall and combustible materials and 36-in. front clearance

Product Features

Dimensions & Utilities

• 30.63 in. W x 36 in. D x 59.25 in. H
• 13.7 A, 1650 W
• 120 V/60 Hz/1 ph, includes 10-ft. 3-wire rubber cord with 3-prong grounding NEMA 5-15P plug

From The Manufacturer

Heated Cabinet, mobile, insulated, bottom mount forced-air heat system, universal slides hold (24) 12"x20" or (12) 18"x26" pans at 3-1/2" spacing, slides adjustable in 1-3/4" increments, stainless steel construction, wrap-around bumper, 5" swivel casters, cUL, UL EPH, CE

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Parts & Labor
