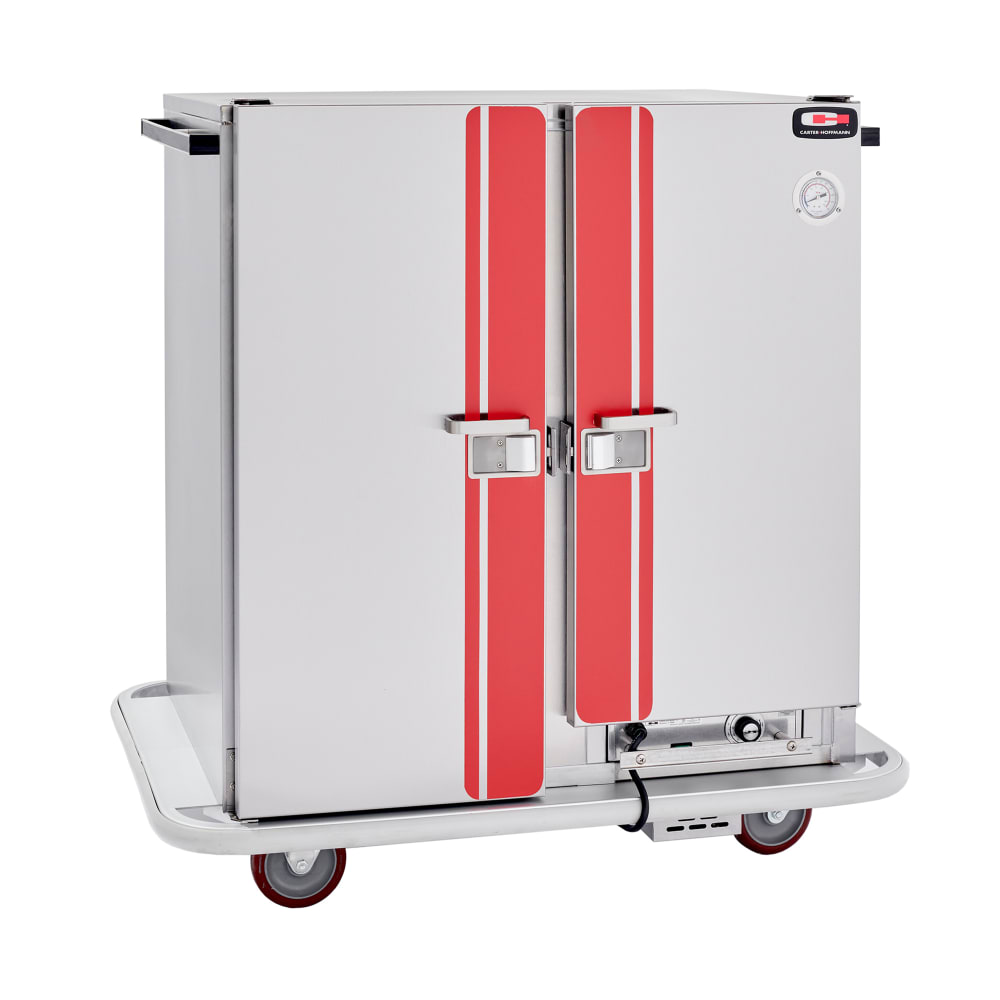

Carter-Hoffmann PH1215 1/2 Height Insulated Mobile Heated Cabinet w/ (21) Pan Capacity, 120v

As a half-height unit, this Carter-Hoffmann PH1215 mobile heated cabinet measures 46³⁄₄ inches wide by 28 inches deep by 42 inches high. This cabinet is mounted on 5-inch polyurethane casters for mobility. Two of the casters swivel, enabling turning and reversal, while two casters are rigid for stabilization throughout use. These casters are configured in an offset, wheel-ahead pattern, meaning one caster is positioned in front of the other to prevent two casters from passing over uneven ground simultaneously, which could cause the unit to fall. Constructed of all-welded stainless steel, this cabinet resists rust and corrosion over time to preserve its original, sleek look; a non-marking, gray vinyl bumper wraps around the base to protect the unit, walls, and furniture from scuffs or scrapes during transport. For improved control during transport, two heavy-duty, vertical push handles are bolted to its sides.

Designed to keep cooked food warm for serving, the Carter-Hoffmann PH1215 heated cabinet's bottom-mounted convection heating system uses forced air to circulate heat evenly throughout the cabinet. Operators can adjust temperatures as high as 200 degrees Fahrenheit using the dial thermometer, and its remote sensing bulb gauges the cabinet's interior temperature accurately. High-density, 1-inch-thick insulation preserves the cabinet's programmed temperatures when the doors are opened or when the system is stored in cool ambient environments. Its two doors include a high-temperature magnetic door gasket that keeps them closed, reducing the risk of unexpected temperature changes. Overall, its removable tray racks and channel slides are built on 2.75-inch centers and can accommodate (21) 12-inch by 20-inch steam pans.

Product Details

• Part of the PH line
• Half-height, reach-in unit
• 30-in. inside working height
• Capacity: (21) 12-in. x 20-in. steam table pans
• Removable tray racks with channel slides secured on 2.75-in. centers
• All-welded, rust- and corrosion-resistant stainless steel construction
• High-density, 1-in.-thick insulation
• 2 doors with vinyl gasket and high-temperature magnetic door gasket
• Doors swing out 270 degrees
• 2 heavy-duty aluminum vertical push handles on sides
• Gray vinyl bumper along bottom perimeter
• Bottom-mounted, removable convection heating system
• Dial thermometer with remote sensing bulb
• Can heat to 200 degrees F
• Preheats to 160 degrees F in 25 minutes
• (4) 5-in. polyurethane swivel casters (2 with brakes, 2 swivel) with offset, wheel-ahead design
• 2-in. clearance required from wall and combustible materials
• 36-in. front clearance required

Dimensions & Utilities

• 46³⁄₄ in. W x 28 in. D x 42 in. H
• 13.7 A, 1650 W
• 120 V/60 Hz/1 ph, includes 10-ft. three-wire rubber cord with 3-prong grounding NEMA 5-15P plug

Product Features

From The Manufacturer

Heated Cabinet, mobile, 2 doors, insulated, removable bottom mounted forced-air heating system, removable slides for (21) 12"x 20" pans, slides on 2-3/4" centers, stainless steel construction, wrap-around bumper, 5" casters (2 swivel, 2 rigid), cUL, UL EPH, CE

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Parts & Labor
