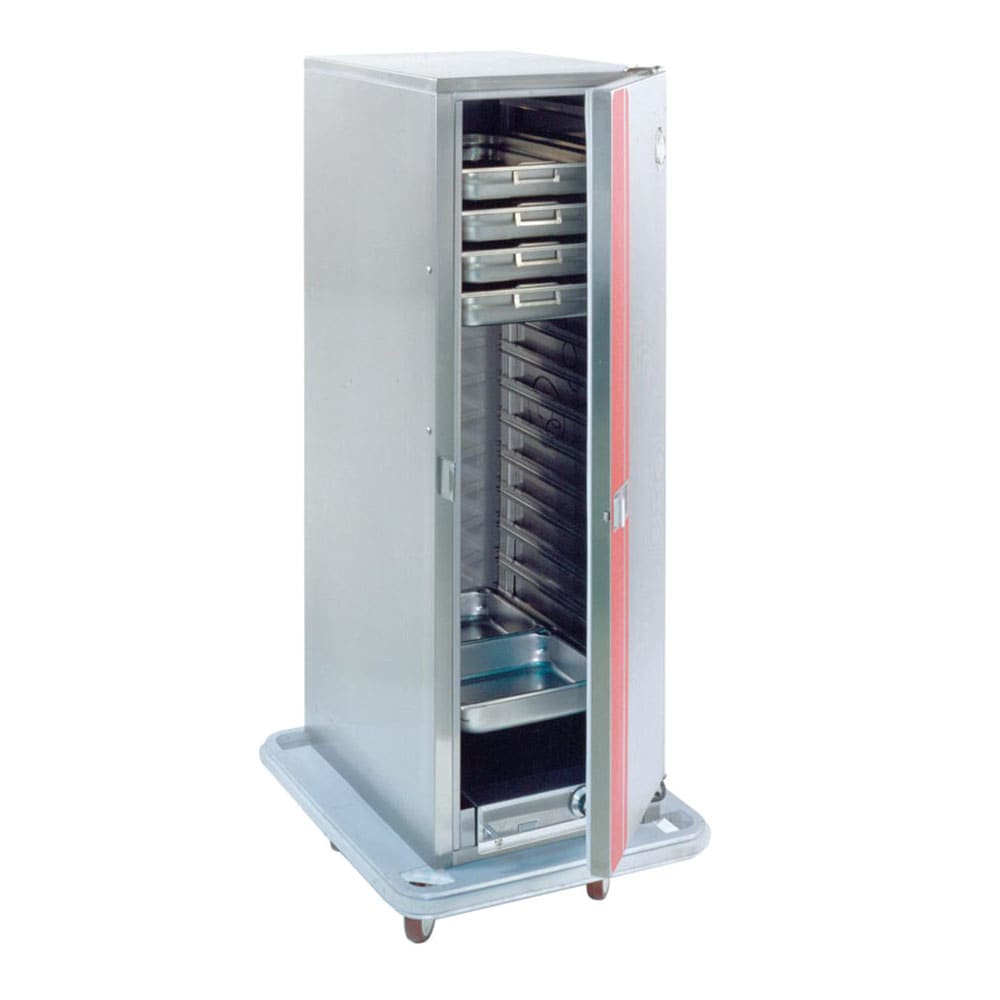

Carter-Hoffmann PH1200 3/4 Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v

Built for catering businesses, this Carter-Hoffmann PH1200 heated cabinet's forced-air heating system circulates hot air evenly throughout the cabinet, eliminating cold spots that could affect food quality. This bottom-mounted, lift-out convection heating system includes dial controls that let operators adjust temperatures as high as 200 degrees Fahrenheit; a remote sensing bulb monitors temperatures accurately. To preserve reached temperatures, the interior is lined with high-density, 1-inch-thick insulation. Its door features a high-temperature magnetic door gasket that secures it in place when closed, preventing hot air from escaping. Inside the cabinet, removable tray racks with channel slides can accommodate (16) 12-inch by 20-inch steam table pans on 2.75-inch centers.

The Carter-Hoffmann PH1200 reach-in heated cabinet's rust- and corrosion-resistant stainless steel construction is fully welded to withstand high-volume use. By opening its single door, which opens 270 degrees, operators can retrieve and load steam pans without interference. This 24-inch-wide by 28-inch-deep by 58-inch-high system is mounted on 5-inch polyurethane swivel casters with an offset, wheel-ahead pattern; this prevents two wheels from passing over an uneven surface simultaneously, which can cause units to topple. Two casters are fitted with brakes for stabilization throughout use. A vinyl bumper wraps around the base's perimeter to protect walls, furniture, and equipment from impacts as it's transported.

Product Details

• Part of the PH series
• ³⁄₄-height unit
• Reach-in configuration with 1 compartment
• 46-in. inside working height
• Capacity: (16) 12-in. x 20-in. steam table pans
• Removable tray racks with channel slides on 2.75-in. centers
• Welded stainless steel construction
• 1-in.-thick, high-density insulation
• 1 door with vinyl gasket
• 270-degree door swing
• High-temperature magnetic door gasket
• 2 heavy-duty aluminum vertical push handles on sides
• Gray vinyl bumper along bottom perimeter
• Removable, bottom-mounted convection heating system
• Dial thermometer with remote sensing bulb
• Can heat to 200 degrees F
• Preheats to 160 degrees F in 25 minutes
• (4) 5-in. polyurethane swivel casters (2 with brakes) with offset, wheel-ahead design
• 2-in. clearance required from wall and combustible materials
• 36-in. front clearance required

Dimensions & Utilities

• 24 in. W x 28 in. D x 58 in. H
• 12.8 A, 1530 W
• 120 V/60 Hz/1 ph, includes 10-ft. three-wire rubber cord with 3-prong grounding NEMA 5-15P plug

Product Features

From The Manufacturer

Heated Cabinet, mobile, 1 door, insulated, removable bottom mounted forced-air heating system, removable slides for (16) 12"x 20" pans, slides on 2-3/4" centers, stainless steel construction, wrap-around bumper, 5" swivel casters, cUL, UL EPH, CE

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Parts & Labor

Carter-Hoffmann PH1200 Specifications

Documents

Spec Sheet

Warranty

Manual

Brochure

Certifications
