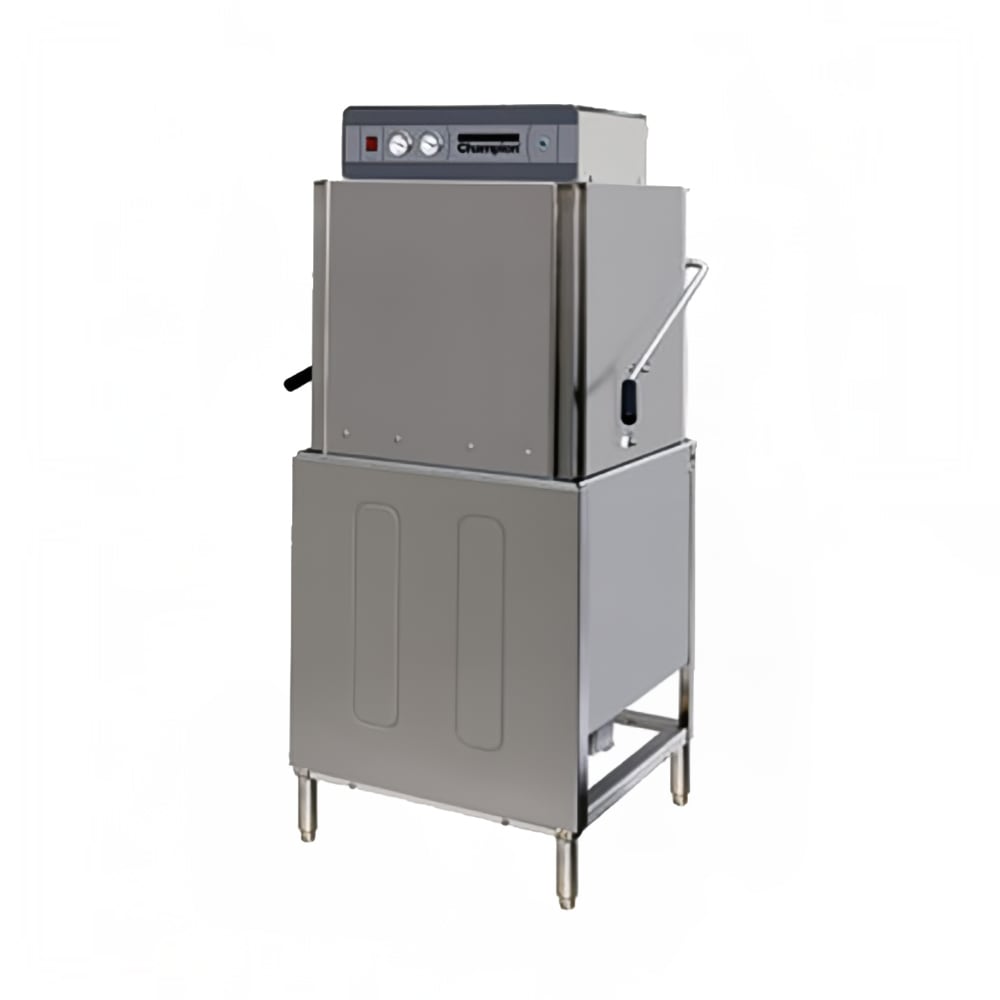

Champion DH-2000 High Temp Door Type Dishwasher w/ Built-In Booster, 240v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 462-DH20002403 • MPN: DH-2000(40-70) 2403

Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $10,065.00

Selected Voltage: 240V, 3 Phase

Image may not depict product color, inclusions or accessories.

Champion DH-2000 Description


Champion's DH-2000 2403 Versa-Clean 55-rack door-type dishwasher has a built-in booster can be set for either a 40 or 70 degree rise. It is made to be field convertible to single or three phase, 208 or 240 volts. It also has a self-draining pump and top-mounted splash proof controls.

Product Details:

  • Built-in booster configured for both 40 and 70 degrees F
  • Field convertible to 1 to 3-ph, 208 or 240 volts
  • Self-draining pump
  • Rinse Sentry feature extends the cycle time to ensure final rinse at 180 degrees F
  • Auto start program starts unit when the doors are closed
  • Single point connection
  • High-efficiency 1-hp pump
  • Automatic tank fill
  • Detergent/chemical connections
  • Interchangeable upper and lower arm
  • Top-mounted splash proof controls
  • Automatic drain valve
  • Vent fan control
  • Pressure regulating valve
  • Low water tank heat protection
  • 240 V/60 hz/3-ph, 45 A
  • Overall Dimensions: 30-7/8 in. W x 26-in. D x 66-3/8 in. H
  • cULus Listed, NSF and Energy Star Certified

Versa-Clean Dishwasher, door type, high temperature with built-in 40° & 70° F rise electric booster, self-draining pump, 55 racks/hour capacity, auto-fill, stainless steel construction, electric tank heat, NSF, cULus, 1hp, ENERGY STAR®, 240v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Champion DH-2000 Specifications

PDF Spec Sheet
Manufacturer Champion
Height (in) 66.38
Width (in) 30.88
Design Standard
Type High Temp
Heat Electric
Racks per Hour 55
Door Type Lift Up
Depth (in) 26
Cavity Height 17.38
Control Location Top of Unit
Specialty Options Booster Heater
Phase 3
Hertz 60
Voltage 240
Weight 300.00
Champion DH-2000 Certifications
  • UL
  • NSF
  • Energy Star
