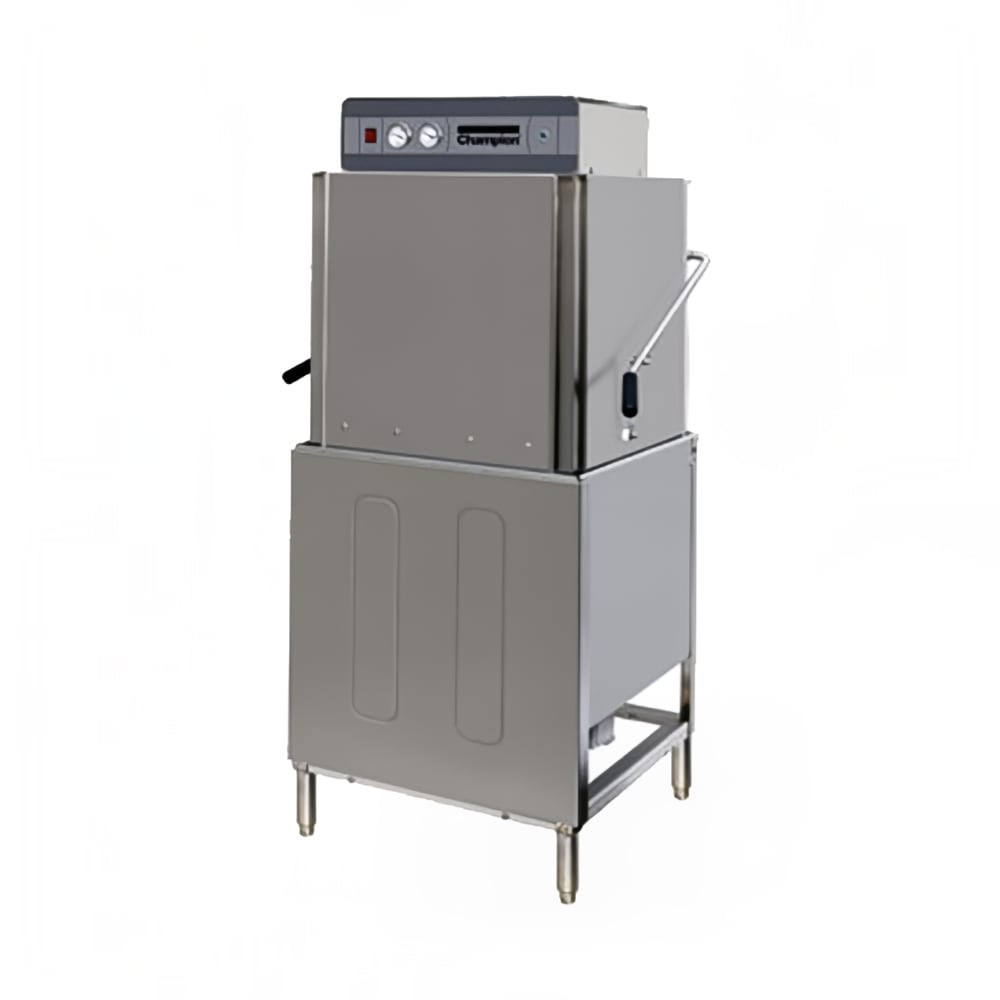

Champion DH-2000 Electric High Temp Door-Type Dishwasher w/ Booster Heater, 208v/3ph

KaTom #: 462-DH20002083 • MPN: DH-2000(40-70) 2083

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $12,775.00
$8,942.50 / Each

Champion DH-2000 Description

Champion's DH-2000 2083 Versa-Clean 55-rack door-type dishwasher can get your dishes cleaned efficiently and quickly. This high-temperature unit has a built-in booster configured for both 40 and 70 degrees. It has a Rinse Sentry feature that extends the cycle time to assure the final rinse is set at 180 degrees. It also has an auto start program to start the unit when the doors are closed.

Product Details:

  • Built-in booster configured for both 40 and 70 degree F rise
  • Rinse Sentry ensures a final rinse at 180 degrees F
  • Auto start program starts unit when the doors are closed for simple operation
  • Field convertible to 1 to 3-ph, 208 or 240 volts for versatile installation options
  • Single point connection
  • High-efficiency 1-hp, self-draining pump
  • Automatic tank fill
  • Detergent/chemical connections
  • Interchangeable upper and lower arm
  • Top-mounted controls are splash-proof, protecting them from water damage
  • Automatic drain valve
  • Vent fan control
  • Pressure regulating valve
  • Low water tank heat protection keeps components from burning out in the absence of water
  • 208 V/60 hz/3-ph, 40 A
  • Overall Dimensions: 30-7/8 in. W x 26-in. D x 66-3/8 in. H
  • cULus Listed, NSF and Energy Star Certified

Versa-Clean Dishwasher, door type, high temperature with built-in 40° and 70° F rise electric booster, self-draining pump, 55 racks/hour capacity, auto-fill, stainless steel construction, electric tank heat, NSF, UL, 1hp, ENERGY STAR®, 208v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Champion DH-2000 Specifications

PDF Spec Sheet
Manufacturer Champion
Height (in) 66.38
Width (in) 30.88
Design Standard
Type High Temp
Heat Electric
Racks per Hour 55
Door Type Lift Up
Depth (in) 26
Voltage 208/60/3
Cavity Height 17.38
Control Location Top of Unit
Specialty Options Booster Heater
Weight 300.00
Champion DH-2000 Certifications
  • UL
  • NSF
  • Energy Star
