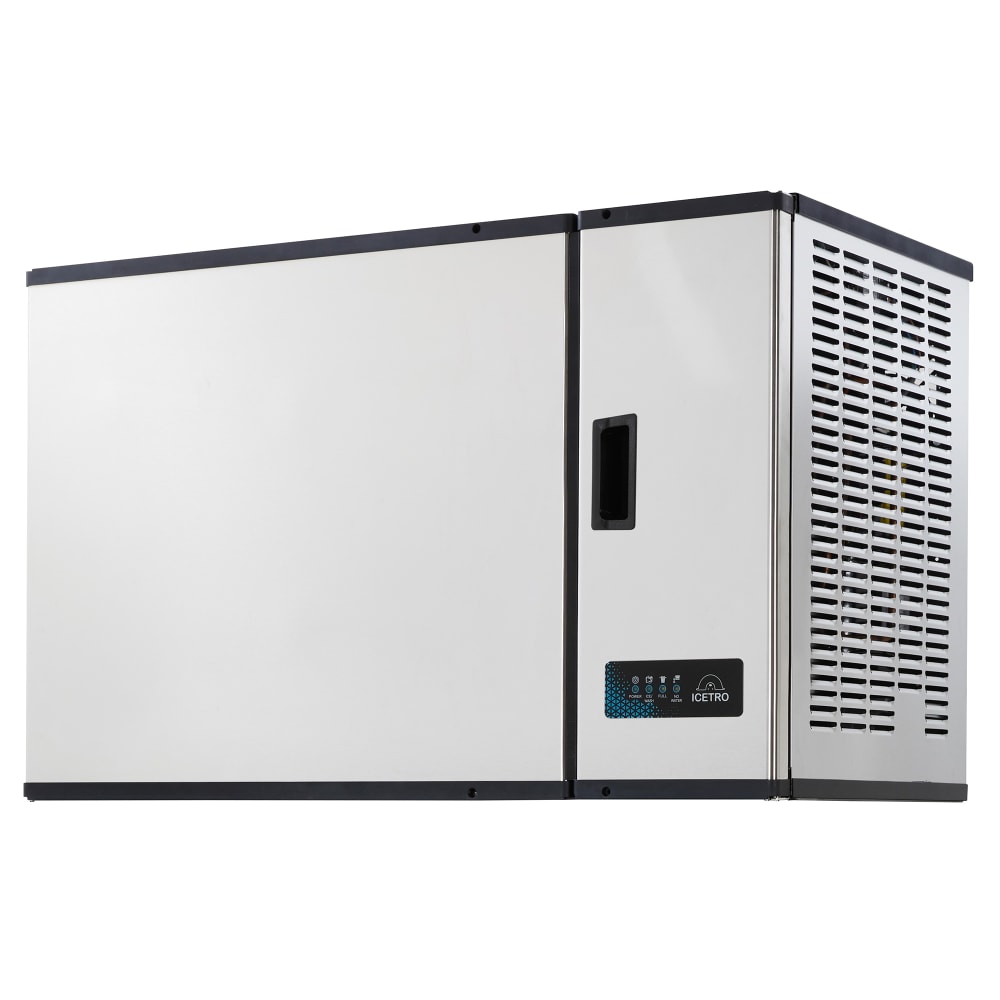

ICETRO IM-2000-AH 48" Maestro Half Cube Ice Machine Head - 2032 lb/24 hr, Air Cooled, 208-230v/1ph

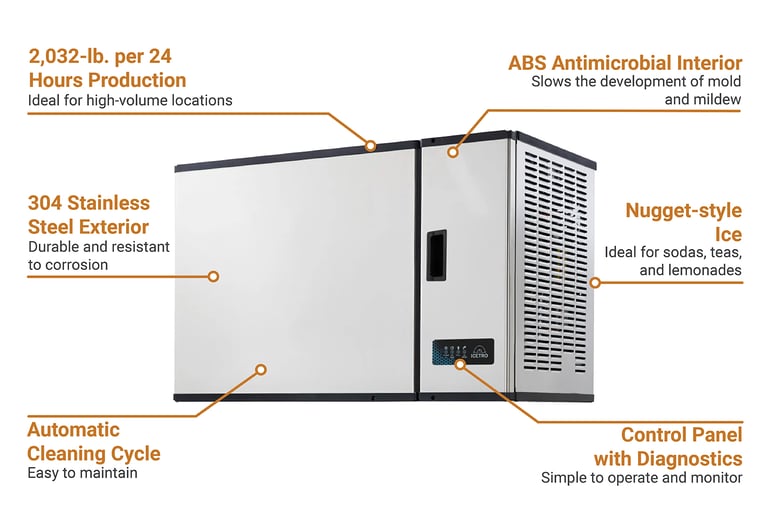

The ICETRO IM-2000-AH ice maker head features a durable 304 stainless steel exterior with an ABS antimicrobial interior that helps to slow the development of mold and mildew between regular cleanings. The unit requires an ice bin, which is sold separately to operate. It has a diagnostic panel that enables users to monitor systems and intervene as necessary. Operation actions include an automatic cleaning cycle with adjustable flush time. The condenser is self-contained and fitted with a magnetic air filter for easy replacement.

Production amount for the ICETRO IM-2000-AH ice maker head is dependent on home conditions. In ideal locations, where the ambient temperature is 70 degrees Fahrenheit and incoming water temperature is 50 degrees, it can produce 2,032 pounds of ice over a 24-hour period. This machine makes half-cube ice, which is ideal for soft-drink stations, cafeterias, or hotels. The unit uses R410a refrigerant and operates at 26,910 BTUs.

Product Details

• 2,032-lb. produced per 24 hours in ambient temperatures of 70 degrees F and incoming water temperature of 50 degrees
• 1,708-lb. produced per 24 hours in ambient temperatures of 90 degrees F and incoming water temperature of 70 degrees
• Half-cube ice
• Ice size: ³/₈ in. x 1¹/₈ in. x ⁷/₈ in.
• 304 stainless steel interior
• Air-cooled system
• Self-contained condenser
• Diagnostic control panel
• Automatic cleaning cycle
• Adjustable flush time
• ABS antimicrobial interior
• Magnetic condenser air filter
• Requires separate purchase of ice bin
• R410a refrigerant
• 26,910 BTU

Dimensions & Utilities

• 48 in. W x 24¹/₂ in. D x 30²/₅ in. H
• 4.24 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on ICETRO IM-2000-AH within the 48 contiguous states.

From The Manufacturer

Maestro Modular Ice Maker, cube-style, 48"W, air-cooled, self-contained condenser, production capacity up to 2032 lbs/24 hr at 70°/50° (1708 lbs at 90°/70°), diagnostic control panel, auto cleaning cycle, ABS antimicrobial interior, 304 stainless steel exterior, half cubes, 208-230v/60/1-ph, CE, cETLus, ETL-Sanitation, Energy Star® qualified

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor Parts

ICETRO IM-2000-AH Specifications

Documents

Spec Sheet

Warranty

Manual

Catalog
