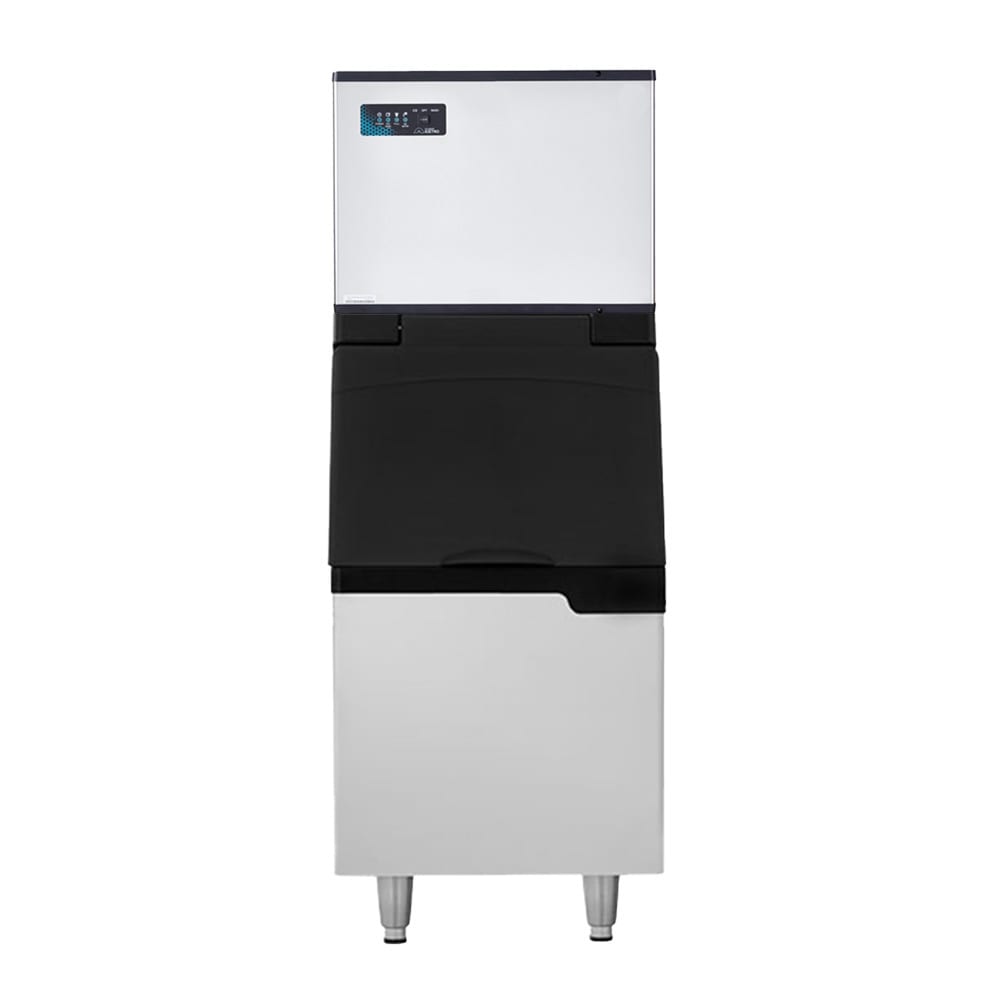

ICETRO IM-0550-AC-22/IB-026-22 508 lb Maestro Full Cube Ice Machine w/ Bin - 265 lb Storage, Air Cooled, 115v

Equipped with a heavy-duty water curtain, the ICETRO IM-0550-AC-22/IB-026-22 full cube ice machine with bin promotes smooth ice dispensing while preventing ice from spilling out of the unit. This air-cooled model produces up to 508 pounds of full-size ice cubes per day at 70 F ambient and 50 F water temperatures, meeting the needs of high-volume establishments. The automatic cleaning cycle helps reduce scale buildup, and an adjustable flush time improves ice quality by rinsing impurities from the system. A stainless steel evaporator increases durability, while the ABS antimicrobial interior helps minimize bacterial growth.

The ICETRO IM-0550-AC-22/IB-026-22 Maestro full cube ice machine with bin has a top-hinged door that provides easy access to its 265-pound ice storage bin. Constructed of 304 stainless steel, the exterior is resistant to rust and corrosion. The water distributor tube and sump can be removed without tools, streamlining cleaning and maintenance. A diagnostic control panel provides real-time system monitoring, while top and side vents optimize airflow to maintain consistent ice production. The bin features a plastic interior and stainless steel exterior to support sanitation and durability.

Product Details

• Maestro series
• Full cube ice
• 508-lb. daily production
• Air-cooled, self-contained condenser
• Heavy-duty water curtain
• Automatic cleaning cycle
• Adjustable flush time
• Diagnostic control panel
• 304 stainless steel exterior
• ABS antimicrobial interior
• Water distributor tube and sump removable without tools
• Top and side vents
• Hinged front panel
• R-404A refrigerant

Ice Bin

• 265-lb. ice storage capacity
• Top-hinged door
• Plastic interior
• Stainless steel exterior
• Adjustable feet (up to 7 ⁴/₅-in.)

Dimensions & Utilities

• Overall dimensions: 22 ⁴/₅ in. W x 34 ²/₅ in. D x 60 ⁷/₁₀ in. H
• 20 A, 6.08 kW
• 115V/60Hz/1ph, cord with NEMA 5-15P plug

*Free shipping on ICETRO IM-0550-AC-22/IB-026-22 within the 48 contiguous states.

From The Manufacturer

Maestro Modular Ice Maker, cube-style, 22"W, air-cooled, self-contained condenser, production capacity up to 508 lbs/24 hr at 70°/50° (383 lbs at 90°/70°), diagnostic control panel, auto cleaning cycle, ABS antimicrobial interior, 304 stainless steel exterior, full-size cubes, 115v/60/1-ph, NEMA 5-15P, CE, cETLus, ETL-Sanitation

Ice Bin, 22" W, approximately 265 lbs storage capacity, top-hinged door, plastic interior, stainless steel exterior, adjustable feet (up to 7.8")

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor Parts
