Moffat H8D-UC Undercounter Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 110-120v
$4,540.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v

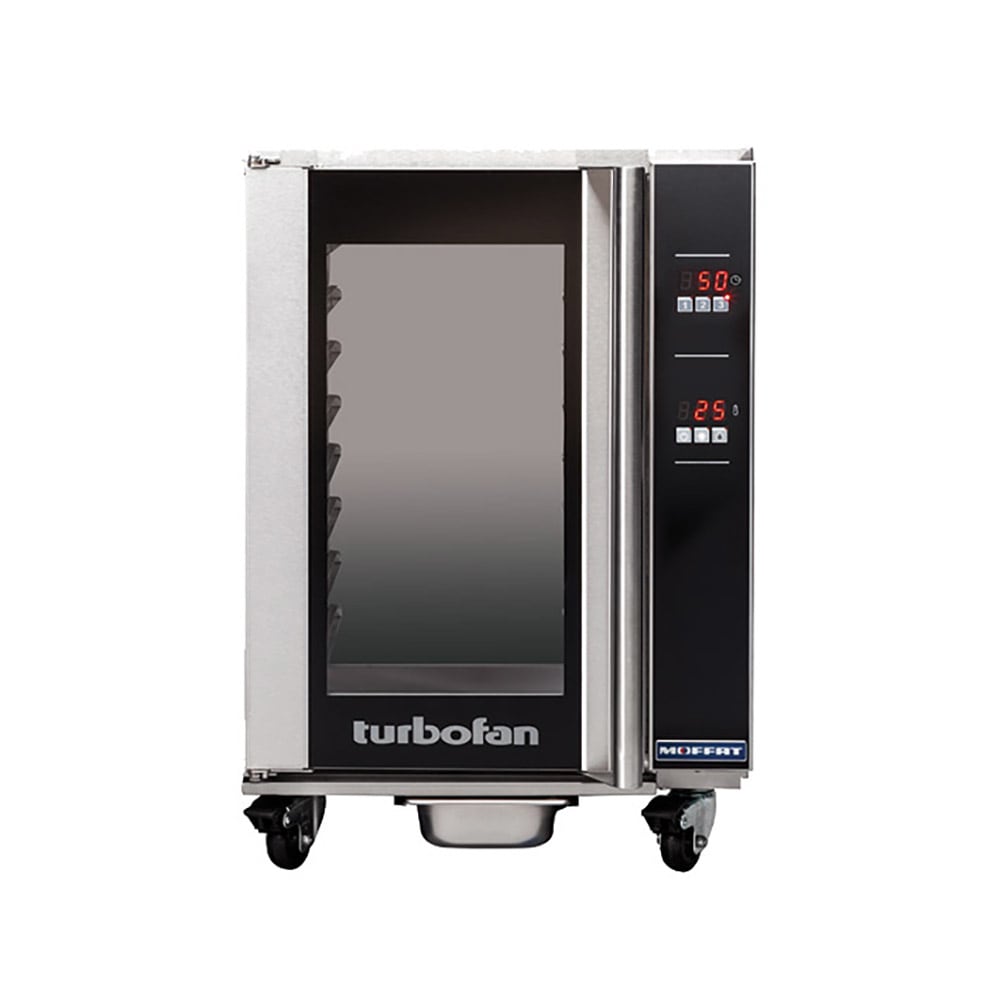

Moffat H8D-UC Description
This Moffat H8D-UC Turbofan® holding cabinet accommodates eight half-size sheet pans or eight 12-inch by 20-inch steam pans, and its stainless steel interior racks are spaced 27⁄8 inches apart. Its heating system can be set to a level between 68 and 194 degrees Fahrenheit, while a single-speed fan circulates hot air gently throughout the cabinet for even results. Temperatures can be adjusted via the electronic controller, which provides a legible digital temperature readout. To ensure product is held for the correct amount of time, operators can program the timer to produce a desired temperature for as long as 4 hours, and with countdown and count-up timer modules, users know when product is ready for serving.
Because it measures 24 inches wide by 263⁄4 inches deep by 317⁄8 inches high, the Moffat H8D-UC heated holding cabinet can be installed beneath a counter. Its interior and exterior have a durable stainless steel construction, and the unit is mounted on 21⁄2-inch casters for maneuvering and stabilization. Its reach-in configuration enables operators to retrieve and load pans directly into the unit, while the glass door provides a full view of product.
Product Details
- Undercounter, reach-in layout
- Can be used individually or installed with Turbofan E32D convection ovens
- Accommodates 8 half-size sheet pans or (8) 12-in. x 20-in. steam pans
- Stainless steel racks spaced 27⁄8 in. apart
- Temperature range: 68-194 degrees F
- Air-circulating single-speed fan
- Electronic controls: digital temperature and timer controls, digital displays, on/off key, cabinet lamp key, 3 timer keys, 4-hour timer range, countdown and count-up timer modes
- Stainless steel exterior and interior with double-skin construction
- Side-hinged glass door with stainless steel frame
- Temperature-preserving continuous door seal
- Cabinet drain to condensate pan
- (4) 21⁄2-in.-diameter casters (2 are rigid and 2 swivel and lock)

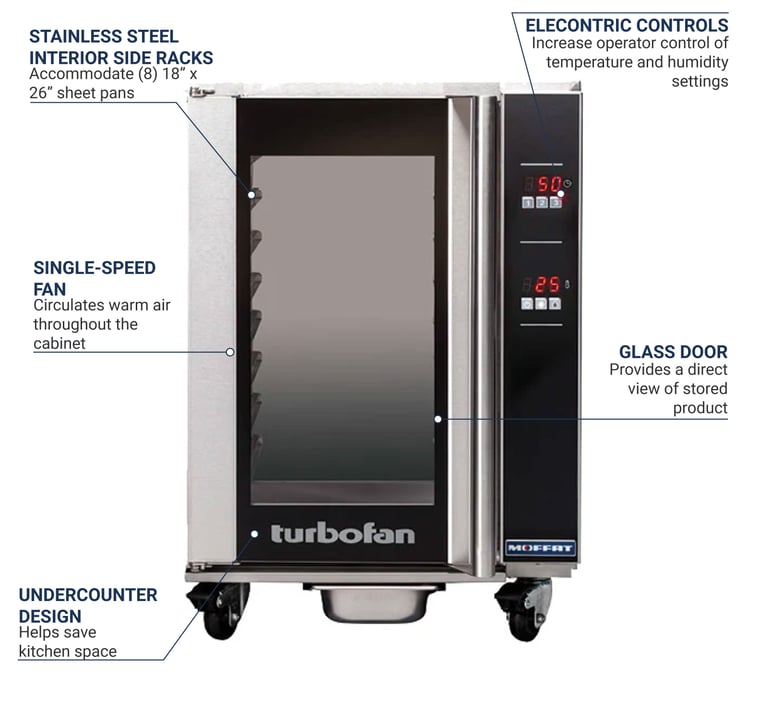

Product Features
Dimensions & Utilities
- 24 in. W x 263⁄4 in. D x 317⁄8 in. H
- 10.4 A, 1.3 kW
- 110-120 V/50-60 Hz/1 ph, fitted cordset with NEMA 5-15P plug
From The Manufacturer
Turbofan® Holding Cabinet, undercounter, capacity (8) half-size pans, 2-7/8" tray spacing, digital controls, (3) hold timers, stainless steel interior & exterior with glass door, 2-1/2" casters (2 swivel with locks), 1200 watts, cETLus, NSF
*Image may not depict product color, inclusions or accessories.
Moffat H8D-UC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Moffat |
| Application | Heat Only |
| Construction | Stainless Steel |
| Control Location | Side |
| Controls | Digital |
| Depth (in) | 26.75 |
| Door Design | Full |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 31.88 |
| Hertz | 60 |
| Hinge Configuration | Left |
| kW | 1.2 |
| Load Type | Reach In |
| NEMA | 5-15P |
| No. of Doors | 1 |
| Pan Capacity | 8 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | Turbofan® |
| Size | Undercounter |
| Slide Spacing (in) | 2.87 |
| Slide Type | Bottom Load |
| Type | Insulated |
| Voltage | 110/120 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 24 |
| Weight | 183.00 |
