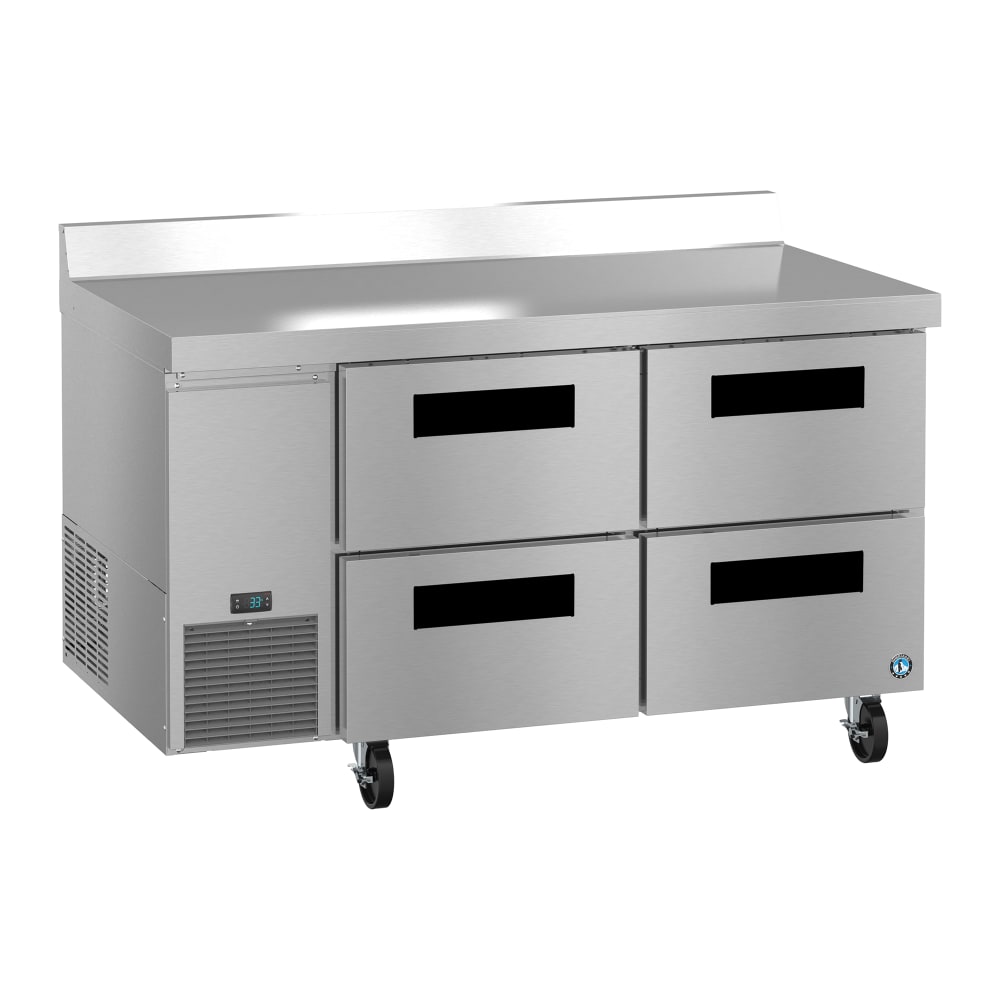

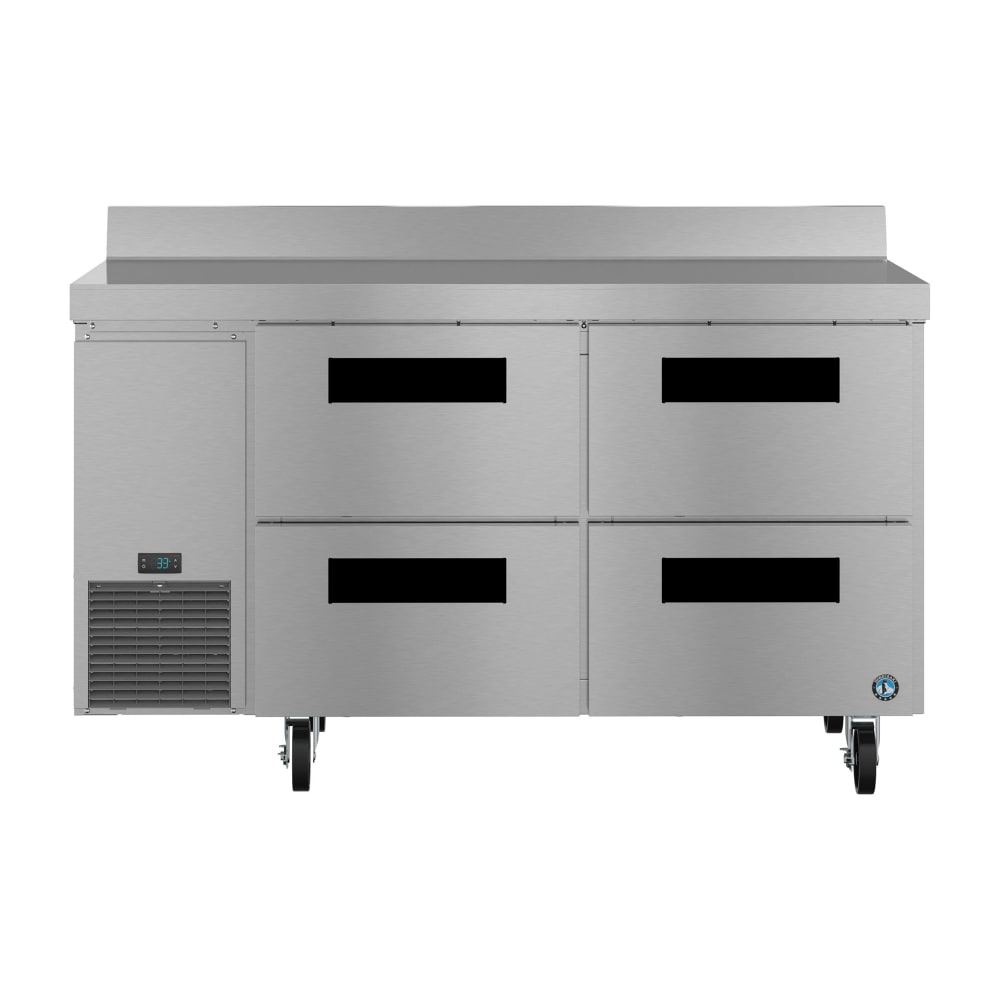

Hoshizaki WLR60B-D4 60" Steelheart Worktop Refrigerator w/ (2) Sections & (4) Drawers, 115v

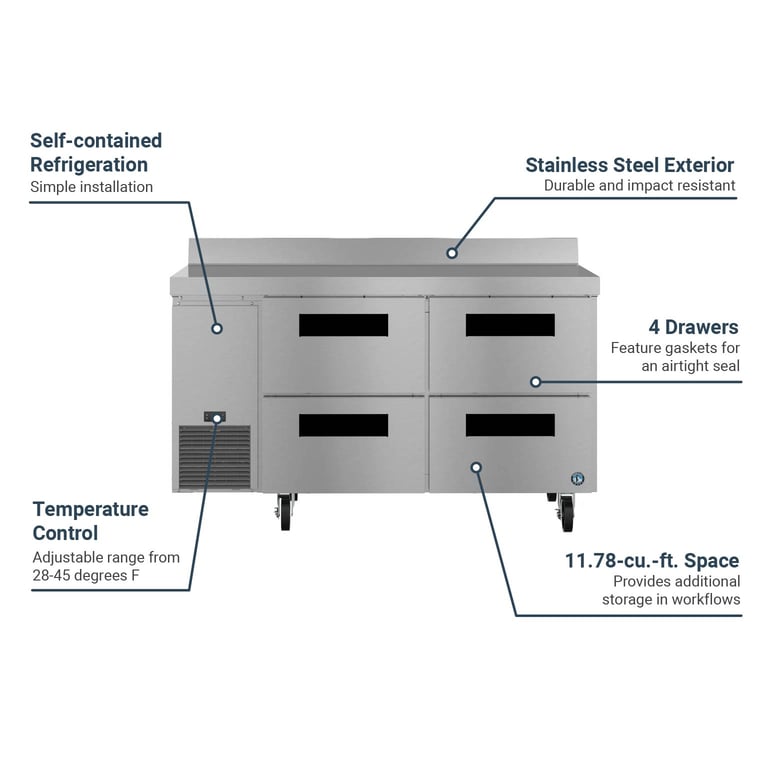

The Hoshizaki WLR60B-D4 Steelheart worktop refrigerator has four drawers; each drawer can hold one 12-inch by 10-inch by 6-inch and two fourth-size pans. The pans are sold separately by other suppliers. Due to the drawers’ 14-gauge module frames, they’re durable enough for ample product storage, and the 14-gauge drawer slides support a dynamic loading capacity of 200 pounds. The front, top, sides, and interior are made of stainless steel, and the back and bottom feature a coated steel construction. The panels are insulated with 2-inch-thick polyurethane, ensuring cabinet temperatures stay consistent. To fit various workflow configurations, it’s supported by 6-inch polyolefin stem casters.

The Hoshizaki WLR60B-D4 Steelheart worktop refrigerator is side mounted, providing ample access for service or maintenance. Via capillary tubes, this unit assists the flow of R290 hydrocarbon refrigerant. The off-cycle defrost thaws frost on integral coils, and the energy-efficient evaporation system handles excess condensate and moisture. For optimal control, the unit features an electronic controller with a temperature range from 28 and 45 degrees.

Product Details

• Steelheart series
• 17.22-cu.-ft. space
• 4 drawers
• (1) 12-in. x 10-in. x 6-in. and (2) fourth-size pans
• Pans sold separately
• 200-lb. dynamic loading capacity
• 14-ga. drawer module frames
• 14-ga. stainless steel drawer slides
• Delrin nylon rollers
• Snap-in drawer gaskets
• 1-piece extruder aluminum handle
• Stainless steel front, top, and sides
• Coated steel back and bottom
• 2-in.-thick CFC-free polyurethane foam
• 6-in. polyolefin stem casters (front locks)

Refrigeration System

• Self-contained
• Capillary tubes
• E-coated evaporator
• R290 refrigerant
• Off-cycle defrost system
• Non-electric evaporation system
• Digital temperature controls
• Temperature holding range: 28-45 degrees F

Dimensions & Utilities

• 60 in. W x 33¹/₄ in. D x 40¹/₄ in. H
• 3 A, ¹/₅ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki WLR60B-D4 within the 48 contiguous states.

From The Manufacturer

Steelheart Series Worktop Refrigerator, reach-in, two-section, 60"W, 17.22 cu. ft., self-contained side mounted refrigeration system, (4) drawers each accommodates (1) 12" x 10" x 6" deep & (2) 1/4 pans (pans by others), stainless steel interior, stainless steel exterior front, sides & top, solid hinged doors, (4) 6" stem casters (2 with brakes), hot gas condensate removal, R290 hydrocarbon refrigerant, 1/5 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

6-year Limited Parts; 5-year Labor; 7-year Compressor Parts
