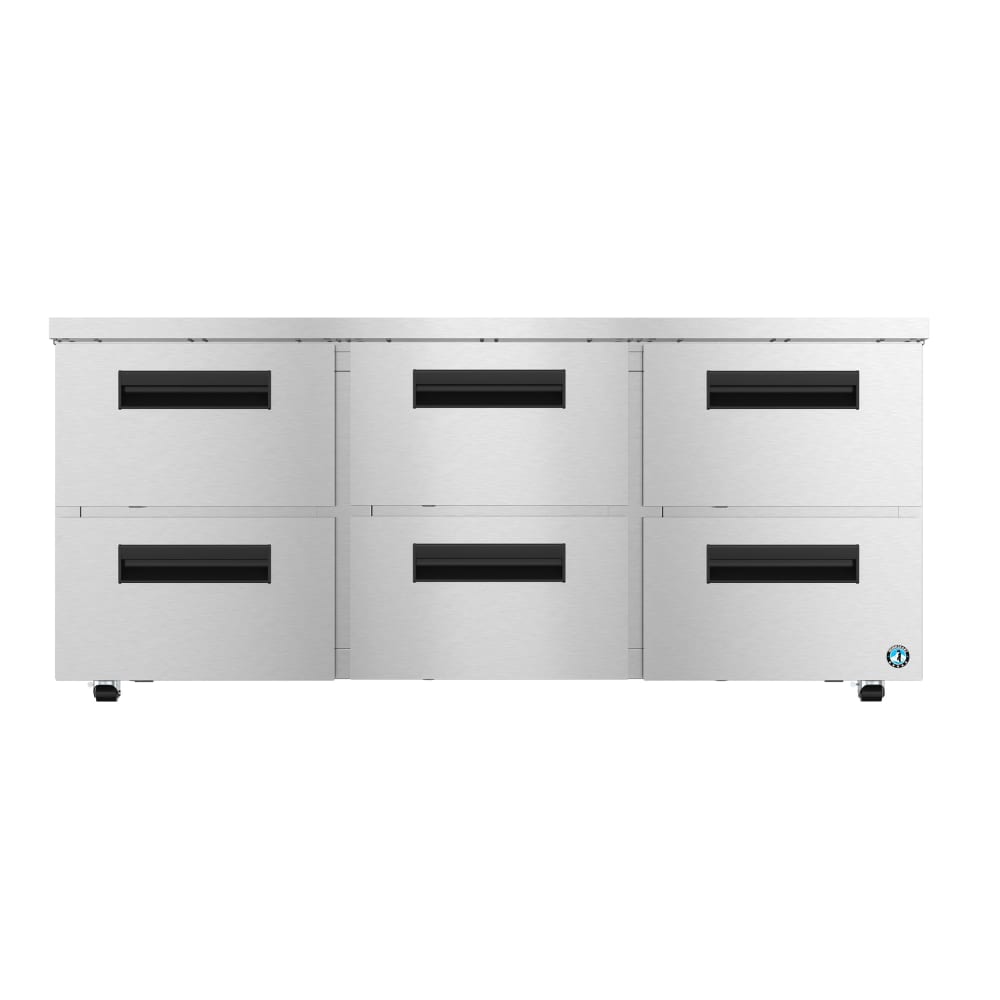

Hoshizaki UR72B-LPD6 72" Steelheart Undercounter Refrigerator w/ (3) Sections & (6) Drawers, 115v

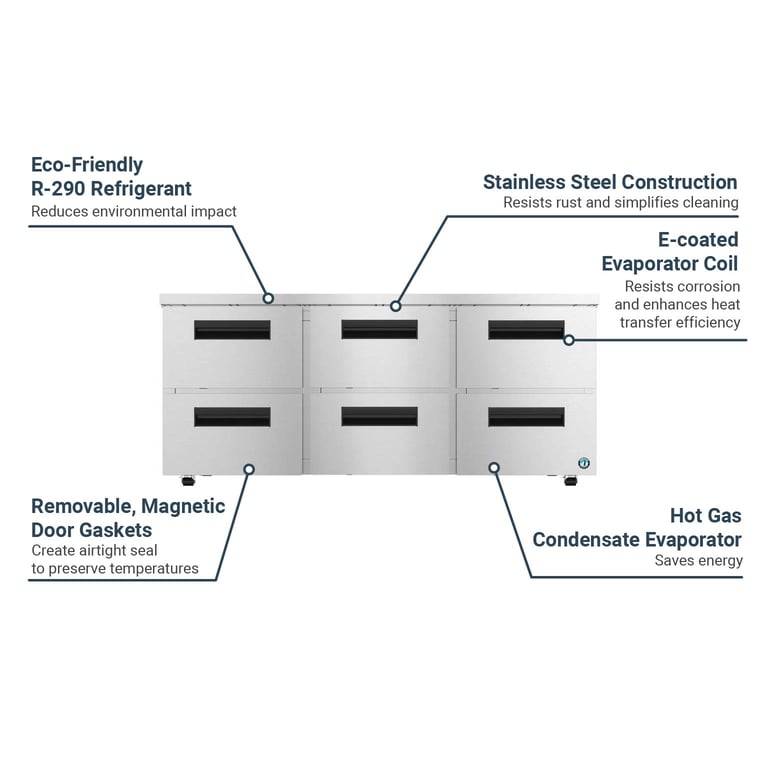

The Hoshizaki UR72B-LPD6 72-inch-wide Steelheart® undercounter refrigerator is designed for durability and accessibility in busy commercial kitchens. This unit is ADA compliant and fits beneath 34-inch-high work surfaces. It has an 18.27-cubic-foot capacity with six stainless steel drawers. The top drawers will accommodate one ¹⁄₂-size, one ¹⁄₃-size, one ¹⁄₄-size, and one ¹⁄₆-size pans, or one full-size pan positioned front-to-back and three ¹⁄₉-size pans. The bottom drawers can accommodate one ¹⁄₂-size pan and one ¹⁄₃-size pan. Each drawer can hold 6-inch-deep pans and have removable, magnetic gaskets to simplify cleaning. This unit is made of stainless steel for durability. It comes with four 2¹⁄₄-inch casters, two of which have brakes to prevent unwanted movement.

For efficient cooling, the Hoshizaki UR72B-LPD6 undercounter refrigerator has a rear-mounted, self-contained refrigeration system. It uses environmentally friendly R-290 hydrocarbon refrigerant. Its hot gas condensate evaporator is non-electric and saves energy. The off-cycle defrost system prevents ice buildup on the evaporator coil for efficient operation. The evaporator coil is e-coated for corrosion resistance and enhanced heat transfer. This unit’s cabinet and drawers are insulated with 2 inches of CFC-free, foamed-in-place polyurethane.

Product Details

• Part of the Steelheart series
• 18.27-cu.-ft. capacity
• Stainless steel construction
• 6 stainless steel drawers
• Removable, magnetic drawer gaskets
• 6 stainless steel drawers
• Drawers accommodate 6-inch-deep pans
• (4) 2¹⁄₄-inch casters (two with brakes)

Refrigeration System

• Rear mounted
• Self-contained
• R-290 hydrocarbon refrigerant
• Hot gas condensate evaporator
• Off-cycle defrost system
• E-coated evaporator coil

Dimensions & Utilities

• Overall: 72 in. W x 31 in. D x 31⁹⁄₁₀ in. H
• 15 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki UR72B-LPD6 within the 48 contiguous states.

From The Manufacturer

Undercounter Refrigerator Low Profile, with Drawers, reach-in, three-section, 72"W, 18.27 cu. ft., self-contained rear mounted refrigeration system, (6) drawers, stainless steel exterior front, sides & top, coated steel exterior back and bottom, stainless steel interior sides, back and floor with ABS top, (4) 2-1/4" casters, R290 hydrocarbon refrigerant, 10 ft. cord and plug, 1/5 HP, cord, NEMA 5-15P, ADA compliant, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

5-year Limited Labor; 6-year Limited Parts; 7-year Limited Compressor Parts

Hoshizaki UR72B-LPD6 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Catalog
