Hoshizaki UR60B-D2 60" W Undercounter Refrigerator w/ (2) Sections, (1) Door & (2) Drawers, 115v

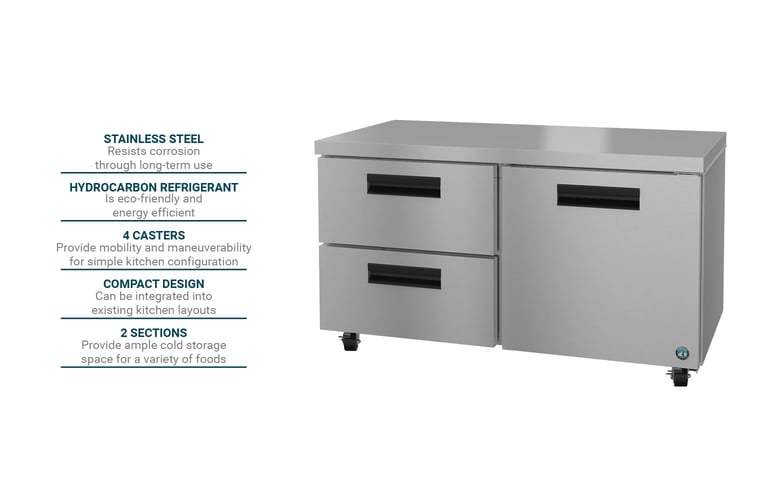

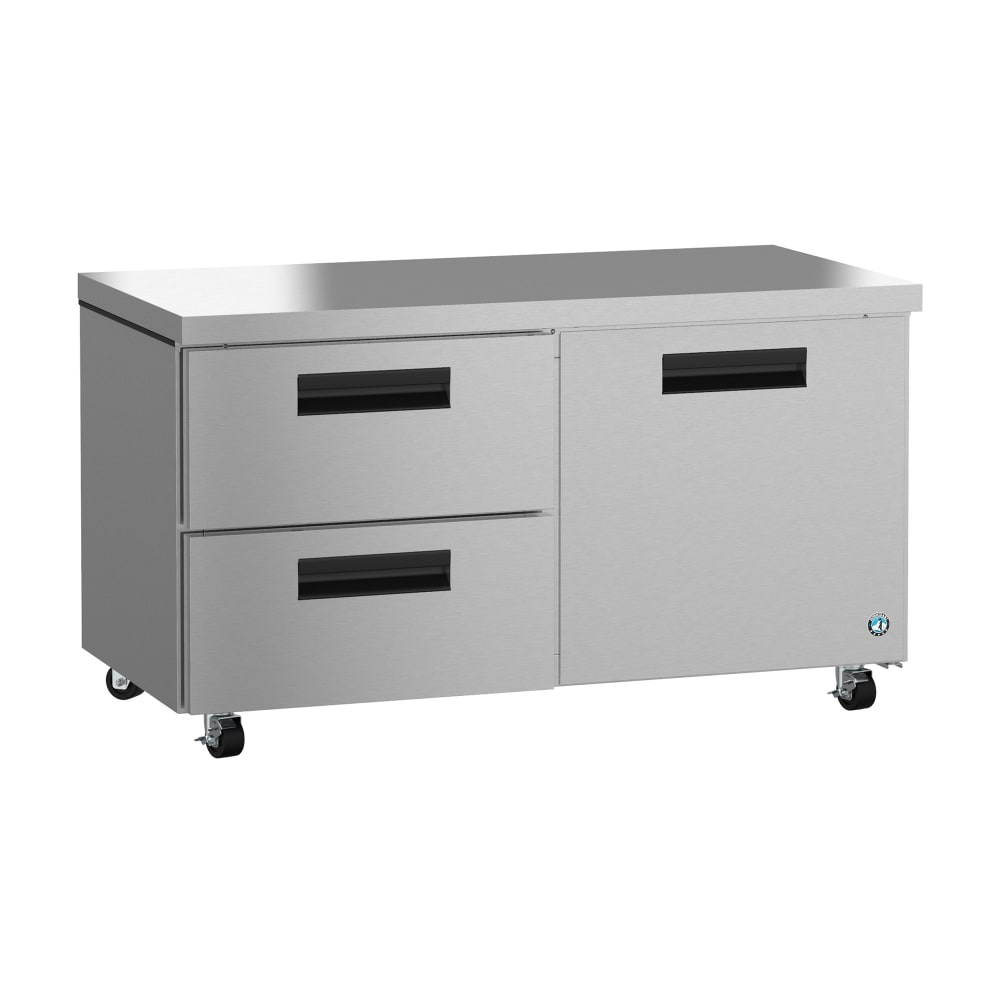

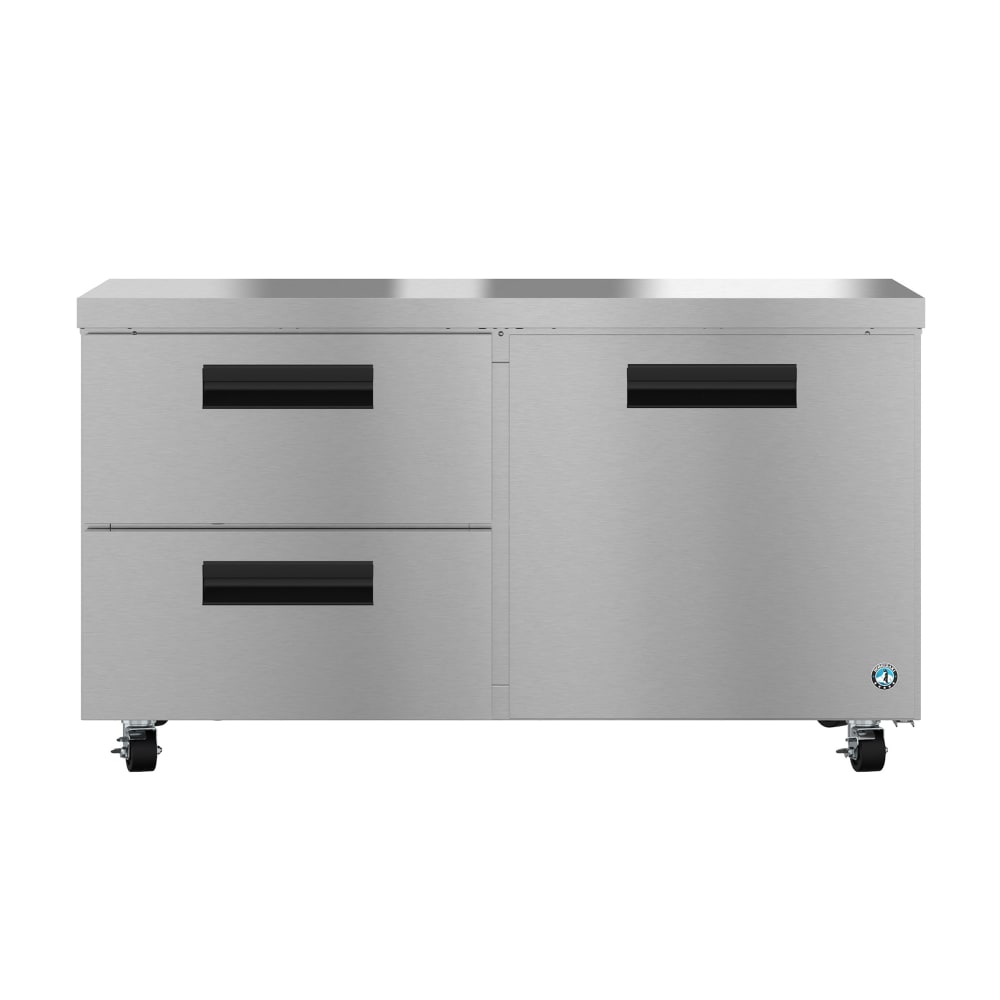

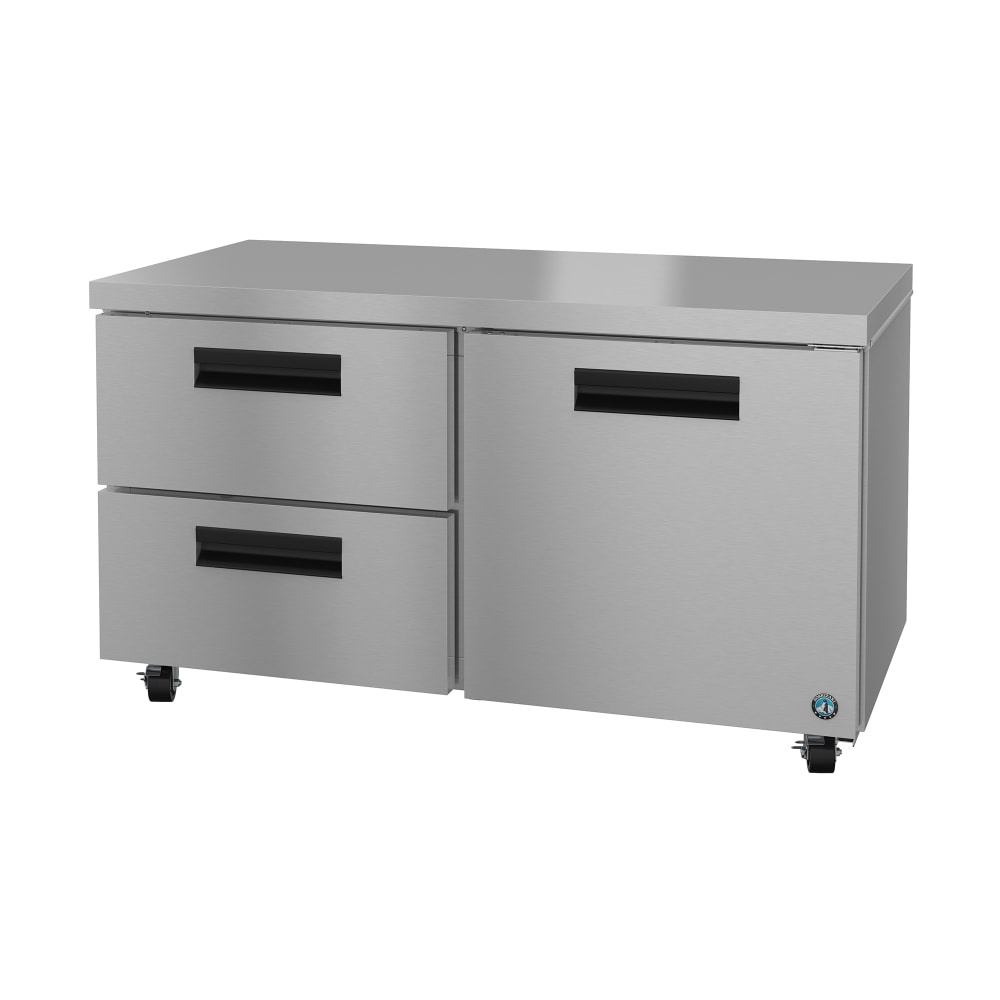

The Hoshizaki UR60B-D2 undercounter refrigerator is a two-section unit constructed of stainless steel. One section is a cabinet while the other section features two drawers for storage. This stainless steel construction is durable and corrosion resistant, intended to withstand the constant wear and tear of a commercial kitchen. The unit is made mobile by its four casters—two of which are equipped with brakes. Measuring 60 inches wide by 31 inches deep by 33³/₄ inches tall, the refrigerator is designed for placement under countertops or workstations in an existing kitchen layout.

The refrigeration system is self-contained and uses a capillary tube system to circulate R290 refrigerant, keeping internal temperatures at a set level between 32 and 52 degrees Fahrenheit. This refrigerant is eco-friendly to help reduce environmental impact, and the evaporator's coils are coated in epoxy to protect it from corrosion and extend its service life. The whole unit is insulated from outside ambient temperatures by polyurethane foam.

The Hoshizaki UR60B-D2 two-section undercounter refrigerator's internal cabinet is made of stainless steel, and the cabinet boasts a stainless steel door with a recessed aluminum handle. The cabinet is equipped with an epoxy-coated shelf measuring 27¹/₄ inches wide by 16 inches deep—it's adjustable in ¹/₂-inch increments. The second section in the unit features two drawers; the top drawer is 22¹/₂ inches deep and the bottom drawer is 14⁷/₁₀ inches deep.

Product Details

• 17¹/₂ cu. ft. interior space
• 2 sections with 1 door and 2 drawers
• Stainless steel exterior front, sides, and top

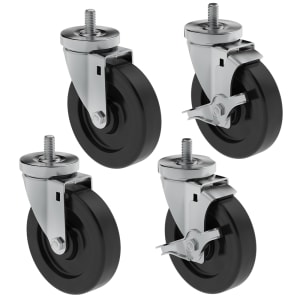

• (4) 4-in. casters (2 braking)
• Stainless steel interior sides, back, and floor
• 1 stainless steel door with recessed aluminum handle
• Magnetic door gasket
• Stepped door design protects gasket
• Spring-assisted, self-closing doors with stay-open feature
• 1 adjustable, epoxy-coated shelf
• 2 stainless steel drawers featuring recessed aluminum handles
• 16-ga. stainless steel drawer slides
• Shelf adjustable in ¹/₂-in. increments
• Easily removed magnetic drawer gasket
• Cabinet and drawers insulated with foamed-in-place polyurethane
• Top drawer capacity: 1 full-size pan and 2 fourth-size pans
• Bottom drawer capacity: 1 full-size pan

Refrigeration System

• R290 hydrocarbon refrigerant
• Ambient temperature range for installation: 45-100 degrees F
• Temperature holding range: 32-52 degrees F
• Self-contained refrigeration system
• Off-cycle defrost
• Capillary tube system
• Rear-mounted design
• Hot gas condensate removal
• Epoxy-coated evaporator coil

Dimensions & Utilities

• Overall: 60 in. W x 31 in. D x 33³/₄ in. H
• Shelf: 27¹/₄ in. W x 16 in. D
• Top drawer: 22¹/₂-in. depth
• Bottom drawer: 14⁷/₁₀-in. depth
• 3 A, ¹/₅ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki UR60B-D2 within the 48 contiguous states.

From The Manufacturer

Steelheart Series Undercounter Refrigerator, two-section, 60"W, 17.55 cu. ft., self-contained rear mounted refrigeration system, (1) solid hinged door, (1) adjustable shelf, (2) drawers, stainless steel interior, stainless steel exterior front, sides & top, (4) 4" stem casters (2 with brakes), hot gas condensate removal, R290 Hydrocarbon refrigerant, 1/5 HP, NEMA 5-15P, cETLus, ETL-Sanitation (Made to order: allow 4-6 week lead time)

*Image may not depict product color, inclusions or accessories.

6-year Parts; 5-year Labor; 7-year Compressor Parts

Hoshizaki UR60B-D2 Specifications

Documents

Spec Sheet

Warranty

Manual

Installation Guide

Brochure
