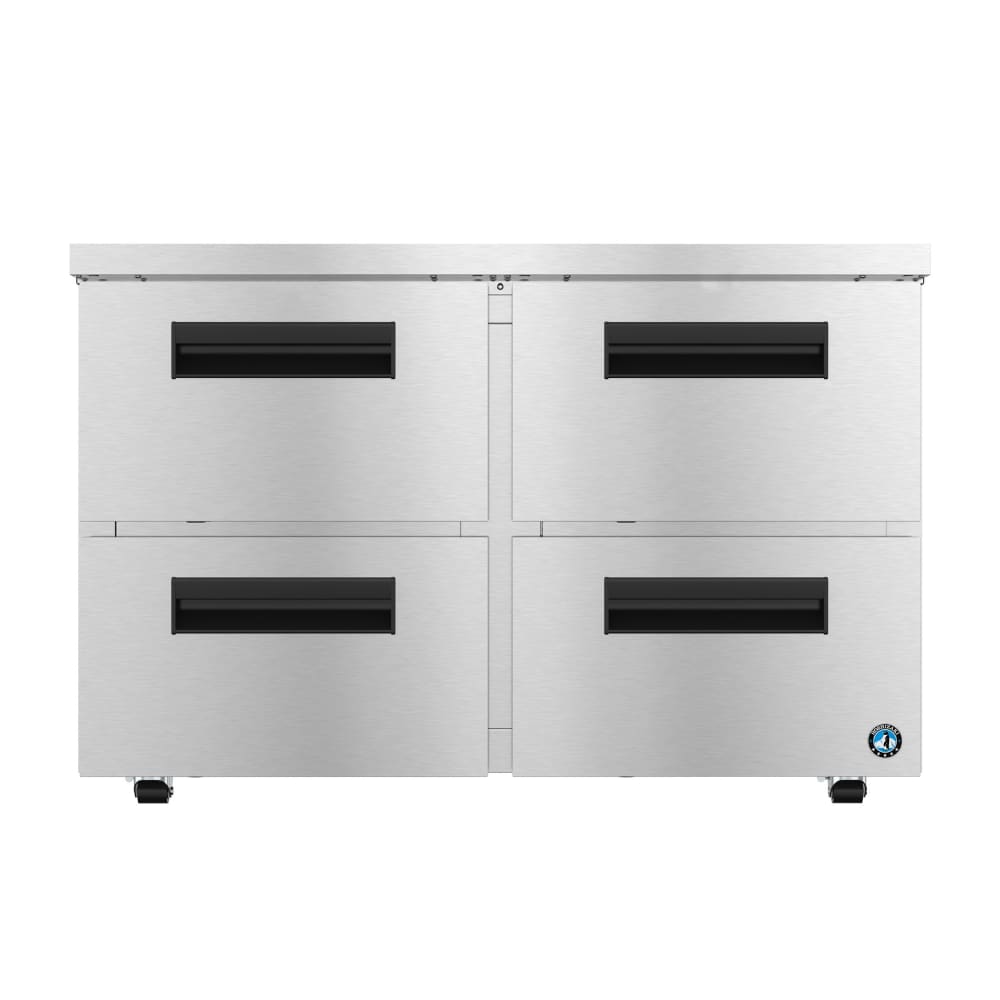

Hoshizaki UR48B-LPD4 48" Steelheart Undercounter Refrigerator w/ (2) Sections & (4) Drawers, 115v

The Hoshizaki UR48B-LPD4 48-inch Steelheart;® undercounter refrigerator is designed for ADA compliance and to fit under 34-inch-high work counters. The stainless steel exterior and interior add durability and simplify cleaning. It has a 12-cubic-foot capacity with four drawers that accommodate full- and fractional-size pans up to 6 inches deep. The removable, magnetic gaskets simplify cleaning and provide a solid seal. This unit can be moved on the four included 2¹⁄₄-inch casters, two of which have brakes.

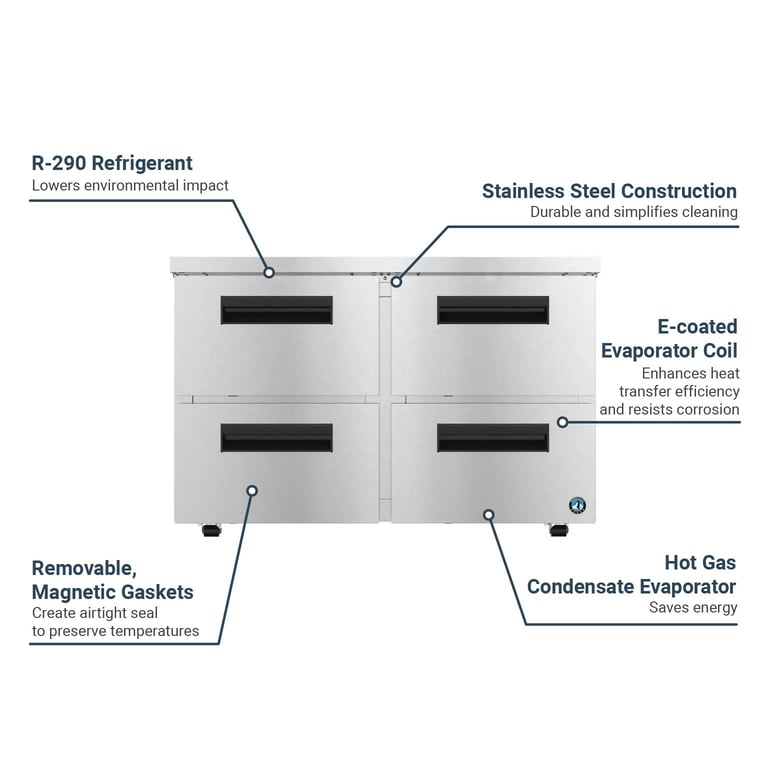

The Hoshizaki UR48B-LPD4 undercounter refrigerator is designed for efficient cooling with a low environmental impact. It utilizes environmentally friendly R-290 hydrocarbon refrigerant to maintain NSF-7 temperatures in ambient conditions up to 100 degrees Fahrenheit. The refrigeration system uses a hot gas condensate evaporator to conserve energy, and the evaporator coil is e-coated for corrosion resistance and enhanced heat transfer. This unit has 2 inches of CFC-free polyurethane insulation to maintain optimal temperatures.

Product Details

• Steelheart series
• 12-cu.-ft. capacity
• Stainless steel construction
• ADA-compliant design
• 4 slide-out drawers
• Removable, magnetic drawer gaskets
• CFC-free polyurethane insulation
• (4) 2¹⁄₄-in. casters (2 with brakes)

Refrigeration System

• Rear mounted
• R-290 hydrocarbon refrigerant
• E-coated evaporator coil
• Hot gas condensate evaporator

Dimensions & Utilities

• Overall: 48 in. W x 31 in. D x 31⁹⁄₁₀ in. H
• Drawer opening: 19¹⁄₂ in. W x 23 in. H
• Depth with drawer fully open: 51 in.
• 15 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki UR48B-LPD4 within the 48 contiguous states.

From The Manufacturer

Undercounter Low Profile Refrigerator, with Drawers, reach-in, two-section, 48"W, 12 cu. ft., self-contained rear mounted refrigeration system, (4) drawers, stainless steel exterior front, sides & top, coated steel exterior back and bottom, stainless steel interior sides, back and floor with ABS top, (4) 2-1/4" casters, R290 hydrocarbon refrigerant, 10 ft. cord and plug, 1/5 HP, cord, NEMA 5-15P, ADA compliant, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

5-year Limited Labor; 6-year Limited Parts; 7-year Limited Compressor Parts
